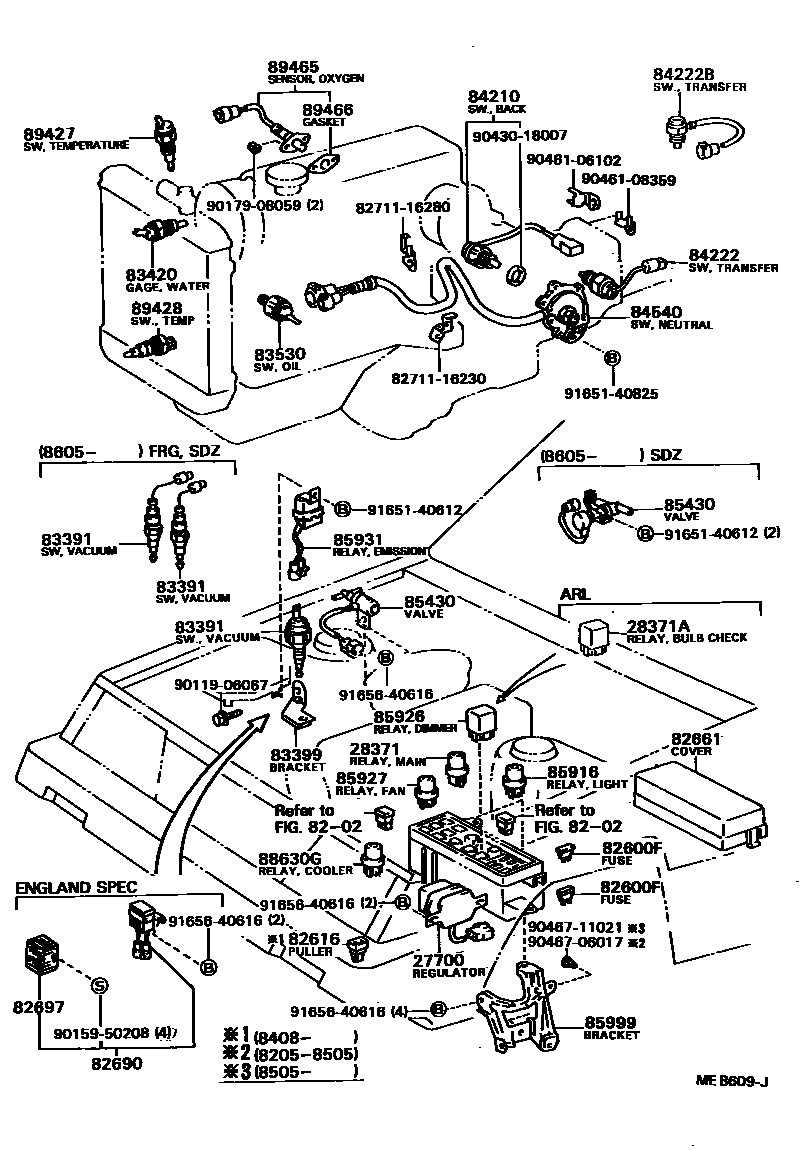

SWITCH & RELAY & COMPUTER
27700REGULATOR ASSY, GENERATOR
28371ARELAY, BULB CHECK
8202
82600FFUSE, FUSE BLOCK
30A,GREEN,30A
10A,10A
15A,15A
20A,YELLOW,20A
7.5A,7.5A
82616PULLER, FUSE
82690RESISTOR ASSY, DIM DIP LAMP
ENGLAND SPEC
82697COVER, DIM-DIP LAMP RESISTOR
ENGLAND SPEC
83391SWITCH, VACUUM
MARK=85M
MARK=200B
83399BRACKET, VACUUM SWITCH
83420GAGE ASSY, WATER TEMPERATURE SENDER
84210SWITCH ASSY, BACK-UP LAMP
84222SWITCH, TRANSFER INDICATOR, NO.1
84222BSWITCH, TRANSFER INDICATOR, NO.2
EL
84540SWITCH ASSY, NEUTRAL START
85430VALVE, OUTER VENT CONTROL
85916RELAY, LIGHT CONTROL
TAIL
HEAD
85926RELAY, HEADLAMP DIMMER
ENGLAND SPEC
85927RELAY, COOLING FAN
85931RELAY, EMISSION CONTROL
85999BRACKET, COMBINATION RELAY
88630GRELAY ASSY, COOLER
89427SWITCH, TEMPERATURE DETECT
89428SWITCH, TEMPERATURE DETECT, NO.2
89465SENSOR, OXYGEN
sub89465-29076
89466GASKET, OXYGEN SENSOR
sub89466-20020
8271116230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16230
8271116280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16280
9011906067
main90119-06067
9015950208
main90159-50208
9017908059
main90179-08059
9043018007
main90430-18007
9046106102
main90461-06102
9046108359
main90461-08359
9046706017
main90467-06017
9046711021
main90467-11021
9165140612
main91651-40612
9165140825
main91651-40825
9165640616
main91656-40616
41 parts on this diagram · 4 diagrams in section
