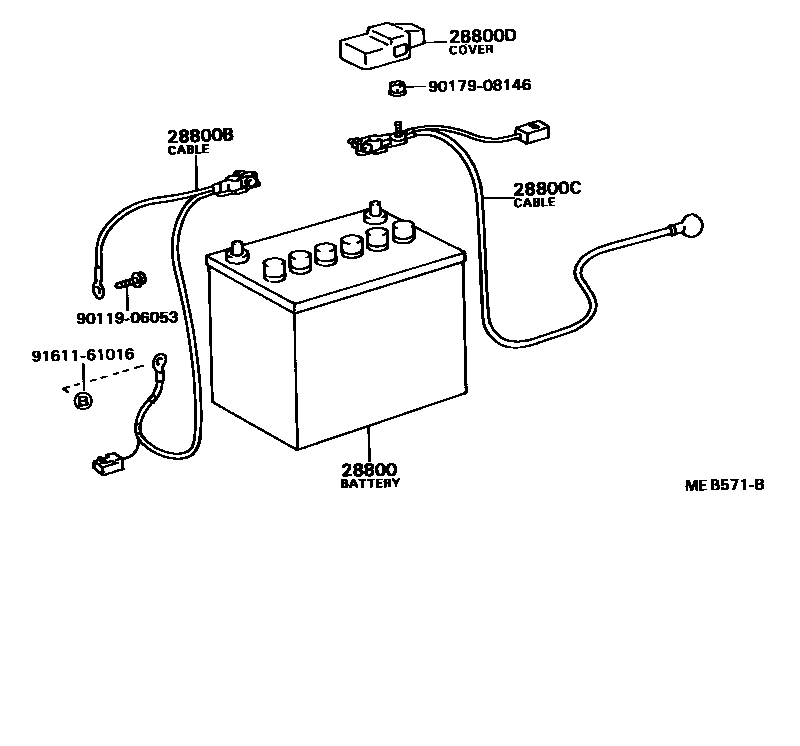

BATTERY & BATTERY CABLE

28800BATTERY

main28800-14010i2A,3A#..AL2#..EUR198205-198801

55D23R,55D23R

sub28800-15020

main28800-14030i3AC..AL25..SDZ198605-198801

50D20R,50D20R-MF

sub28800-12060

main28800-24030i2A,3A..AL20,25..GEN198205-198801

34B19R,34B19R(NS40ZA)

sub28800-24040

main28800-33071i2A,3A#..AL2#198205-198801

32C24R,32C24R(N40)

sub28800-33101

28800BCABLE, BATTERY TO GROUND

main82123-16010i2A,3A..AL20,25..GEN198205-198801

BATTERY=34B19R(NS40ZA)

main82123-16020i2A,3A#..AL2#198205-198801

BATTERY=32C24R(N40),55D23R

main82123-16020i3AC..AL25..SDZ198605-198801

BATTERY=50D20R

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-16010i2A,3A..AL20,25..GEN198205-198710

BATTERY=34B19R(NS40ZA)

main82122-16011i3A..AL25..GEN198710-198801

BATTERY=34B19R

main82122-16030i2A,3A#..AL2#..EUR198205-198801

BATTERY=32C24R(N40)

main82122-16030i2A,3A#..AL2#..EUR198205-198801

STARTER=12V 0.8KW

main82122-16040i2A,3A#..AL2#..LHD..EUR198205-198801

STARTER=12V 1.0KW

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i2A,3A#..AL2#198205-198801

9011906053

main90119-06053

9017908146

main90179-08146

9161161016

main91611-61016

7 parts on this diagram · 1 diagram in section
