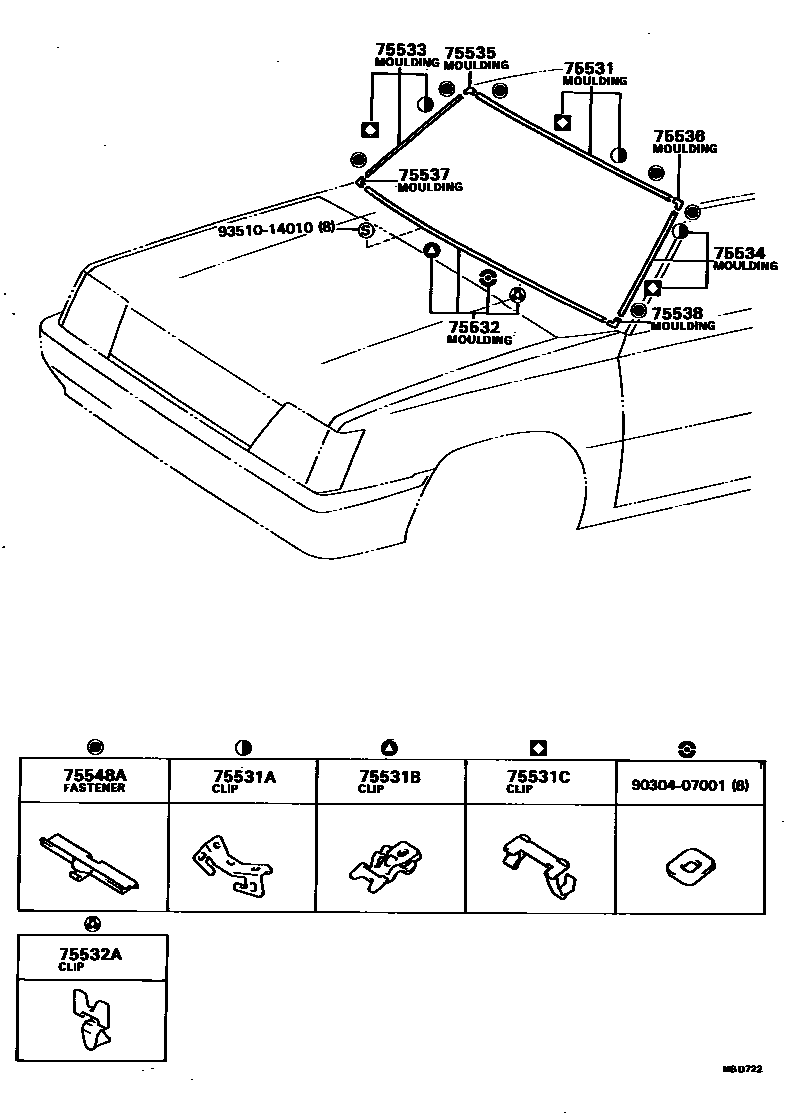

FRONT MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-16030iAL2#198205-198801

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75545-16020iAL2#198205-198801

75531BCLIP, WINDSHIELD MOULDING SET, NO.2

main75546-16020iAL2#198205-198801

75531CCLIP, WINDSHIELD MOULDING SET, NO.3

main75547-16010iAL2#..EUR,GEN198205-198306

75532MOULDING, WINDSHIELD, LOWER

main75535-16030iAL2#198205-198801

75532ACLIP, WINDSHIELD MOULDING SET

main75547-16020iAL2#198205-198801

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-16030iAL2#198205-198801

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-16030iAL2#198205-198801

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-16030iAL2#198205-198801

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75542-16030iAL2#198205-198801

75537MOULDING, WINDSHIELD CORNER, LOWER RH

main75543-16030iAL2#198205-198801

75538MOULDING, WINDSHIELD CORNER, LOWER LH

main75544-16030iAL2#198205-198801

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-12070iAL25198408-198502

sub75548-16010

main75548-16010iAL2#..EUR,GEN198205-198801

main75548-22060iAL2#198306-198408

9030407001

main90304-07001

9351014010

main93510-14010

15 parts on this diagram · 1 diagram in section
