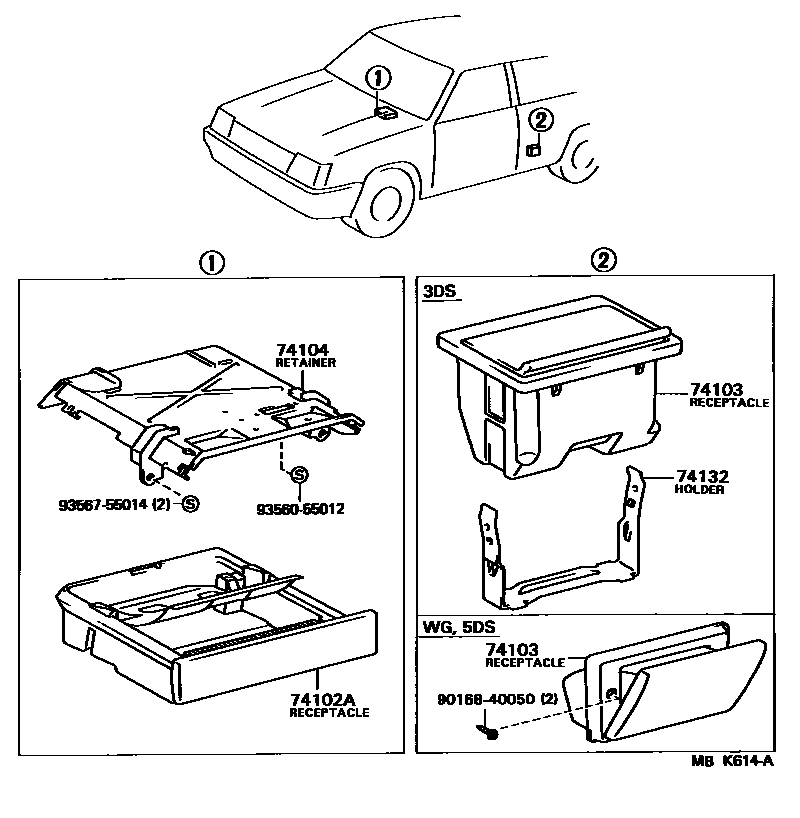

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-16020iAL2#198205-198801

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74130-14020-02iAL20,21..5DS198205-198408

DARK WINE,DARK WINE,TRIM3#

sub74130-14020

sub74130-95401

main74130-14020-11iAL25198605-198801

BLACK,BLACK,TRIM2#

sub74130-14020

sub74130-95401

main74130-14020-13iAL25;AL20,21..5DS198205-198408

GRAY,GRAY,TRIM1#

sub74130-14020

sub74130-95401

main74130-14020-23iAL25198408-198605

GRAY,GRAY,TRIM1#

sub74130-14020

sub74130-95401

main74130-14020-46iAL25;AL20,21..5DS198205-198408

BROWN,BROWN,TRIM4#

sub74130-14020

sub74130-95401

main74130-14020-50iAL25198605-198801

BEIGE,DARK BEIGE,TRIM4#

sub74130-14020

sub74130-95401

main74130-14020-55iAL25198408-198605

BEIGE,BEIGE,TRIM4#

sub74130-14020

sub74130-95401

main74130-16020-02iAL20,21..3DS..(DLX,GL)198205-198408

DARK WINE,RED/MAROON,TRIM3#

sub74130-16020

main74130-16020-03iAL20,21..3DS..(DLX,GL)198205-198408

GRAY,GRAY,TRIM1#

sub74130-16020

main74130-16020-06iAL20,21..3DS..(DLX,GL)198205-198408

BROWN,BROWN,TRIM4#

sub74130-16020

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-16020iAL20,25..RHD198205-198801

main74104-16030iAL2#..LHD198205-198801

74132HOLDER, REAR ASH RECEPTACLE

main74239-22020iAL20,21..3DS..(DLX,GL)198205-198408

9016840050

main90168-40050

9356055012

main93560-55012

9356755014

main93567-55014

7 parts on this diagram · 1 diagram in section
