SEAT BELT & CHILD RESTRAINT SEAT

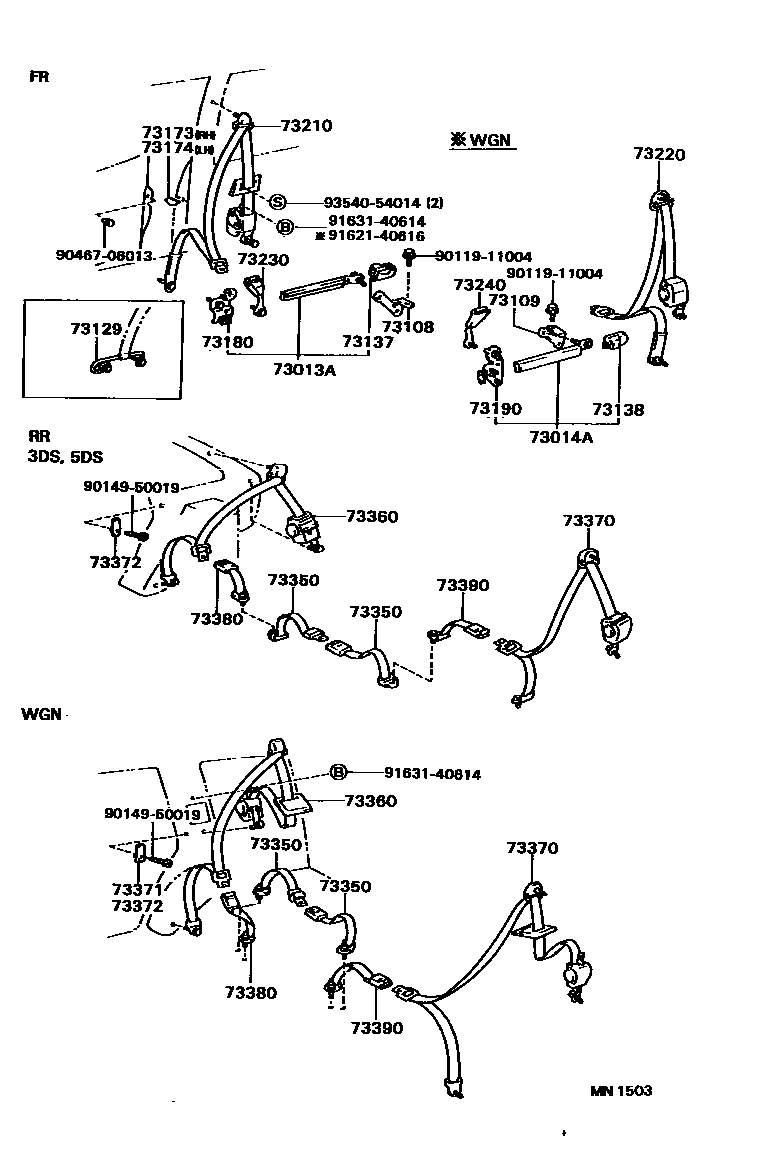

Parts diagram
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
main73013-16010-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub73013-16010
main73013-16010-03i198205-198408
GRAY,GRAY,TRIM1#
sub73013-16010
main73013-16010-06i198205-198408
BROWN,BROWN,TRIM4#
sub73013-16010
main73013-16020-01i198605-198801
BLACK,NEW BLACK,TRIM2#
sub73013-16020
main73013-16020-03i198208-198408
GRAY,GRAY,TRIM1#
sub73013-16020
main73013-16020-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73013-16020
main73013-16020-06i198208-198408
BROWN,BROWN,TRIM4#
sub73013-16020
main73013-16020-13i198408-198605
GRAY,GRAY,TRIM1#
sub73013-16020
main73013-16020-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73013-16020
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
main73014-16010-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub73014-16010
main73014-16010-03i198205-198408
GRAY,GRAY,TRIM1#
sub73014-16010
main73014-16010-06i198205-198408
BROWN,BROWN,TRIM4#
sub73014-16010
main73014-16020-01i198605-198801
BLACK,NEW BLACK,TRIM2#
sub73014-16020
main73014-16020-03i198208-198408
GRAY,GRAY,TRIM1#
sub73014-16020
main73014-16020-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73014-16020
main73014-16020-06i198208-198408
BROWN,BROWN,TRIM4#
sub73014-16020
main73014-16020-13i198408-198605
GRAY,GRAY,TRIM1#
sub73014-16020
main73014-16020-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73014-16020
73108BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, RH
main73141-16020i198205-198408
73109BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, LH
main73142-16020i198205-198408
73129BAR, FRONT SEAT BELT LAP OUTER ANCHOR
main73129-16010i198205-198408
RH
main73139-16010i198205-198408
LH
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
main73137-16010-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub73137-16010
main73137-16010-03i198205-198408
GRAY,GRAY,TRIM1#
sub73137-16010
main73137-16010-06i198205-198408
BROWN,BROWN,TRIM4#
sub73137-16010
main73137-16020-01i198605-198801
BLACK,NEW BLACK,TRIM2#
sub73137-16020
main73137-16020-03i198208-198408
GRAY,GRAY,TRIM1#
sub73137-16020
main73137-16020-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73137-16020
main73137-16020-06i198208-198408
BROWN,BROWN,TRIM4#
sub73137-16020
main73137-16020-13i198408-198605
GRAY,GRAY,TRIM1#
sub73137-16020
main73137-16020-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73137-16020
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
main73138-16010-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub73138-16010
main73138-16010-03i198205-198408
GRAY,GRAY,TRIM1#
sub73138-16010
main73138-16010-06i198205-198408
BROWN,BROWN,TRIM4#
sub73138-16010
main73138-16020-01i198605-198801
BLACK,NEW BLACK,TRIM2#
sub73138-16020
main73138-16020-03i198208-198408
GRAY,GRAY,TRIM1#
sub73138-16020
main73138-16020-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73138-16020
main73138-16020-06i198208-198408
BROWN,BROWN,TRIM4#
sub73138-16020
main73138-16020-13i198408-198605
GRAY,GRAY,TRIM1#
sub73138-16020
main73138-16020-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73138-16020
73173COVER, FRONT SEAT BELT HOLE, RH
main73173-16010i198205-198408
73174COVER, FRONT SEAT BELT HOLE, LH
main73173-16010i198205-198408
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
main73011-16010i198205-198801
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
main73012-16010i198205-198801
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-16120-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub73210-16122
main73210-16120-03i198205-198408
GRAY,GRAY,TRIM1#
sub73210-16122
main73210-16120-06i198205-198408
BROWN,BROWN,TRIM4#
sub73210-16122
main73210-16130-02i198205-198408
TOKAIRIKA,DARK WINE,RED/MAROON,TRIM3#
sub73210-16132
main73210-16130-03i198205-198408
TOKAIRIKA,GRAY,GRAY,TRIM1#
sub73210-16132
main73210-16130-06i198205-198408
TOKAIRIKA,BROWN,BROWN,TRIM4#
sub73210-16132
main73210-16140-02i198205-198408
NSK,DARK WINE,RED/MAROON,TRIM3#
sub73210-16141
main73210-16140-03i198205-198408
NSK,GRAY,GRAY,TRIM1#
sub73210-16141
main73210-16140-06i198205-198408
NSK,BROWN,BROWN,TRIM4#
sub73210-16141
main73210-16170-02i198205-198403
DARK WINE,RED/MAROON,TRIM3#
sub73210-16171
main73210-16170-03i198205-198403
GRAY,GRAY,TRIM1#
sub73210-16171
main73210-16170-06i198205-198403
BROWN,BROWN,TRIM4#
sub73210-16171
main73210-16171-02i198403-198408
DARK WINE,DARK WINE,TRIM3#
sub73210-16171
main73210-16171-03i198403-198408
GRAY,GRAY,TRIM1#
sub73210-16171
main73210-16171-06i198403-198408
BROWN,BROWN,TRIM4#
sub73210-16171
main73210-16180-02i198205-198403
SILL BAR TYPE,DARK WINE,RED/MAROON,TRIM3#
sub73210-16181
main73210-16180-03i198205-198403
SILL BAR TYPE,GRAY,GRAY,TRIM1#
sub73210-16181
main73210-16180-06i198205-198403
SILL BAR TYPE,BROWN,BROWN,TRIM4#
sub73210-16181
main73210-16181-02i198403-198408
SILL BAR TYPE,DARK WINE,DARK WINE,TRIM3#
sub73210-16181
main73210-16181-03i198403-198408
SILL BAR TYPE,GRAY,GRAY,TRIM1#
sub73210-16181
main73210-16181-06i198403-198408
SILL BAR TYPE,BROWN,BROWN,TRIM4#
sub73210-16181
main73210-16190-02i198205-198403
DARK WINE,RED/MAROON,TRIM3#
sub73210-16191
main73210-16190-03i198205-198403
GRAY,GRAY,TRIM1#
sub73210-16191
main73210-16190-06i198205-198403
BROWN,BROWN,TRIM4#
sub73210-16191
main73210-16191-02i198403-198408
DARK WINE,DARK WINE,TRIM3#
sub73210-16191
main73210-16191-03i198403-198408
GRAY,GRAY,TRIM1#
sub73210-16191
main73210-16191-06i198403-198408
BROWN,BROWN,TRIM4#
sub73210-16191
main73210-16200-02i198301-198408
DARK WINE,RED/MAROON,TRIM3#
main73210-16200-03i198301-198408
GRAY,GRAY,TRIM1#
main73210-16200-06i198301-198408
BROWN,BROWN,TRIM4#
main73210-16210-03i198308-198408
GRAY,GRAY,TRIM1#
sub73210-16210
main73210-16210-06i198308-198408
BROWN,BROWN,TRIM4#
sub73210-16210
main73210-16220-03i198408-198510
GRAY,GRAY,TRIM1#
sub73210-16221
main73210-16220-05i198408-198510
BEIGE,BEIGE,TRIM4#
sub73210-16221
main73210-16221-03i198510-198605
GRAY,GRAY,TRIM1#
sub73210-16222
main73210-16221-05i198510-198605
BEIGE,BEIGE,TRIM4#
sub73210-16222
main73210-16270-01i198605-198801
NEW ZEALAND SPEC,BLACK,BLACK,TRIM2#
sub73210-16270
main73210-16270-01i198605-198801
BLACK,BLACK,TRIM2#
sub73210-16270
main73210-16270-03i198506-198605
NEW ZEALAND SPEC,GRAY,GRAY,TRIM1#
sub73210-16270
main73210-16270-03i198408-198605
GRAY,GRAY,TRIM1#
sub73210-16270
main73210-16270-05i198506-198605
NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
sub73210-16270
main73210-16270-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73210-16270
main73210-16270-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73210-16270
main73210-16270-15i198605-198801
NEW ZEALAND SPEC,BEIGE,DARK BEIGE,TRIM4#
sub73210-16270
main73210-16280-01i198605-198801
BLACK,BLACK,TRIM2#
sub73210-16280
main73210-16280-03i198408-198605
GRAY,GRAY,TRIM1#
sub73210-16280
main73210-16280-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73210-16280
main73210-16280-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73210-16280
main73210-16360-01i198605-198801
BLACK,BLACK,TRIM2#
main73210-16360-05i198605-198801
BEIGE,BEIGE,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-16110-02i198205-198301
DARK WINE,RED/MAROON,TRIM3#
sub73220-16120
main73220-16110-03i198205-198301
GRAY,GRAY,TRIM1#
sub73220-16120
main73220-16110-06i198205-198301
BROWN,BROWN,TRIM4#
sub73220-16120
main73220-16120-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub73220-16121
main73220-16120-03i198205-198408
GRAY,GRAY,TRIM1#
sub73220-16121
main73220-16120-06i198205-198408
BROWN,BROWN,TRIM4#
sub73220-16121
main73220-16130-02i198205-198408
TOKAIRIKA,DARK WINE,RED/MAROON,TRIM3#
sub73220-16131
main73220-16130-03i198205-198408
TOKAIRIKA,GRAY,GRAY,TRIM1#
sub73220-16131
main73220-16130-06i198205-198408
TOKAIRIKA,BROWN,BROWN,TRIM4#
sub73220-16131
main73220-16140-02i198205-198408
NSK,DARK WINE,RED/MAROON,TRIM3#
sub73220-16141
main73220-16140-03i198205-198408
NSK,GRAY,GRAY,TRIM1#
sub73220-16141
main73220-16140-06i198205-198408
NSK,BROWN,BROWN,TRIM4#
sub73220-16141
main73220-16170-02i198205-198403
DARK WINE,RED/MAROON,TRIM3#
sub73220-16171
main73220-16170-03i198205-198403
GRAY,GRAY,TRIM1#
sub73220-16171
main73220-16170-06i198205-198403
BROWN,BROWN,TRIM4#
sub73220-16171
main73220-16171-02i198403-198408
DARK WINE,DARK WINE,TRIM3#
sub73220-16171
main73220-16171-03i198403-198408
GRAY,GRAY,TRIM1#
sub73220-16171
main73220-16171-06i198403-198408
BROWN,BROWN,TRIM4#
sub73220-16171
main73220-16180-02i198205-198403
SILL BAR TYPE,DARK WINE,RED/MAROON,TRIM3#
sub73220-16181
main73220-16180-03i198205-198403
SILL BAR TYPE,GRAY,GRAY,TRIM1#
sub73220-16181
main73220-16180-06i198205-198403
SILL BAR TYPE,BROWN,BROWN,TRIM4#
sub73220-16181
main73220-16181-02i198403-198408
SILL BAR TYPE,DARK WINE,DARK WINE,TRIM3#
sub73220-16181
main73220-16181-03i198403-198408
SILL BAR TYPE,GRAY,GRAY,TRIM1#
sub73220-16181
main73220-16181-06i198403-198408
SILL BAR TYPE,BROWN,BROWN,TRIM4#
sub73220-16181
main73220-16190-02i198205-198403
DARK WINE,RED/MAROON,TRIM3#
sub73220-16191
main73220-16190-03i198205-198403
GRAY,GRAY,TRIM1#
sub73220-16191
main73220-16190-06i198205-198403
BROWN,BROWN,TRIM4#
sub73220-16191
main73220-16191-02i198403-198408
DARK WINE,DARK WINE,TRIM3#
sub73220-16191
main73220-16191-03i198403-198605
GRAY,GRAY,TRIM1#
sub73220-16191
main73220-16191-06i198403-198605
BROWN,BROWN,TRIM4#
sub73220-16191
main73220-16200-02i198301-198408
DARK WINE,RED/MAROON,TRIM3#
main73220-16200-03i198301-198408
GRAY,GRAY,TRIM1#
main73220-16200-06i198301-198408
BROWN,BROWN,TRIM4#
main73220-16210-03i198308-198408
GRAY,GRAY,TRIM1#
sub73220-16210
main73220-16210-06i198308-198408
BROWN,BROWN,TRIM4#
sub73220-16210
main73220-16220-03i198408-198510
GRAY,GRAY,TRIM1#
sub73220-16221
main73220-16220-05i198408-198510
BEIGE,BEIGE,TRIM4#
sub73220-16221
main73220-16221-03i198510-198605
GRAY,GRAY,TRIM1#
sub73220-16222
main73220-16221-05i198510-198605
BEIGE,BEIGE,TRIM4#
sub73220-16222
main73220-16222-01i198605-198801
BLACK,BLACK,TRIM2#
sub73220-16222
main73220-16222-05i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73220-16222
main73220-16270-01i198605-198801
NEW ZEALAND SPEC,BLACK,BLACK,TRIM2#
main73220-16270-01i198605-198801
BLACK,BLACK,TRIM2#
main73220-16270-03i198506-198605
NEW ZEALAND SPEC,GRAY,GRAY,TRIM1#
main73220-16270-03i198408-198605
GRAY,GRAY,TRIM1#
main73220-16270-05i198506-198605
NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
main73220-16270-05i198408-198605
BEIGE,BEIGE,TRIM4#
main73220-16270-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
main73220-16270-15i198605-198801
NEW ZEALAND SPEC,BEIGE,DARK BEIGE,TRIM4#
main73220-16280-01i198605-198801
BLACK,BLACK,TRIM2#
sub73220-16280
main73220-16280-03i198408-198605
GRAY,GRAY,TRIM1#
sub73220-16280
main73220-16280-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73220-16280
main73220-16280-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73220-16280
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-16040-02i198205-198408
TOKAIRIKA,DARK WINE,RED/MAROON,TRIM3#
sub73230-16041
main73230-16040-03i198205-198408
TOKAIRIKA,GRAY,GRAY,TRIM1#
sub73230-16041
main73230-16040-06i198205-198408
TOKAIRIKA,BROWN,BROWN,TRIM4#
sub73230-16041
main73230-16050-02i198205-198408
NSK,DARK WINE,RED/MAROON,TRIM3#
main73230-16050-03i198205-198408
NSK,GRAY,GRAY,TRIM1#
main73230-16050-06i198205-198408
NSK,BROWN,BROWN,TRIM4#
main73230-16070-02i198205-198403
DARK WINE,RED/MAROON,TRIM3#
sub73230-16071
main73230-16070-03i198205-198403
GRAY,GRAY,TRIM1#
sub73230-16071
main73230-16070-06i198205-198403
BROWN,BROWN,TRIM4#
sub73230-16071
main73230-16071-02i198403-198408
DARK WINE,DARK WINE,TRIM3#
sub73230-16071
main73230-16071-03i198403-198408
GRAY,GRAY,TRIM1#
sub73230-16071
main73230-16071-06i198403-198408
BROWN,BROWN,TRIM4#
sub73230-16071
main73230-16080-03i198208-198408
GRAY,GRAY,TRIM1#
sub73230-16081
main73230-16080-06i198208-198408
BROWN,BROWN,TRIM4#
sub73230-16081
main73230-16100-03i198308-198408
GRAY,GRAY,TRIM1#
sub73230-16100
main73230-16100-06i198308-198408
BROWN,BROWN,TRIM4#
sub73230-16100
main73230-16140-01i198605-198801
BLACK,BLACK,TRIM2#
sub73230-12330
sub73230-16140
main73230-16140-03i198408-198605
GRAY,GRAY,TRIM1#
sub73230-12330
sub73230-16140
main73230-16140-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73230-12330
sub73230-16140
main73230-16140-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73230-12330
sub73230-16140
main73230-16160-01i198605-198801
NEW ZEALAND SPEC,BLACK,BLACK,TRIM2#
sub73230-16160
main73230-16160-01i198605-198801
BLACK,BLACK,TRIM2#
sub73230-16160
main73230-16160-03i198506-198605
NEW ZEALAND SPEC,GRAY,GRAY,TRIM1#
sub73230-16160
main73230-16160-03i198408-198605
GRAY,GRAY,TRIM1#
sub73230-16160
main73230-16160-05i198506-198605
NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
sub73230-16160
main73230-16160-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73230-16160
main73230-16160-15i198605-198801
NEW ZEALAND SPEC,BEIGE,DARK BEIGE,TRIM4#
sub73230-16160
main73230-16160-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73230-16160
main73230-16170-03i198408-198506
GRAY,GRAY,TRIM1#
sub73230-16171
main73230-16170-05i198408-198506
BEIGE,BEIGE,TRIM4#
sub73230-16171
main73230-16171-01i198605-198801
BLACK,BLACK,TRIM2#
sub73230-16171
main73230-16171-03i198506-198605
GRAY,GRAY,TRIM1#
sub73230-16171
main73230-16171-05i198506-198605
BEIGE,BEIGE,TRIM4#
sub73230-16171
main73230-16171-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73230-16171
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-16040-02i198205-198408
TOKAIRIKA,DARK WINE,RED/MAROON,TRIM3#
sub73230-16041
main73230-16040-03i198205-198408
TOKAIRIKA,GRAY,GRAY,TRIM1#
sub73230-16041
main73230-16040-06i198205-198408
TOKAIRIKA,BROWN,BROWN,TRIM4#
sub73230-16041
main73230-16050-02i198205-198408
NSK,DARK WINE,RED/MAROON,TRIM3#
main73230-16050-03i198205-198408
NSK,GRAY,GRAY,TRIM1#
main73230-16050-06i198205-198408
NSK,BROWN,BROWN,TRIM4#
main73230-16070-02i198205-198403
DARK WINE,RED/MAROON,TRIM3#
sub73230-16071
main73230-16070-03i198205-198403
GRAY,GRAY,TRIM1#
sub73230-16071
main73230-16070-06i198205-198403
BROWN,BROWN,TRIM4#
sub73230-16071
main73230-16071-02i198403-198408
DARK WINE,DARK WINE,TRIM3#
sub73230-16071
main73230-16071-03i198403-198408
GRAY,GRAY,TRIM1#
sub73230-16071
main73230-16071-06i198403-198408
BROWN,BROWN,TRIM4#
sub73230-16071
main73230-16080-03i198208-198408
GRAY,GRAY,TRIM1#
sub73230-16081
main73230-16080-06i198208-198408
BROWN,BROWN,TRIM4#
sub73230-16081
main73230-16100-03i198308-198408
GRAY,GRAY,TRIM1#
sub73230-16100
main73230-16100-06i198308-198408
BROWN,BROWN,TRIM4#
sub73230-16100
main73230-16140-01i198605-198801
BLACK,BLACK,TRIM2#
sub73230-12330
sub73230-16140
main73230-16140-03i198408-198605
GRAY,GRAY,TRIM1#
sub73230-12330
sub73230-16140
main73230-16140-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73230-12330
sub73230-16140
main73230-16140-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73230-12330
sub73230-16140
main73230-16160-01i198605-198801
BLACK,BLACK,TRIM2#
sub73230-16160
main73230-16160-01i198605-198801
NEW ZEALAND SPEC,BLACK,BLACK,TRIM2#
sub73230-16160
main73230-16160-03i198408-198605
GRAY,GRAY,TRIM1#
sub73230-16160
main73230-16160-03i198506-198605
NEW ZEALAND SPEC,GRAY,GRAY,TRIM1#
sub73230-16160
main73230-16160-05i198506-198605
NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
sub73230-16160
main73230-16160-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73230-16160
main73230-16160-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73230-16160
main73230-16160-15i198605-198801
NEW ZEALAND SPEC,BEIGE,DARK BEIGE,TRIM4#
sub73230-16160
main73230-16170-03i198408-198506
GRAY,GRAY,TRIM1#
sub73230-16171
main73230-16170-05i198408-198506
BEIGE,BEIGE,TRIM4#
sub73230-16171
main73230-16171-01i198605-198801
BLACK,BLACK,TRIM2#
sub73230-16171
main73230-16171-03i198506-198605
GRAY,GRAY,TRIM1#
sub73230-16171
main73230-16171-05i198506-198605
BEIGE,BEIGE,TRIM4#
sub73230-16171
main73230-16171-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73230-16171
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-16030-02i198205-198403
DARK WINE,RED/MAROON,TRIM3#
sub73350-16031
main73350-16030-03i198205-198403
GRAY,GRAY,TRIM1#
sub73350-16031
main73350-16030-06i198205-198403
BROWN,BROWN,TRIM4#
sub73350-16031
main73350-16031-02i198403-198408
DARK WINE,DARK WINE,TRIM3#
sub73350-16031
main73350-16031-03i198403-198408
GRAY,GRAY,TRIM1#
sub73350-16031
main73350-16031-06i198403-198408
BROWN,BROWN,TRIM4#
sub73350-16031
main73350-16040-03i198208-198403
GRAY,GRAY,TRIM1#
sub73350-16041
main73350-16040-06i198208-198403
BROWN,BROWN,TRIM4#
sub73350-16041
main73350-16041-03i198403-198408
GRAY,GRAY,TRIM1#
sub73350-16041
main73350-16041-06i198403-198408
BROWN,BROWN,TRIM4#
sub73350-16041
main73350-16050-03i198308-198408
GRAY,GRAY,TRIM1#
sub73350-16050
main73350-16050-06i198308-198408
BROWN,BROWN,TRIM4#
sub73350-16050
main73350-16090-01i198605-198801
BLACK,BLACK,TRIM2#
main73350-16090-03i198408-198605
GRAY,GRAY,TRIM1#
main73350-16090-03i198506-198605
NEW ZEALAND SPEC,GRAY,GRAY,TRIM1#
main73350-16090-05i198408-198605
BEIGE,BEIGE,TRIM4#
main73350-16090-05i198506-198605
NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
main73350-16090-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
main73350-16100-01i198605-198801
BLACK,BLACK,TRIM2#
sub73350-16100
main73350-16100-03i198408-198605
GRAY,GRAY,TRIM1#
sub73350-16100
main73350-16100-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73350-16100
main73350-16100-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73350-16100
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-16020-02i198205-198403
DARK WINE,RED/MAROON,TRIM3#
sub73360-16021
main73360-16020-03i198205-198403
GRAY,GRAY,TRIM1#
sub73360-16021
main73360-16020-06i198205-198403
BROWN,BROWN,TRIM4#
sub73360-16021
main73360-16021-02i198403-198408
DARK WINE,DARK WINE,TRIM3#
sub73360-16021
main73360-16021-03i198403-198408
GRAY,GRAY,TRIM1#
sub73360-16021
main73360-16021-06i198403-198408
BROWN,BROWN,TRIM4#
sub73360-16021
main73360-16030-03i198208-198403
GRAY,GRAY,TRIM1#
sub73360-16031
main73360-16030-06i198208-198403
BROWN,BROWN,TRIM4#
sub73360-16031
main73360-16031-03i198403-198408
GRAY,GRAY,TRIM1#
sub73360-16031
main73360-16031-06i198403-198408
BROWN,BROWN,TRIM4#
sub73360-16031
main73360-16060-01i198605-198801
BLACK,BLACK,TRIM2#
sub73360-16060
main73360-16060-03i198408-198605
GRAY,GRAY,TRIM1#
sub73360-16060
main73360-16060-03i198506-198605
NEW ZEALAND SPEC,GRAY,GRAY,TRIM1#
sub73360-16060
main73360-16060-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73360-16060
main73360-16060-05i198506-198605
NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
sub73360-16060
main73360-16060-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73360-16060
main73360-16070-01i198605-198801
BLACK,BLACK,TRIM2#
sub73360-16070
main73360-16070-03i198408-198605
GRAY,GRAY,TRIM1#
sub73360-16070
main73360-16070-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73360-16070
main73360-16070-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73360-16070
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-16010-02i198205-198403
DARK WINE,RED/MAROON,TRIM3#
sub73370-16011
main73370-16010-03i198205-198403
GRAY,GRAY,TRIM1#
sub73370-16011
main73370-16010-06i198205-198403
BROWN,BROWN,TRIM4#
sub73370-16011
main73370-16011-02i198403-198408
DARK WINE,DARK WINE,TRIM3#
sub73370-16011
main73370-16011-03i198403-198408
GRAY,GRAY,TRIM1#
sub73370-16011
main73370-16011-06i198403-198408
BROWN,BROWN,TRIM4#
sub73370-16011
main73370-16020-03i198208-198403
GRAY,GRAY,TRIM1#
sub73370-16021
main73370-16020-06i198208-198403
BROWN,BROWN,TRIM4#
sub73370-16021
main73370-16021-03i198403-198408
GRAY,GRAY,TRIM1#
sub73370-16021
main73370-16021-06i198403-198408
BROWN,BROWN,TRIM4#
sub73370-16021
main73370-16050-01i198605-198801
BLACK,BLACK,TRIM2#
sub73370-16050
main73370-16050-03i198506-198605
NEW ZEALAND SPEC,GRAY,GRAY,TRIM1#
sub73370-16050
main73370-16050-03i198408-198605
GRAY,GRAY,TRIM1#
sub73370-16050
main73370-16050-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73370-16050
main73370-16050-05i198506-198605
NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
sub73370-16050
main73370-16050-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73370-16050
main73370-16060-01i198605-198801
BLACK,BLACK,TRIM2#
sub73370-16060
main73370-16060-03i198408-198605
GRAY,GRAY,TRIM1#
sub73370-16060
main73370-16060-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73370-16060
main73370-16060-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73370-16060
73371HANGER, REAR SEAT SHOULDER BELT, RH
main73371-16010-08i198205-198408
IVORY,IVORY,TRIM1#,3#,4#
sub73371-16010
main73371-16020-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub73371-16020
main73371-16020-03i198205-198408
GRAY,GRAY,TRIM1#
sub73371-16020
main73371-16020-06i198205-198408
BROWN,BROWN,TRIM4#
sub73371-16020
main73371-16020-08i198408-198801
IVORY,IVORY,TRIM1#,2#,4#
sub73371-16020
main73371-16020-08i198208-198408
IVORY,IVORY,TRIM1#,3#,4#
sub73371-16020
73372HANGER, REAR SEAT SHOULDER BELT, LH
main73371-16010-08i198205-198408
IVORY,IVORY,TRIM1#,3#,4#
sub73371-16010
main73371-16020-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub73371-16020
main73371-16020-03i198205-198408
GRAY,GRAY,TRIM1#
sub73371-16020
main73371-16020-06i198205-198408
BROWN,BROWN,TRIM4#
sub73371-16020
main73371-16020-08i198208-198408
IVORY,IVORY,TRIM1#,3#,4#
sub73371-16020
main73371-16020-08i198408-198801
IVORY,IVORY,TRIM1#,2#,4#
sub73371-16020
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-16020-02i198205-198403
DARK WINE,RED/MAROON,TRIM3#
sub73380-16021
main73380-16020-03i198205-198403
GRAY,GRAY,TRIM1#
sub73380-16021
main73380-16020-06i198205-198403
BROWN,BROWN,TRIM4#
sub73380-16021
main73380-16021-02i198403-198408
DARK WINE,DARK WINE,TRIM3#
sub73380-16021
main73380-16021-03i198403-198408
GRAY,GRAY,TRIM1#
sub73380-16021
main73380-16021-06i198403-198408
BROWN,BROWN,TRIM4#
sub73380-16021
main73380-16030-03i198208-198403
GRAY,GRAY,TRIM1#
sub73380-16031
main73380-16030-06i198208-198403
BROWN,BROWN,TRIM4#
sub73380-16031
main73380-16031-03i198403-198408
GRAY,GRAY,TRIM1#
sub73380-16031
main73380-16031-06i198403-198408
BROWN,BROWN,TRIM4#
sub73380-16031
main73380-16060-01i198605-198801
BLACK,BLACK,TRIM2#
main73380-16060-03i198408-198605
GRAY,GRAY,TRIM1#
main73380-16060-03i198506-198605
NEW ZEALAND SPEC,GRAY,GRAY,TRIM1#
main73380-16060-05i198408-198605
BEIGE,BEIGE,TRIM4#
main73380-16060-05i198506-198605
NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
main73380-16060-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
main73380-16070-01i198605-198801
BLACK,BLACK,TRIM2#
sub73380-16070
main73380-16070-03i198408-198605
GRAY,GRAY,TRIM1#
sub73380-16070
main73380-16070-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73380-16070
main73380-16070-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73380-16070
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73380-16020-02i198205-198403
DARK WINE,RED/MAROON,TRIM3#
sub73380-16021
main73380-16020-03i198205-198403
GRAY,GRAY,TRIM1#
sub73380-16021
main73380-16020-06i198205-198403
BROWN,BROWN,TRIM4#
sub73380-16021
main73380-16021-02i198403-198408
DARK WINE,DARK WINE,TRIM3#
sub73380-16021
main73380-16021-03i198403-198408
GRAY,GRAY,TRIM1#
sub73380-16021
main73380-16021-06i198403-198408
BROWN,BROWN,TRIM4#
sub73380-16021
main73380-16030-03i198208-198403
GRAY,GRAY,TRIM1#
sub73380-16031
main73380-16030-06i198208-198403
BROWN,BROWN,TRIM4#
sub73380-16031
main73380-16031-03i198403-198408
GRAY,GRAY,TRIM1#
sub73380-16031
main73380-16031-06i198403-198408
BROWN,BROWN,TRIM4#
sub73380-16031
main73380-16060-01i198605-198801
BLACK,BLACK,TRIM2#
main73380-16060-03i198408-198605
GRAY,GRAY,TRIM1#
main73380-16060-03i198506-198605
NEW ZEALAND SPEC,GRAY,GRAY,TRIM1#
main73380-16060-05i198506-198605
NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
main73380-16060-05i198408-198605
BEIGE,BEIGE,TRIM4#
main73380-16060-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
main73380-16070-01i198605-198801
BLACK,BLACK,TRIM2#
sub73380-16070
main73380-16070-03i198408-198605
GRAY,GRAY,TRIM1#
sub73380-16070
main73380-16070-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub73380-16070
main73380-16070-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub73380-16070
9011911004
main90119-11004
9014950019
main90149-50019
9046706013
main90467-06013
9162140616
main91621-40616
9163140614
main91631-40614
9354054014
main93540-54014

28 parts on this diagram · 3 diagrams in section

SEAT BELT & CHILD RESTRAINT SEAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
