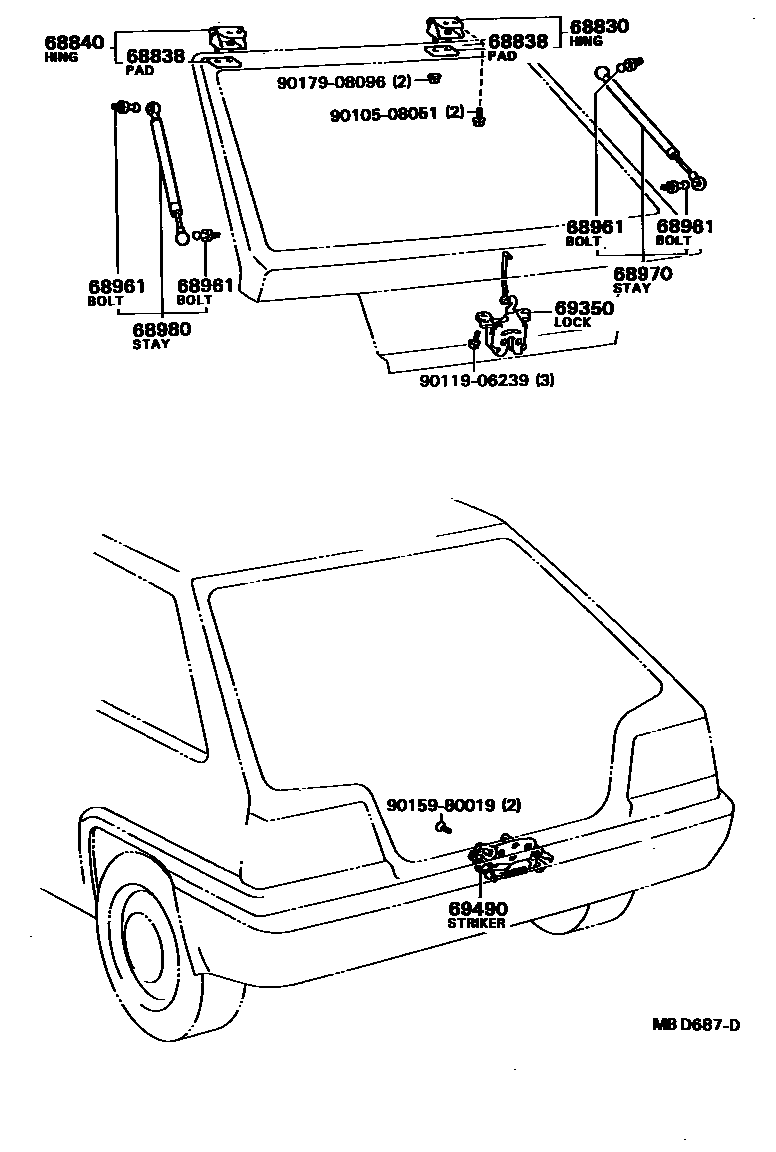

BACK DOOR LOCK & HANDLE
68830HINGE ASSY, BACK DOOR, RH
sub68801-16011
68838PAD, BACK DOOR HINGE, NO.1
sub68838-14022
68840HINGE ASSY, BACK DOOR, LH
sub68801-16011
68961BOLT, BACK DOOR STAY
68970STAY ASSY, BACK DOOR, RH
W/RR WIPER,KAYABA
W/RR WIPER,TOKIKO
KAYABA
TOKIKO
KAYABA
TOKIKO
68980STAY ASSY, BACK DOOR
W/RR WIPER,KAYABA
W/RR WIPER,TOKIKO
KAYABA
TOKIKO
KAYABA
TOKIKO
69350LOCK ASSY, BACK DOOR
W/OPENER
W/O OPENER
69490STRIKER ASSY, BACK DOOR LOCK
W/O OPENER
W/OPENER
NEW ZEALAND SPEC
9010508051
main90105-08051
9011906239
main90119-06239
9015980019
main90159-80019
9017908096
main90179-08096
12 parts on this diagram · 2 diagrams in section
