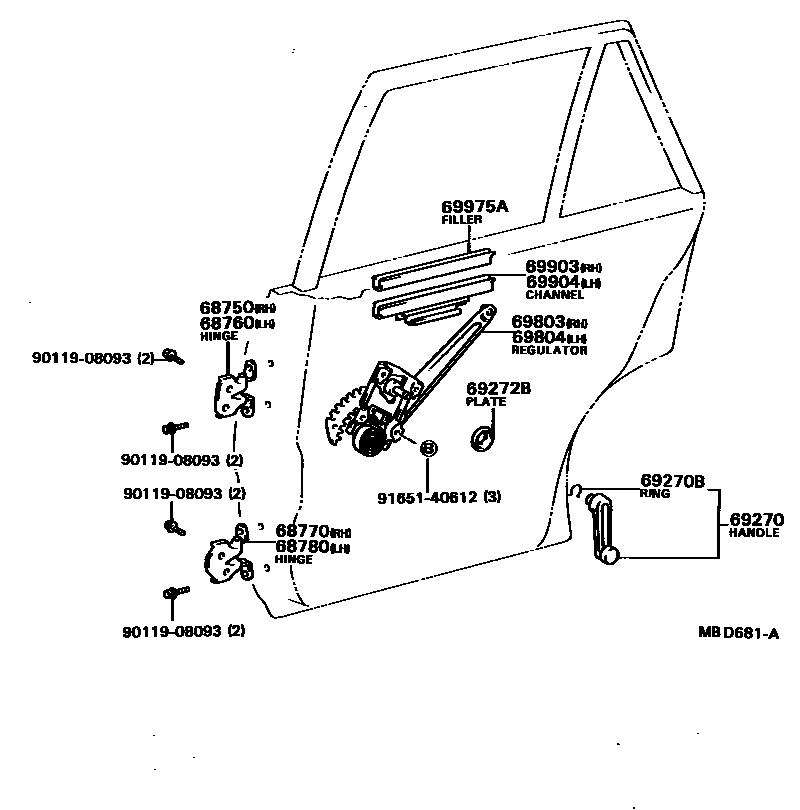

REAR DOOR WINDOW REGULATOR & HINGE
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR
BLACK,NEW BLACK,TRIM2#
GRAY,SHADOW GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975AFILLER, REAR DOOR GLASS CHANNEL
9011908093
9165140612
14 parts on this diagram · 1 diagram in section
