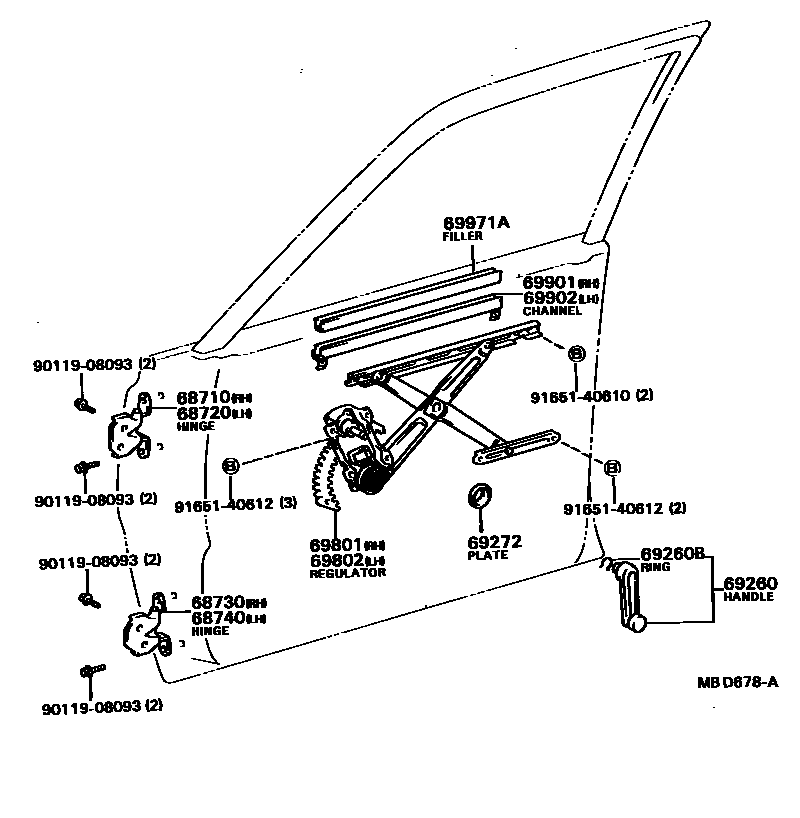

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-32010iAL2#198205-198801

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-32010iAL2#198205-198801

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-32010iAL2#198205-198801

sub68730-30090

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-32010iAL2#198205-198801

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-11iAL25..ARL,GEN198605-198801

BLACK,NEW BLACK,TRIM2#

sub69260-10040

sub69260-16010

main69260-10040-33iAL25..ARL,GEN198505-198605

GRAY,SHADOW GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-45iAL25..ARL,GEN198505-198605

BEIGE,BEIGE,TRIM4#

sub69260-10040

sub69260-16010

main69260-10040-55iAL25..ARL,GEN198605-198801

BEIGE,DARK BEIGE,TRIM4#

sub69260-10040

sub69260-16010

main69260-14020-02iAL20..GEN198205-198408

DARK WINE,RED/MAROON,TRIM3#

sub69260-14020

sub69260-22030

main69260-14020-13iAL20,25..ARL,GEN198205-198408

GRAY,GRAY,TRIM1#

sub69260-14020

sub69260-22030

main69260-14020-16iAL20,25..ARL,GEN198205-198408

BROWN,BROWN,TRIM4#

sub69260-14020

sub69260-22030

main69260-14020-33iAL25..ARL,GEN198408-198505

GRAY,GRAY,TRIM1#

sub69260-14020

sub69260-22030

main69260-14020-55iAL25..ARL,GEN198408-198505

BEIGE,BEIGE,TRIM4#

sub69260-14020

sub69260-22030

main69260-14030-02iAL20,21..EUR198205-198408

DARK WINE,RED/MAROON,TRIM3#

sub69260-14030

main69260-14030-11iAL25..EUR198605-198801

BLACK,NEW BLACK,TRIM2#

sub69260-14030

main69260-14030-13iAL2#..EUR198205-198408

GRAY,GRAY,TRIM1#

sub69260-14030

main69260-14030-16iAL2#..EUR198205-198408

BROWN,BROWN,TRIM4#

sub69260-14030

main69260-14030-33iAL25..EUR198408-198605

GRAY,GRAY,TRIM1#

sub69260-14030

main69260-14030-45iAL25..EUR198408-198605

BEIGE,BEIGE,TRIM4#

sub69260-14030

main69260-14030-55iAL25..EUR198605-198801

BEIGE,DARK BEIGE,TRIM4#

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAL2#198205-198801

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010iAL2#198205-198801

sub69268-20020

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-16020iAL2#198205-198801

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-16020iAL2#198205-198801

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-16010iAL2#198205-198801

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-16010iAL2#198205-198801

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-22010iAL2#198205-198801

sub69971-95110

9011908093

main90119-08093

9165140610

main91651-40610

9165140612

main91651-40612

15 parts on this diagram · 1 diagram in section
