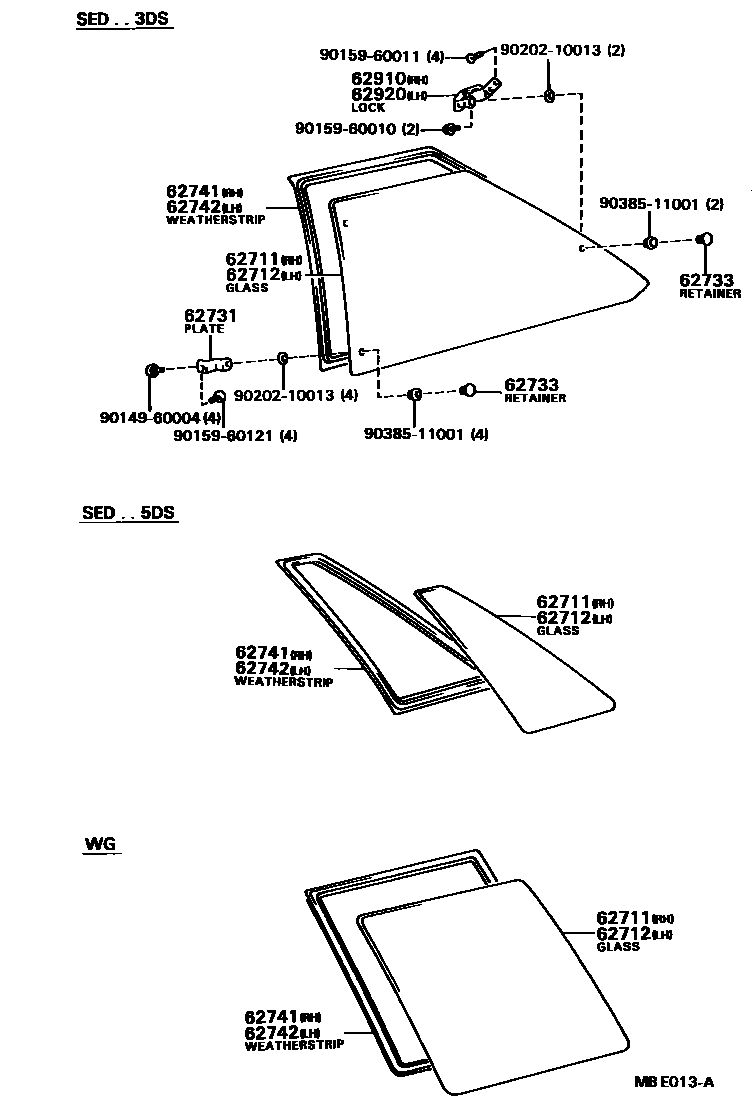

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-16110iAL20,21..3DS..(DLX,GL)198205-198408

*TT,T=4.0,SWING OUT TYPE

main62711-16120iAL20..3DS..(DLX,STD)..EUG198205-198408

*TEM,T=4.0,SWING OUT TYPE

sub62711-16110

main62711-16140iAL20,21..3DS..(DLX,STD)..EUR198205-198408

*TEM,T=3.5,FIXED TYPE

main62711-16150iAL20,21..5DS198205-198408

*TT,T=3.5

main62711-16160iAL20,21..5DS..DLX..EUR198205-198408

*TEM,T=3.5

sub62711-16150

main62711-16170iAL25198208-198801

*TT,T=3.5,*TT,T=3.5

62712GLASS, QUARTER WINDOW, LH

main62712-16110iAL20,21..3DS..(DLX,GL)198205-198408

*TT,T=4.0,SWING OUT TYPE

main62712-16120iAL20..3DS..(DLX,STD)..EUG198205-198408

*TEM,T=4.0,SWING OUT TYPE

sub62712-16110

main62712-16140iAL20,21..3DS..(DLX,STD)..EUR198205-198408

*TEM,T=3.5,FIXED TYPE

main62712-16150iAL20,21..5DS198205-198408

*TT,T=3.5

main62712-16160iAL20,21..5DS..DLX..EUR198205-198408

*TEM,T=3.5

main62712-16170iAL25198208-198801

*TT,T=3.5,*TT,T=3.5

62731PLATE, QUARTER OR SIDE WINDOW HINGE

main62731-16020iAL20,21..3DS198205-198408

62733RETAINER, QUARTER OR SIDE WINDOW HINGE

main62735-14010iAL20,21..3DS198205-198408

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-16050iAL20,21..3DS198205-198408

SWING OUT YTPE

main62741-16060iAL20,21..3DS..(DLX,STD)..EUR198205-198408

FIXED TYPE

main62741-16070iAL20,21..5DS198205-198408

main62741-16080iAL25198208-198801

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-16050iAL20,21..3DS198205-198408

SWING OUT YTPE

main62742-16060iAL20,21..3DS..(DLX,STD)..EUR198205-198408

FIXED TYPE

main62742-16070iAL20,21..5DS198205-198408

main62742-16080iAL25198208-198801

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-16020iAL20,21..3DS198205-198408

62920LOCK ASSY, QUARTER WINDOW, LH

main62920-16020iAL20,21..3DS198205-198408

9014960004

main90149-60004

9015960010

main90159-60010

9015960011

main90159-60011

9015960121

main90159-60121

9020210013

main90202-10013

9038511001

main90385-11001

14 parts on this diagram · 1 diagram in section
