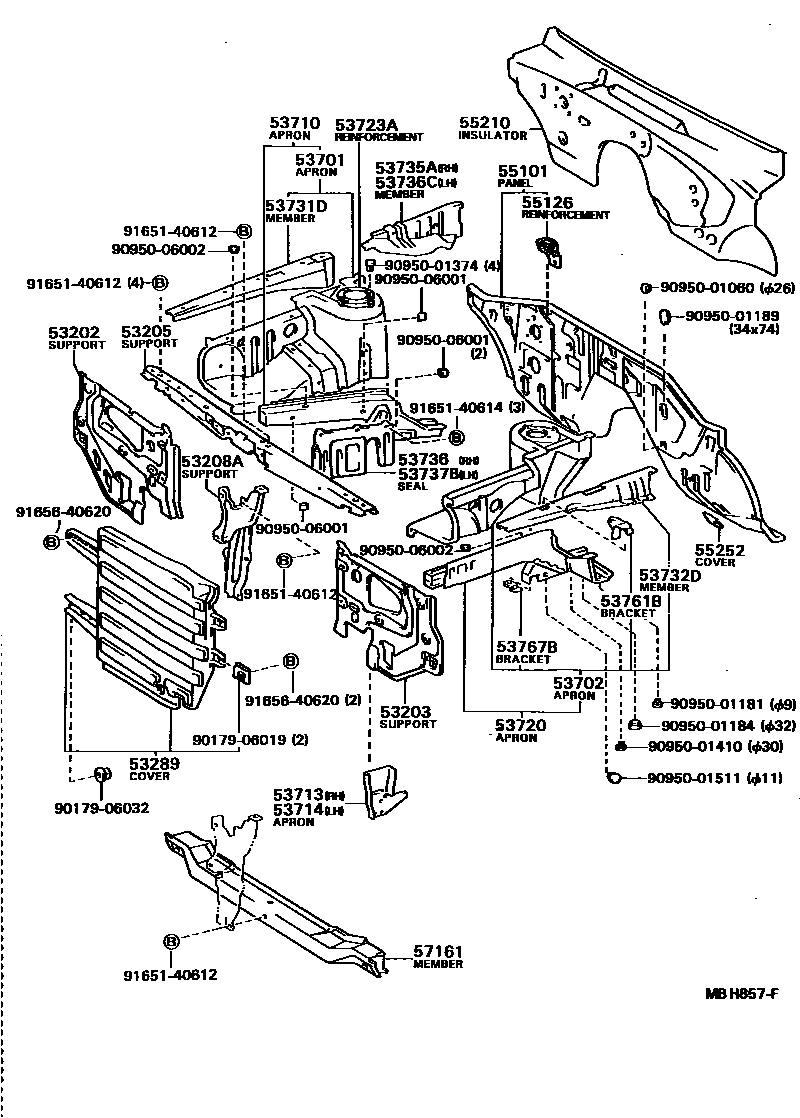

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-16030iAL2#198205-198801

main53202-16040iAL25..ARL,EUR198409-198801

sub53202-16060

main53202-16050iAL2#..ARL,EUR198405-198409

sub53202-16040

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-16030iAL2#198205-198605

sub53203-16040

main53203-16040iAL25..ARL,EUR198409-198801

sub53203-16050

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-16010iAL2#198205-198605

sub53205-16040

main53205-16040iAL25..ARL,EUR198409-198801

sub53205-16020

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-16010iAL2#198205-198605

sub53208-16020

main53208-16020iAL25..ARL,EUR198409-198801

53289COVER, RADIATOR SIDE BAFFLE

main53289-16020iAL2#198205-198801

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-16050iAL25..EUR198209-198801

main53701-16060iAL20,25..GEN198205-198801

main53701-16100iAL25..ARL198605-198801

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-16050iAL2#..ARL,EUR198209-198801

main53702-16060iAL20,25..GEN198205-198603

sub53702-16050

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53701-16900iAL2#198205-198801

53713APRON, FENDER SIDE, RH

main53713-16030iAL2#198205-198605

sub53713-16040

main53713-16040iAL2#..ARL,EUR198209-198801

main53713-16040iAL25..GEN198408-198605

*GIS

53714APRON, FENDER SIDE, LH

main53714-16030iAL2#198205-198605

sub53714-16040

main53714-16040iAL2#..ARL,EUR198209-198801

main53714-16040iAL25..GEN198408-198605

*GIS

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53702-16900iAL2#198205-198402

main53702-16903iAL2#..ARL,EUR198402-198801

main53702-16904iAL20,25..GEN198402-198801

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-16010iAL25..GEN198601-198801

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-16010iAL2#198205-198801

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-16010iAL2#198205-198801

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-16010iAL2#198205-198801

53736SEAL, FRONT FENDER APRON, RH

main53736-16030iAL2#198205-198801

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53706-16010iAL2#198205-198801

53737BSEAL, FRONT FENDER APRON, LH

main53737-16030iAL2#198205-198801

53761BBRACKET, BATTERY CLAMP MOUNTING

main53761-16030iAL2#198205-198801

53767BBRACKET, BATTERY WIRRING HARNESS

main53767-20040iAL2#198205-198801

55101PANEL SUB-ASSY, DASH

main55101-16130iAL20,25..RHD..MTM198205-198408

main55101-16150iAL20..RHD..3FC198205-198408

main55101-16190iAL20,21..LHD..MTM198205-198408

main55101-16200iAL25..LHD198208-198801

main55101-16210iAL20,21..LHD..3FC198205-198408

main55101-16320iAL25..RHD198408-198801

55126REINFORCEMENT, CLUTCH WIRE SUPPORT

main55126-16060iAL25..RHD198502-198801

55210INSULATOR ASSY, DASH PANEL

main55210-16030iAL20,25..RHD198205-198408

main55210-16040iAL20..LHD198205-198208

sub55210-16041

main55210-16041iAL2#..LHD198208-198801

main55210-16050iAL25..RHD198408-198801

55252COVER, DASH PANEL HOLE

main55129-16010iAL2#198205-198801

57161CROSSMEMBER, FRONT

main57104-16030iAL2#..EUR,GEN198205-198601

sub57104-16040

main57104-16040iAL2#..ARL,EUR198209-198801

9017906019

main90179-06019

9017906032

main90179-06032

9095001060

main90950-01060

9095001181

main90950-01181

9095001184

main90950-01184

9095001189

main90950-01189

9095001374

main90950-01374

9095001410

main90950-01410

9095001511

main90950-01511

9095006001

main90950-06001

9095006002

main90950-06002

9165140612

main91651-40612

9165140614

main91651-40614

9165640620

main91656-40620

39 parts on this diagram · 2 diagrams in section
