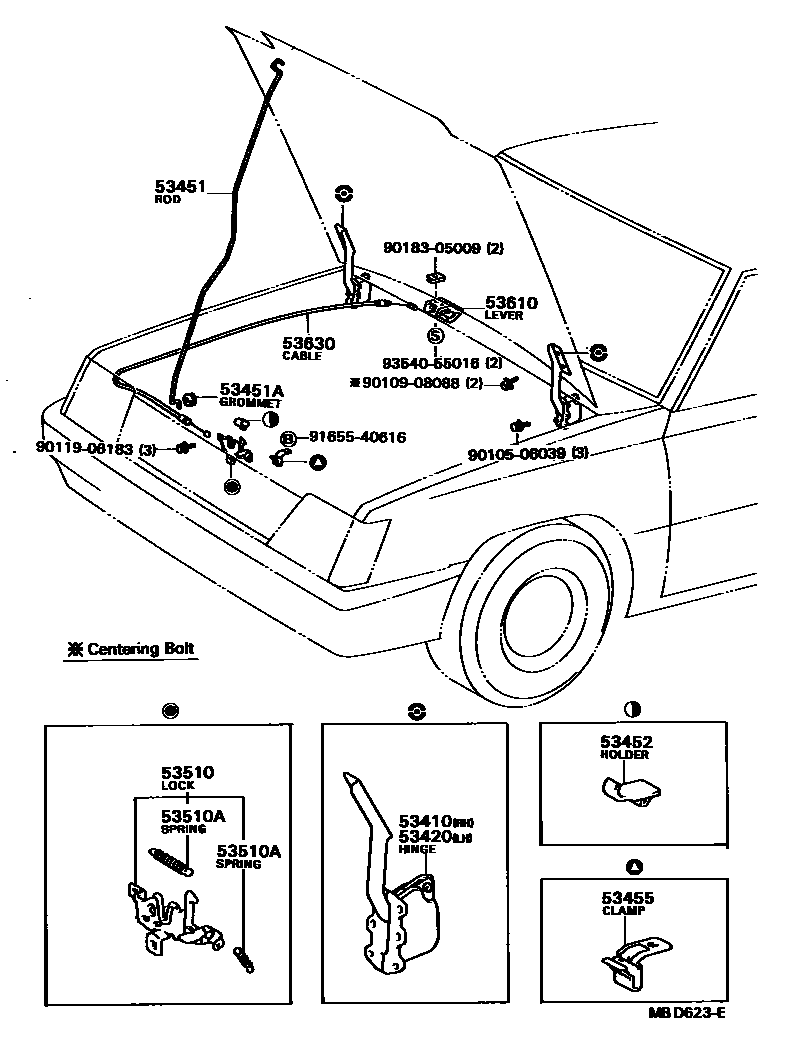

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-16020iAL2#198205-198801

53420HINGE ASSY, HOOD, LH

main53410-16020iAL2#198205-198801

53451ROD, HOOD SUPPORT

main53451-16020iAL2#198205-198801

sub53451-16030

main53451-16030iAL25..EUR198505-198801

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15002iAL2#198205-198801

53452HOLDER, HOOD STAY

main53452-16010iAL2#198205-198801

53455CLAMP, HOOD SUPPORT ROD

main53455-16010iAL2#198205-198801

53510LOCK ASSY, HOOD

main53510-16050iAL20,25..RHD198205-198408

sub53510-16070

main53510-16060iAL2#..LHD198205-198408

sub53510-16080

main53510-16070iAL25..RHD198408-198801

main53510-16080iAL25..LHD198408-198801

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09008iAL2#198205-198801

WD=0.9,CW=21.25,L=34.4

main90506-20008iAL2#198205-198801

WD=2.0,CW=17,L=60

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-14010-11iAL25198605-198801

BLACK,NEW BLACK,TRIM2#

sub53601-14010

main53601-14010-12iAL20,21198205-198408

DARK WINE,RED/MAROON,TRIM3#

sub53601-14010

main53601-14010-13iAL2#198205-198408

GRAY,GRAY,TRIM1#

sub53601-14010

main53601-14010-15iAL25198408-198605

BEIGE,BEIGE,TRIM4#

sub53601-14010

main53601-14010-16iAL2#198205-198408

BROWN,BROWN,TRIM4#

sub53601-14010

main53601-14010-23iAL25198408-198605

GRAY,SHADOW GRAY,TRIM1#

sub53601-14010

main53601-14010-25iAL25198605-198801

BEIGE,DARK BEIGE,TRIM4#

sub53601-14010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-16090iAL20,25..RHD198205-198801

sub53630-20120

main53630-16110iAL2#..LHD198205-198801

9010506039

main90105-06039

9010908088

main90109-08088

9011906183

main90119-06183

9018305009

main90183-05009

9165540616

main91655-40616

9354055016

main93540-55016

16 parts on this diagram · 1 diagram in section
