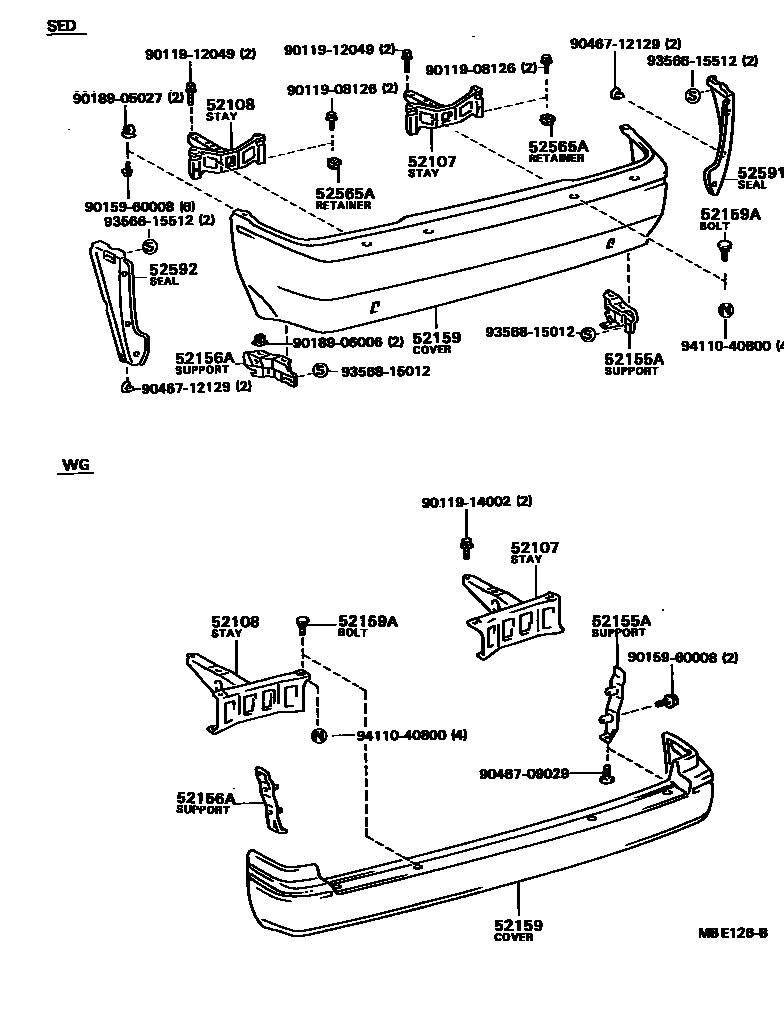

REAR BUMPER & BUMPER STAY

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-16050iAL20198205-198209

main52015-16080iAL25198208-198801

main52015-16110iAL20,21198209-198408

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-16050iAL20198205-198209

main52016-16080iAL25198208-198801

main52016-16100iAL20,21198209-198408

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-16020iAL20,21198205-198408

main52155-16060iAL25198208-198801

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-16020iAL20,21198205-198408

main52156-16060iAL25198208-198801

52159COVER, REAR BUMPER

main52159-16030-03iAL20,21198205-198301

DARK GRAY,GRAY

main52159-16030-23iAL20,21198301-198408

OFF BLACK,GRAY

main52159-16120-01iAL25198408-198801

BLACK,BLACK

sub52159-16120

main52159-16120-03iAL25..EUR,GEN198208-198301

DARK GRAY,GRAY

sub52159-16120

main52159-16120-23iAL25198301-198408

OFF BLACK,GRAY

sub52159-16120

52159ABOLT(FOR REAR BUMPER COVER)

main90112-08032-01iAL25198408-198801

BLACK,BLACK

sub90112-08032

sub90112-08058

main90112-08032-13iAL2#..EUR,GEN198205-198301

DARK GRAY,GRAY

sub90112-08032

sub90112-08058

main90112-08032-23iAL2#198301-198408

OFF BLACK,GRAY

sub90112-08032

sub90112-08058

52565ARETAINER, REAR BUMPER, LOWER

main52565-16020iAL20,21198205-198408

52591SEAL, REAR BUMPER SIDE, RH

main52591-16040iAL20,21198205-198408

52592SEAL, REAR BUMPER SIDE, LH

main52592-16030iAL20,21198205-198408

9011908126

main90119-08126

9011912049

main90119-12049

9011914002

main90119-14002

9015960008

main90159-60008

9018905027

main90189-05027

9018906006

main90189-06006

9046709029

main90467-09029

9046712129

main90467-12129

9356615512

main93566-15512

9356815012

main93568-15012

9411040800

main94110-40800

20 parts on this diagram · 1 diagram in section
