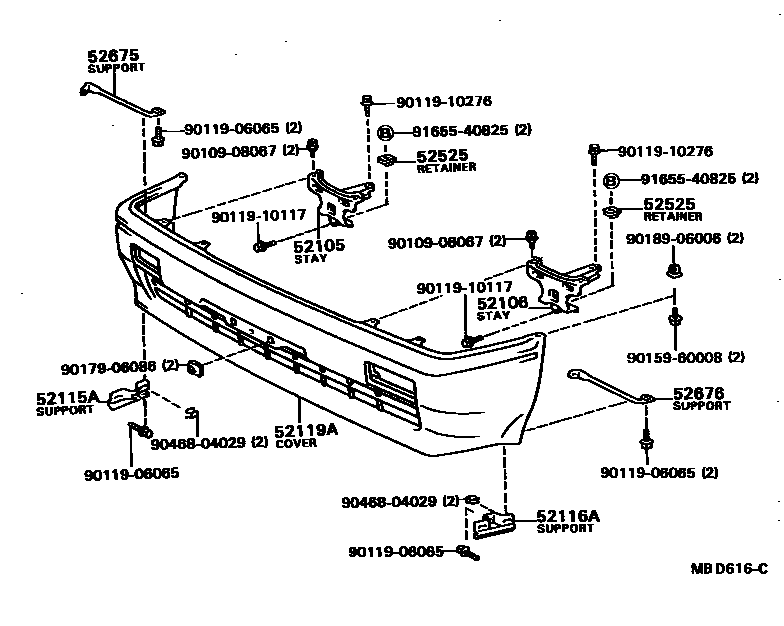

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-16050iAL2#198205-198408

main52011-16051iAL25198408-198801

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52011-16050iAL2#198205-198408

main52011-16051iAL25198408-198801

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-16050iAL2#198205-198408

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-16050iAL2#198205-198408

52119ACOVER, FRONT BUMPER

main52119-16030-03iAL2#..EUR,GEN198205-198301

DARK GRAY,GRAY

main52119-16030-23iAL2#198301-198408

OFF BLACK,GRAY

main52119-16040-03iAL2#..EUR,GEN198205-198301

W/*HC,DARK GRAY,GRAY

main52119-16040-23iAL2#198301-198408

W/*HC,OFF BLACK,GRAY

main52119-16140iAL25198408-198801

main52119-16160iAL25..ARL;AL25..EUG,SDZ198408-198801

W/*HC

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52565-16020×4iAL2#198205-198801

52675SUPPORT, FRONT BUMPER LOWER SIDE, RH

main52675-16010iAL2#198205-198801

52676SUPPORT, FRONT BUMPER LOWER SIDE, LH

main52676-16010iAL2#198205-198801

9010908067

main90109-08067

9011906065

main90119-06065

9011910117

main90119-10117

9011910276

main90119-10276

9015960008

main90159-60008

9017906086

main90179-06086

9018906006

main90189-06006

9046804029

main90468-04029

9165540825

main91655-40825

17 parts on this diagram · 2 diagrams in section
