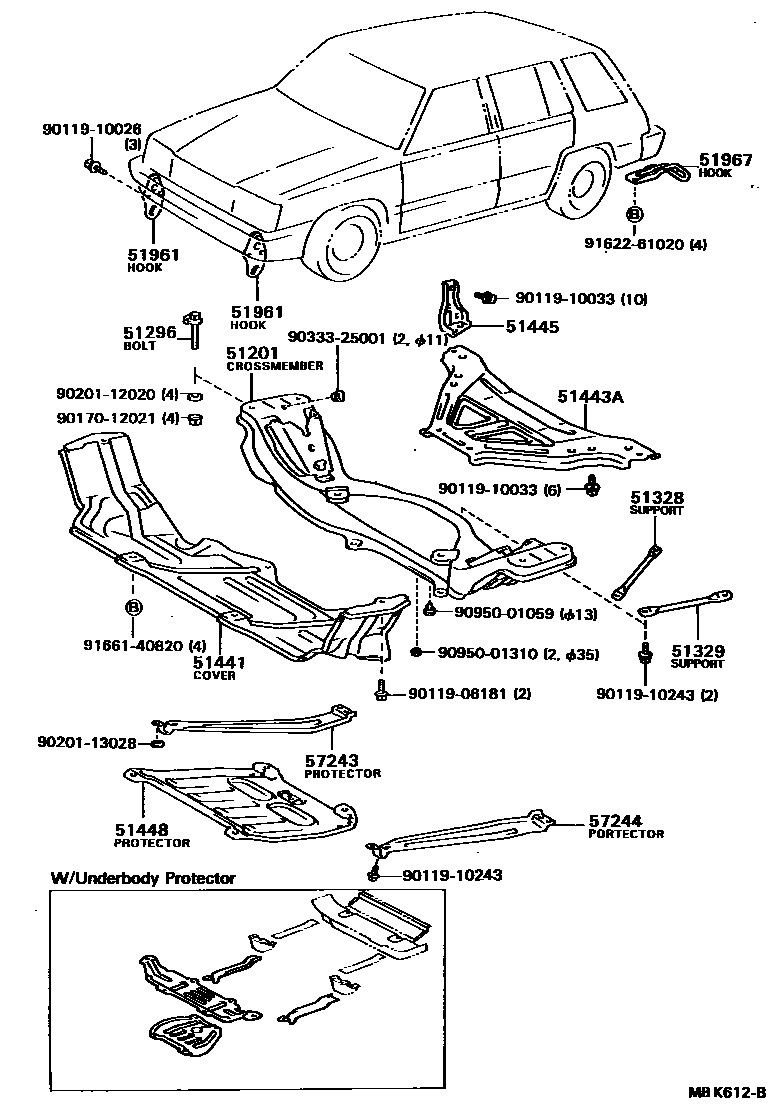

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-16030iAL20..RHD198205-198408

main51201-16040iAL20,21..LHD198205-198408

main51201-16050iAL25..RHD198208-198801

main51201-16060iAL25..LHD198208-198801

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51296-22020iAL2#198205-198801

51328SUPPORT, FRONT SUSPENSION MEMBER, RH

main51328-16010iAL2#198205-198801

51329SUPPORT, FRONT SUSPENSION MEMBER, LH

main51329-16010iAL2#198205-198801

51441COVER, ENGINE UNDER, NO.1

main51441-16020iAL2#198205-198406

sub51441-16021

main51441-16021iAL25..EUR198406-198801

main51447-16010iAL25198208-198406

W/UNDER BODY PROTECTOR

sub51447-16011

main51447-16011iAL25198406-198801

W/UNDER BODY PROTECTOR

51443ACOVER, ENGINE UNDER, REAR

main51443-16010iAL25..GEN198601-198801

51445BRACKET, ENGINE UNDER COVER

main51445-16010iAL25..GEN198601-198801

RH

main51446-16010iAL25..GEN198601-198801

LH

51448PROTECTOR, OIL PAN

main51447-16020iAL25198208-198801

W/UNDER BODY PROTECTOR

51961HOOK, NO.1

main51963-16020iAL2#198205-198801

51967HOOK, TRANSPORT, REAR

main51095-16010iAL25198208-198801

RH

main51095-16020iAL20,21198209-198408

main51096-16010iAL25198208-198801

LH

57243PROTECTOR, LOWER ARM, RH

main57243-16010iAL25198208-198801

W/UNDER BODY PROTECTOR

57244PROTECTOR, LOWER ARM, LH

main57244-16010iAL25198208-198801

W/UNDER BODY PROTECTOR

9011906181

main90119-06181

9011910026

main90119-10026

9011910033

main90119-10033

9011910243

main90119-10243

9017012021

main90170-12021

9020112020

main90201-12020

9020113028

main90201-13028

9033325001

main90333-25001

9095001059

main90950-01059

9095001310

main90950-01310

9162261020

main91622-61020

9166140820

main91661-40820

24 parts on this diagram · 1 diagram in section
