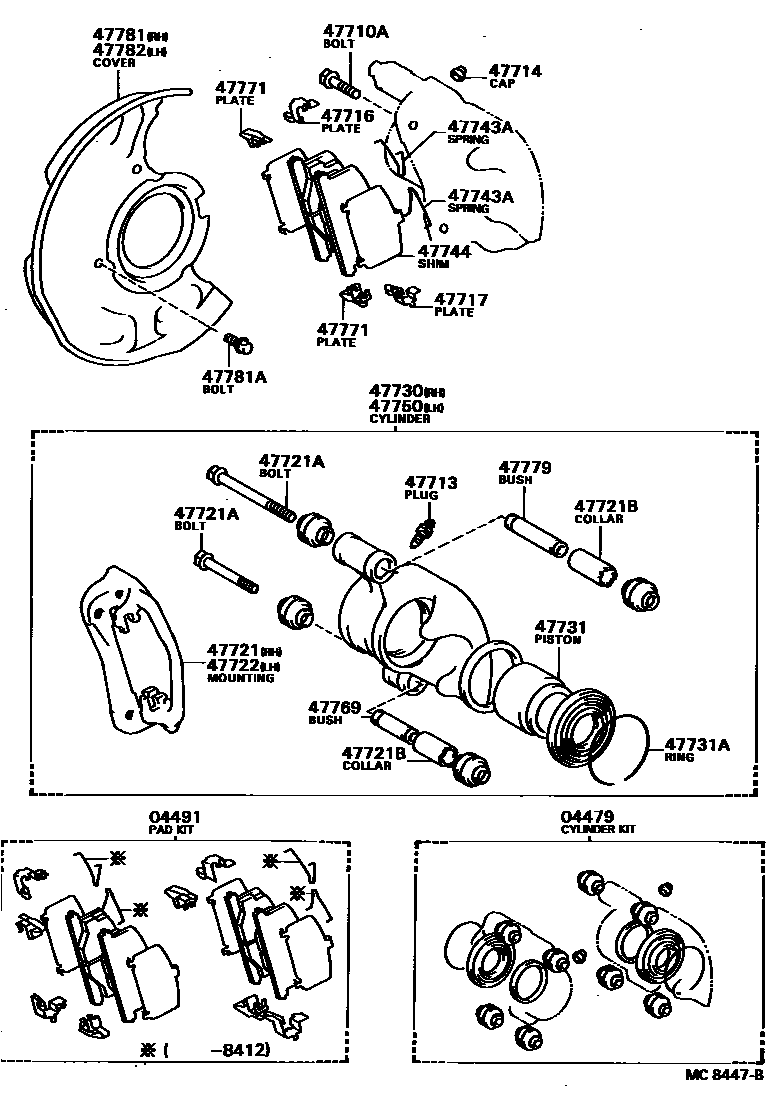

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-16020iAL2#¥3,820198205-198501

sub04479-16021¥3,010

main04479-16021iAL25¥3,010198501-198801

04491PAD KIT, DISC BRAKE, FRONT

main04491-16040iAL2#¥10,200198205-198801

sub04491-16041

main04491-16190iAL25..SDZ¥11,100198708-198801

SWEDEN SPEC

sub04491-16191

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAL2#¥230198205-198801

*12-1.25PX25.8-19.5

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAL2#¥200198205-198801

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAL2#¥160198205-198801

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010iAL2#¥600198205-198801

sub47716-32031¥390

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010iAL2#¥600198205-198801

sub47717-32031¥390

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-16010iAL2#¥6,600198205-198801

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iAL2#¥550198205-198801

*9-1.25PX71-25,*9-1.25PX73-25

main90119-09004iAL2#¥550198205-198801

*9-1.25PX91-25,*9-1.25PX93-25

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004iAL2#¥540198205-198705

L=12

main90387-15005iAL2#¥730198205-198705

L=32

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-16010iAL2#¥6,600198205-198801

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-16040iAL2#¥43,200198205-198801

47731PISTON, FRONT DISC BRAKE

main47731-16020iAL2#¥3,000198205-198801

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iAL2#¥120198205-198801

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-16010iAL2#¥320198205-198801

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32010iAL25..SDZ¥280198708-198801

SWEDEN SPEC

main47744-32010iAL2#¥280198205-198801

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-16040iAL2#¥43,200198205-198801

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iAL25¥590198705-198801

main47769-16010iAL2#¥640198205-198705

sub47769-12030¥590

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050iAL25..SDZ¥250198708-198801

SWEDEN SPEC

main47771-32010iAL2#¥250198205-198708

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iAL2#¥590198205-198801

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-16030iAL2#¥1,810198205-198401

main47781-16031iAL2#¥1,650198401-198801

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06196iAL2#¥140198205-198801

sub91611-G0612¥70

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-16030iAL2#¥1,810198205-198401

main47782-16031iAL2#¥1,650198401-198801

23 parts on this diagram · 3 diagrams in section
