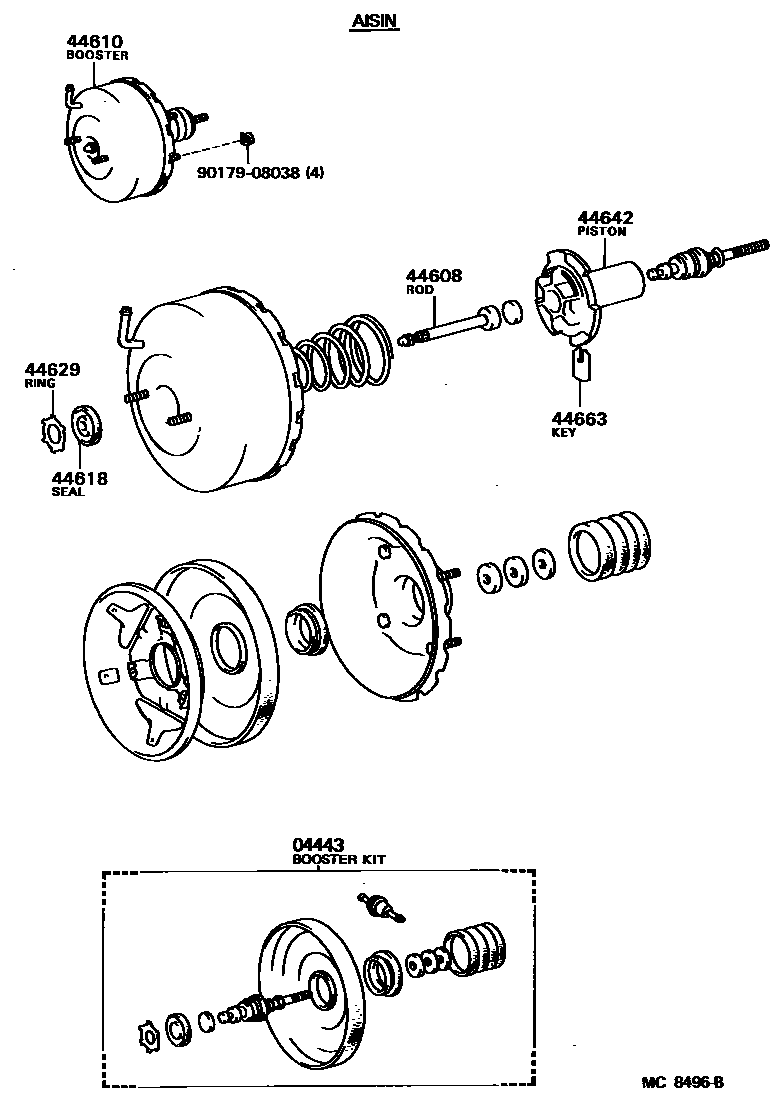

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-16041iAL25..RHD..GEN198408-198604

AISIN

main04443-16050iAL20..RHD¥14,600198205-198801

JKC

main04443-16060iAL25..LHD..GEN¥14,600198205-198801

main04443-16070iAL21..3DS..DLX¥10,400198205-198408

AISIN,SWEDEN SPEC

sub04443-16071¥11,500

main04443-16070iAL20..LHD..GEN¥10,400198205-198408

AISIN

sub04443-16071¥11,500

main04443-16080iAL25..RHD..(ARL,EUR)¥11,400198208-198408

sub04443-16081¥7,200

main04443-16081iAL25..RHD..(ARL,EUR)¥7,200198408-198801

main04443-16090iAL25..SDZ¥11,400198208-198408

SWEDEN SPEC

sub04443-16091¥11,800

main04443-16091iAL25..LHD..EUR¥11,800198605-198801

AISIN

main04443-16091iAL25..SDZ¥11,800198408-198605

SWEDEN SPEC

main04443-16100iAL25..LHD..EUR¥14,200198208-198801

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iAL25..RHD¥2,660198408-198801

AISIN

main44606-12520iAL25..SDZ¥2,660198408-198801

AISIN,SWEDEN SPEC

main44606-32010iAL25..SDZ198208-198408

AISIN,SWEDEN SPEC

main44606-32010iAL20..RHD..EUG198205-198408

AISIN

main44608-32020iAL20..RHD;AL20,21..LHD..EUR¥2,670198205-198801

JKC

44610BOOSTER ASSY, BRAKE

main44610-16051iAL25..RHD..GEN¥38,500198408-198604

AISIN

sub44610-16060¥38,700

main44610-16060iAL20..RHD¥38,700198205-198408

main44610-16060iAL25..RHD..GEN¥38,700198208-198801

JKC

main44610-16070iAL25..LHD..GEN¥38,600198208-198801

main44610-16070iAL20,21..LHD..EUR¥38,600198205-198408

JKC

main44610-16080iAL21..3DS..DLX¥38,400198208-198408

AISIN,SWEDEN SPEC

sub44610-16081¥38,400

main44610-16080iAL20..LHD..GEN¥38,400198205-198408

AISIN

sub44610-16081¥38,400

main44610-16090iAL25..RHD..(ARL,EUR)¥42,200198208-198408

sub44610-16091¥42,300

main44610-16091iAL25..RHD..(ARL,EUR)¥42,300198408-198801

main44610-16101iAL25..LHD..EUR¥42,300198605-198801

AISIN

main44610-16101iAL25..SDZ¥42,300198408-198605

SWEDEN SPEC

main44610-16110iAL25..SDZ¥42,100198208-198408

SWEDEN SPEC

main44610-16110iAL25..LHD..EUR¥42,100198208-198801

JKC

44618SEAL, BOOSTER BODY

main44621-28120iAL20..LHD..GEN¥590198205-198801

main44621-28120iAL21..3DS..DLX¥590198208-198801

SWEDEN SPEC

44629RING, CIRCULAR INTERNAL

main44628-28120iAL20..RHD..EUG¥390198205-198801

main44628-28120iAL21..3DS..DLX¥390198208-198801

SWEDEN SPEC

44642PISTON, BRAKE BOOSTER

main44642-16050iAL21..3DS..DLX¥3,820198208-198801

SWEDEN SPEC

main44642-16050iAL20..RHD..EUG¥3,820198205-198801

44663KEY, VALVE STOPPER

main44635-28120iAL20..LHD..GEN¥370198205-198801

main44635-28120iAL21..3DS..DLX¥370198208-198801

SWEDEN SPEC

9017908038

main90179-08038¥130

8 parts on this diagram · 3 diagrams in section
