PARKING BRAKE & CABLE

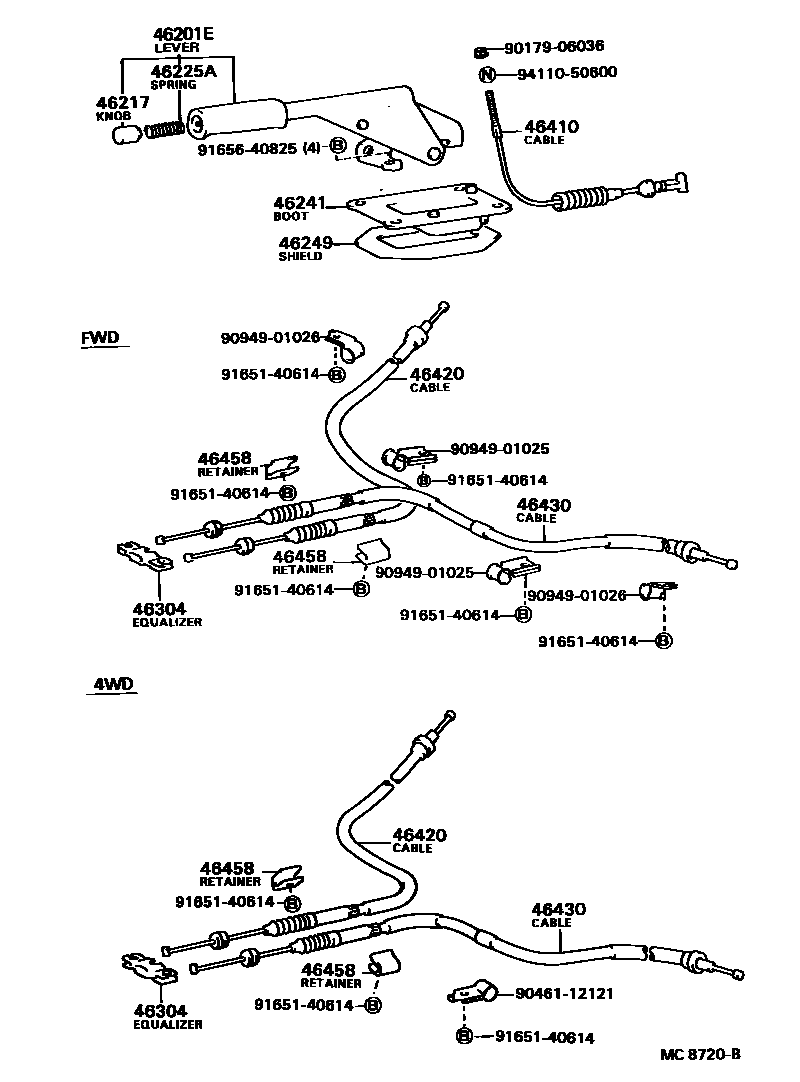

Parts diagram

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-16030-01i198605-198801

BLACK,NEW BLACK,TRIM2#

main46201-16030-02i198205-198408

DARK WINE,DARK WINE,TRIM3#

main46201-16030-03i198205-198408

GRAY,GRAY,TRIM1#

main46201-16030-05i198408-198605

BEIGE,BEIGE,TRIM4#

main46201-16030-06i198205-198408

BROWN,BROWN,TRIM4#

main46201-16030-13i198408-198605

GRAY,GRAY,TRIM1#

main46201-16030-15i198605-198801

BEIGE,DARK BEIGE,TRIM4#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-02i198205-198408

DARK WINE,RED/MAROON,TRIM3#

main46217-10020-11i198605-198801

BLACK,NEW BLACK,TRIM2#

main46217-10020-13i198205-198408

GRAY,GRAY,TRIM1#

main46217-10020-33i198408-198605

GRAY,GRAY,TRIM1#

main46217-10020-36i198205-198408

BROWN,BROWN,TRIM4#

main46217-10020-45i198408-198605

BEIGE,BEIGE,TRIM4#

main46217-10020-55i198605-198801

BEIGE,DARK BEIGE,TRIM4#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745i198205-198801

46241BOOT, PARKING BRAKE LEVER

main46241-16020i198205-198801

46249SHIELD, PARKING BRAKE HOLE

main46249-16010i198205-198801

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-16020i198205-198801

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-16020i198205-198801

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-16040i198205-198408

main46420-16060i198208-198801

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-16040i198205-198408

main46430-16060i198208-198801

46458RETAINER, CABLE

main46458-20020i198205-198801

9017906036

main90179-06036

9046112121

main90461-12121

9094901025

main90949-01025

9094901026

main90949-01026

9165140614

main91651-40614

9165640825

main91656-40825

9411050600

main94110-50600

17 parts on this diagram · 1 diagram in section
