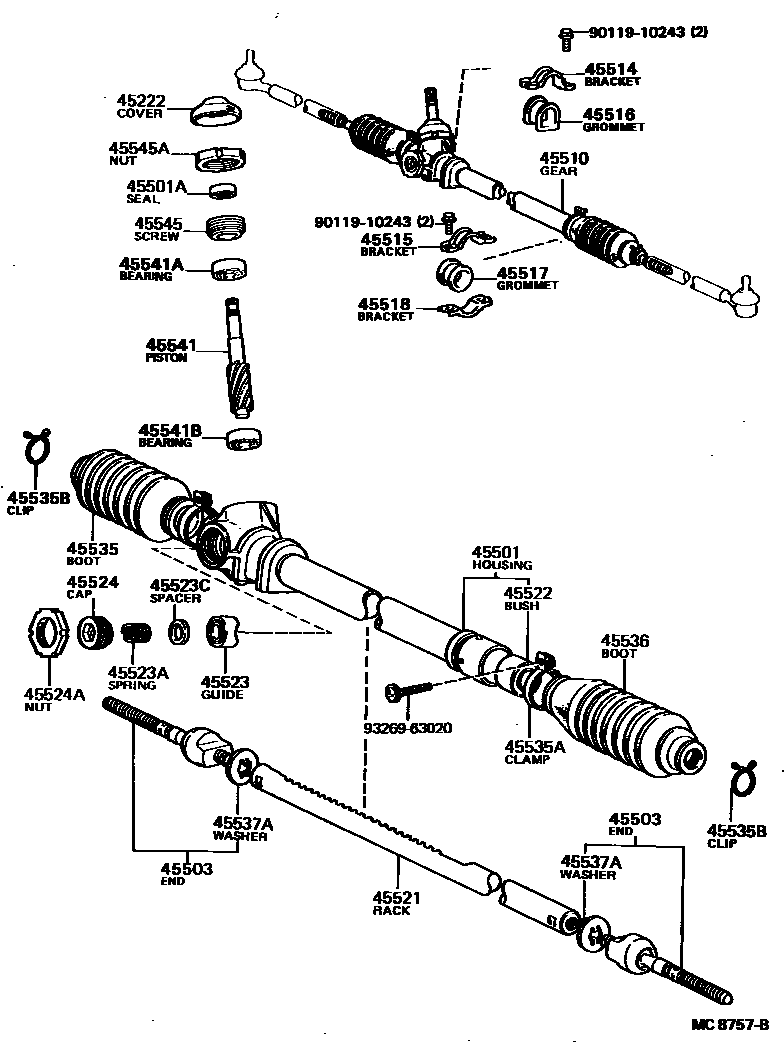

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1

45222COVER, STEERING GEAR DUST

main45222-10030iAL2#¥590198205-198801

45501HOUSING SUB-ASSY, STEERING RACK

main45501-16131iAL20..RHD¥14,100198311-198407

sub45501-16132¥13,500

main45501-16132iAL20..RHD¥13,500198407-198408

main45501-16141iAL25..RHD¥13,400198311-198407

sub45501-16142¥13,500

main45501-16142iAL25..RHD¥13,500198408-198801

main45501-16151iAL2#..LHD¥13,400198311-198407

sub45501-16152¥13,500

main45501-16152iAL2#..LHD¥13,500198407-198801

main45501-16210iAL20..RHD198205-198311

main45501-16220iAL25..RHD198208-198311

main45501-16230iAL2#..LHD¥14,200198205-198311

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15001iAL2#¥190198205-198801

sub90311-15002¥190

45503END SUB-ASSY, STEERING RACK

main45503-19025iAL2#¥5,300198205-198801

45510GEAR ASSY, STEERING

main45510-16050iAL2#..LHD¥46,000198205-198407

sub45510-16051¥46,200

main45510-16051iAL2#..LHD¥46,200198407-198801

main45510-16070iAL20..RHD¥51,000198205-198407

sub45510-16071¥46,300

main45510-16071iAL20..RHD¥46,300198407-198408

main45510-16080iAL25..RHD¥46,000198208-198407

sub45510-16081¥46,200

main45510-16081iAL25..RHD¥46,200198407-198801

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-16020iAL2#¥480198205-198801

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-16020iAL2#¥450198205-198801

main45515-16030iAL25..ARL¥450198308-198801

W/POWER STEERING

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-16020iAL2#¥780198205-198605

sub45516-16030¥780

main45516-16030iAL25¥780198605-198801

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-10010iAL2#¥890198205-198801

main45517-16030iAL25..ARL¥790198308-198801

W/POWER STEERING

45518BRACKET, STEERING RACK HOUSING, NO.3

main45518-16010iAL25¥470198208-198801

45521RACK, STEERING

main45521-16090iAL2#..LHD¥7,000198205-198311

D=24.660-24.680

sub45521-16150¥7,100

sub45522-10031¥2,140

main45521-16110iAL20..RHD¥7,400198205-198311

D=24.660-24.680

sub45521-16130¥7,200

sub45522-10031¥2,140

main45521-16120iAL25..RHD¥7,000198205-198311

D=24.660-24.680

sub45521-16140¥7,200

sub45522-10031¥2,140

main45521-16130iAL20..RHD¥7,200198205-198408

D=24.645-24.665

main45521-16140iAL25..RHD¥7,200198306-198801

D=24.645-24.665

main45521-16150iAL2#..LHD¥7,100198205-198311

D=24.645-24.665

45522BUSH, STEERING RACK

main45522-10021iAL2#¥2,150198311-198407

main45522-10030iAL2#¥2,250198205-198311

sub45522-10031¥2,140

main45522-17010iAL2#¥500198407-198801

sub45522-17020¥520

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-16011iAL2#¥540198205-198801

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-23007iAL2#¥170198205-198801

45523CSPACER(FOR RACK GUIDE)

main90560-23003iAL2#¥600198205-198801

45524CAP, STEERING RACK GUIDE SPRING

main45524-16010iAL2#¥630198205-198801

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36001iAL2#¥580198205-198801

45535BOOT, STEERING RACK, NO.1

main45535-12011iAL2#¥1,820198205-198801

45535ACLAMP(FOR STEERING RACK BOOT)

main90461-10273iAL2#¥310198205-198801

45535BCLIP(FOR STEERING RACK BOOT)

main90467-18003iAL2#¥120198205-198801

45536BOOT, STEERING RACK, NO.2

main45536-12011iAL2#¥2,300198205-198801

45537AWASHER, CLAW(FOR STEERING RACK END LOCK)

main90214-14002iAL2#¥550198205-198801

45541PINION, STEERING

main45541-16050iAL2#..LHD¥3,900198205-198408

sub45541-16051¥3,920

main45541-16051iAL25..LHD¥3,920198408-198801

main45541-16070iAL20,25..RHD¥3,920198205-198408

sub45541-16071¥4,150

main45541-16071iAL25..RHD¥4,150198408-198801

45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)

main90363-15003iAL2#¥2,140198205-198801

45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)

main90363-13001iAL2#¥1,530198205-198801

45545SCREW, PINION BEARING ADJUSTING

main45545-10010iAL2#¥980198205-198801

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-38001iAL2#¥580198205-198801

9011910243

main90119-10243¥200

9326963020

main93269-63020¥110

29 parts on this diagram · 5 diagrams in section
