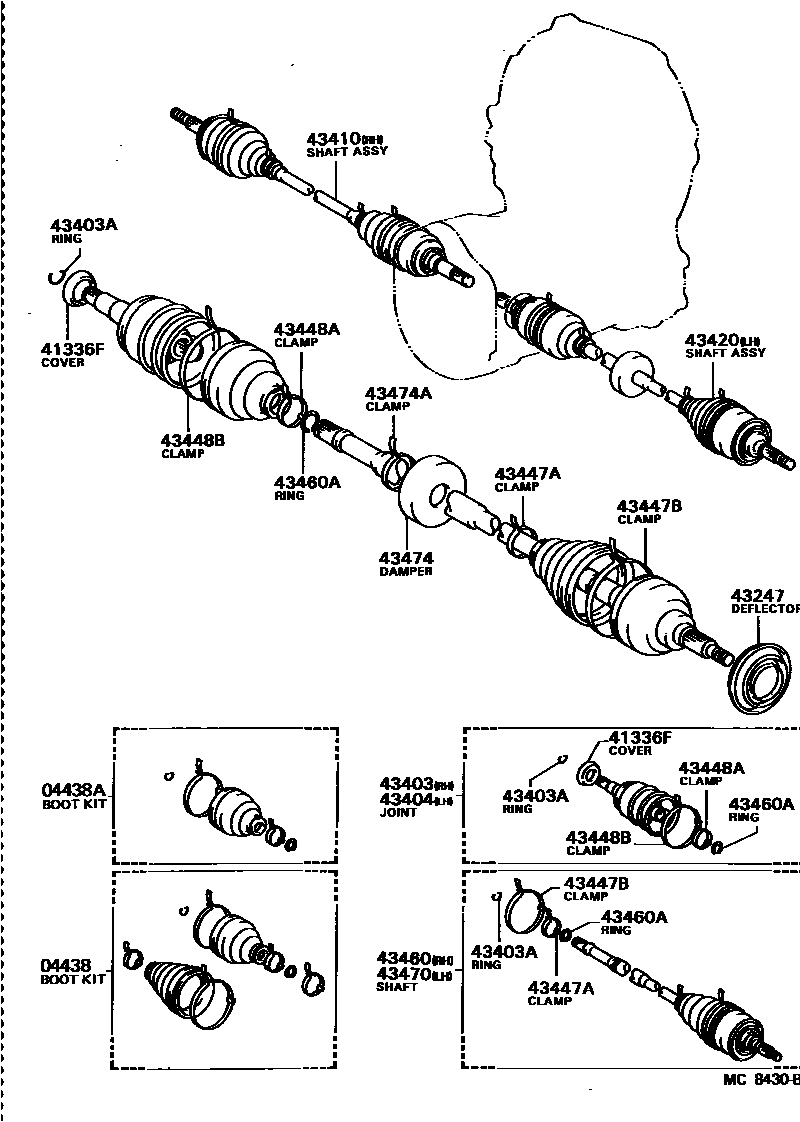

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-16022iAL2#¥10,300198205-198310

sub04438-16023¥11,200

main04438-16023iAL2#¥11,200198310-198801

sub04438-16024¥11,200

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-16011iAL2#¥6,700198205-198801

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-16010iAL2#¥200198205-198801

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-16020iAL2#¥1,730198205-198801

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-19015iAL2#¥30,900198205-198801

43403ARING, SHAFT SNAP (FOR FR AXLE INBOARD JOINT SET SETTING)

main90521-23001iAL2#¥130198205-198801

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-19015iAL20¥30,900198205-198801

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-16040iAL2#¥74,700198205-198310

sub43410-16042¥74,900

main43410-16042iAL2#¥74,900198310-198801

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-16040iAL2#¥76,600198205-198310

sub43420-16042¥76,400

main43420-16042iAL2#¥76,400198310-198801

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90463-04020iAL2#¥540198205-198801

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90463-04022iAL2#¥580198205-198801

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90463-04020iAL2#¥540198205-198801

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90463-04021iAL2#¥580198205-198801

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19025iAL2#¥46,300198205-198310

sub43460-19027¥41,900

main43460-19027iAL2#¥41,900198310-198801

43460ARING, SNAP (FOR FRONT DRIVE OUTBOARD JOINT SHAFT)

main90520-22001iAL2#¥110198205-198801

sub90520-22029¥90

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-19025iAL2#¥49,300198205-198310

sub43470-19027¥44,900

main43470-19027iAL2#¥44,900198310-198801

43474DAMPER, DRIVE SHAFT

main43474-16010iAL2#¥4,150198205-198801

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main90463-04020iAL2#¥540198205-198801

18 parts on this diagram · 1 diagram in section
