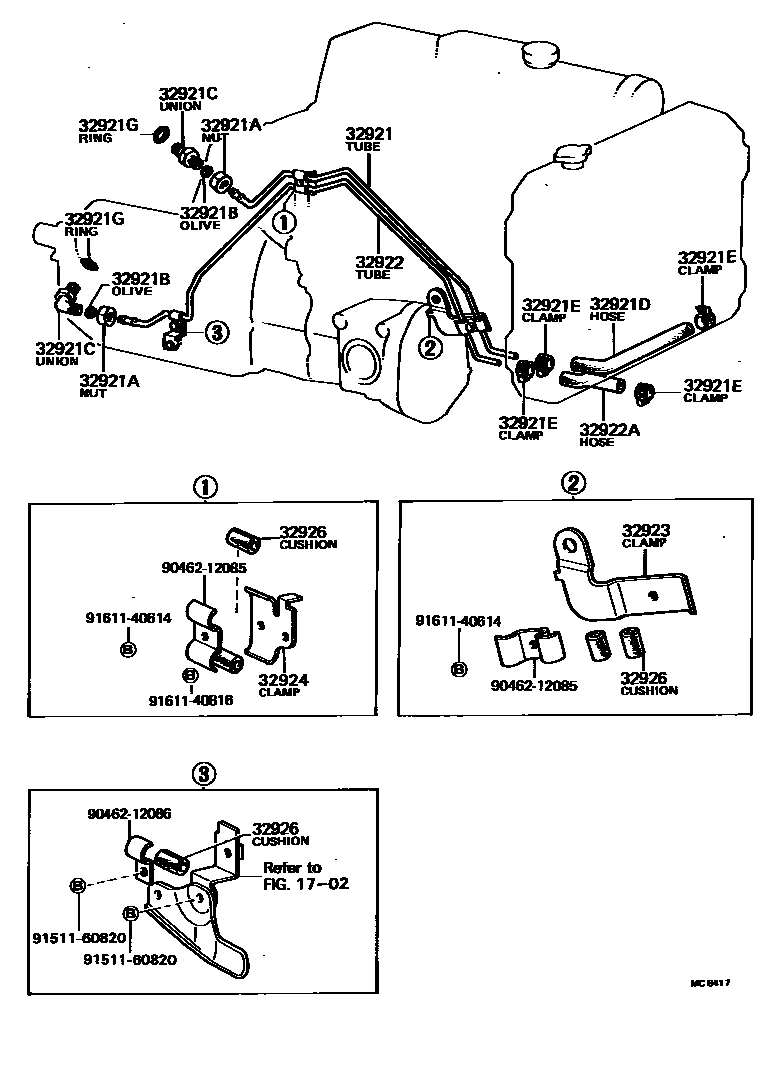

OIL COOLER & TUBE (ATM)

0001 1 0002 1

1702

32921TUBE, OIL COOLER INLET, NO.1

main32904-16021iAL20,21..3FC198306-198408

sub32921-16021

sub32926-30011

sub32941-16010

sub90460-14085

main32921-16020iAL20,21..3FC198205-198306

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041iAL20,21..3FC198205-198306

main90402-14004iAL20,21..3FC198306-198408

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400iAL20,21..3FC198205-198306

32921CUNION(FOR OIL COOLER TUBE)

main90404-13003iAL20,21..3FC198205-198306

INLET

main90404-14007iAL20,21..3FC198306-198408

INLET

main90407-13005iAL20,21..3FC198205-198306

OUTLET

main90407-14003iAL20,21..3FC198306-198408

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-16010iAL20,21..3FC198205-198408

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iAL20,21..3FC198205-198408

sub90460-20004

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iAL20,21..3FC198205-198408

32922TUBE, OIL COOLER OUTLET, NO.1

main32905-16031iAL20,21..3FC198306-198408

sub32922-16021

sub32926-30011

sub32941-16010

sub90460-14085

main32922-16020iAL20,21..3FC198205-198306

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-16010iAL20,21..3FC198205-198408

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-16010iAL20,21..3FC198205-198408

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-16010iAL20,21..3FC198205-198408

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iAL20,21..3FC198205-198408

L=25,ID=8

9046212085

main90462-12085

9046212086

main90462-12086

9151160820

main91511-60820

9161140614

main91611-40614

9161140816

main91611-40816

18 parts on this diagram · 2 diagrams in section
