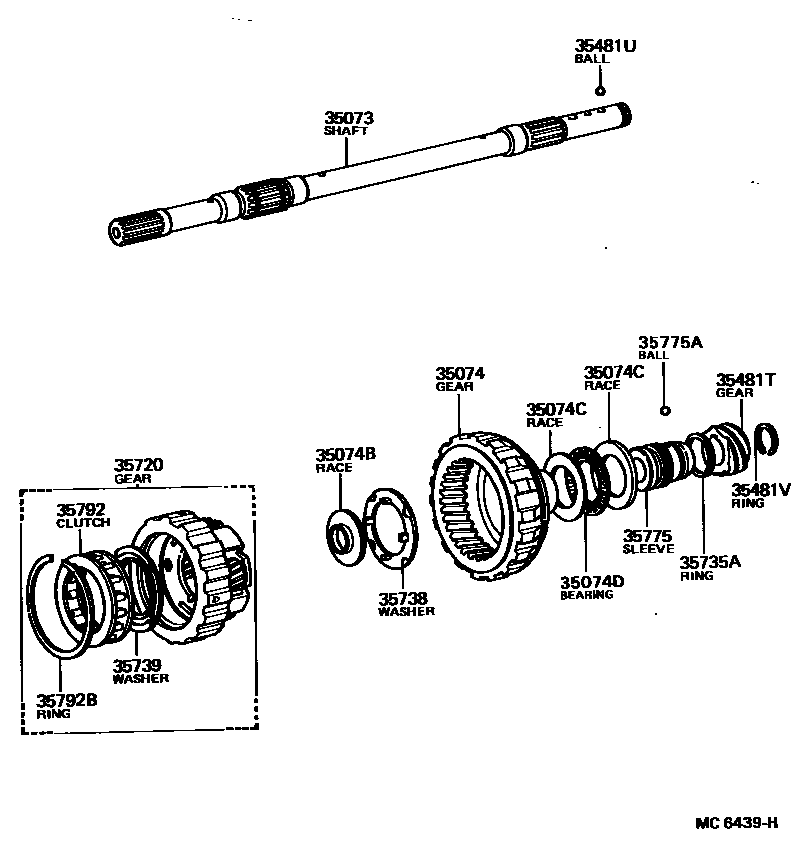

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35073SHAFT SUB-ASSY, OUTPUT
35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)
35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)
FLANGE SIDE
CASE SIDE
35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
35481TGEAR, SPEEDMETER DRIVE (ATM)
N=6
35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
T=1.60-1.65
35720GEAR ASSY, FRONT PLANETARY
35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35739WASHER, PLANETARY CARRIER THRUST, NO.3
35775ABALL, OUTPUT SHAFT SLEEVE
35792CLUTCH, 1 WAY, NO.2
sub35792-30011
35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
16 parts on this diagram · 1 diagram in section
