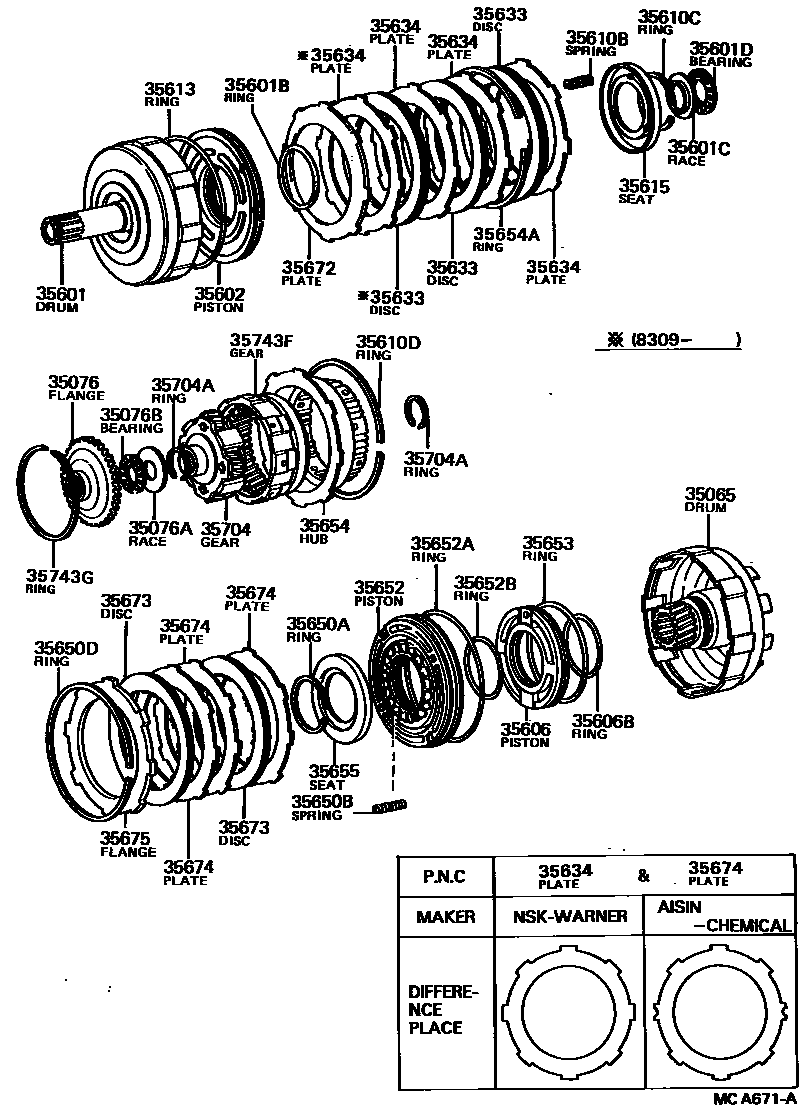

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35065DRUM SUB-ASSY, REAR CLUTCH & FRONT SUN GEAR
35076FLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
35076ARACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE)
35076BBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)
35601DRUM SUB-ASSY, CLUTCH
35601BRING, O (FOR FRONT CLUTCH DRUM)
35601CRACE, THRUST BEARING (FOR FRONT CLUTCH DRUM)
35601DBEARING, THRUST NEEDLE ROLLER (FOR FRONT CLUTCH DRUM)
35602PISTON SUB-ASSY, FRONT CLUTCH
35606PISTON SUB-ASSY, REAR CLUTCH
35606BRING (FOR REAR CLUTCH PISTON INNER)
35610BSPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)
35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)
35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)
35613RING, CLUTCH PISTON OIL SEAL, OUTER
35615SEAT, CLUTCH PISTON RETURN SPRING
35633DISC, CLUTCH (FOR FRONT CLUTCH)
35634PLATE, FRONT CLUTCH
T=1.8,NSK-WARNER
35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)
35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)
35650DRING, HOLE SNAP (FOR REAR MULTIPLE DISC CLUTCH)
35652PISTON, REAR CLUTCH, NO.2
35652ARING (FOR REAR CLUTCH OUTER)
35652BRING (FOR REAR CLUTCH PISTON INNER)
35653RING, REAR CLUTCH OIL SEAL, OUTER
35654HUB, REAR CLUTCH
35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)
35655SEAT, REAR CLUTCH PISTON RETURN SPRING
35672PLATE, CLUTCH CUSHION
35673DISC, REAR CLUTCH
35674PLATE, REAR CLUTCH
NSK-WARNER
35675FLANGE, REAR CLUTCH
35704GEAR SUB-ASSY, FRONT PLANETARY
35704ARING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)
35743FGEAR, FRONT PLANETARY RING
35743GRING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
36 parts on this diagram · 1 diagram in section
