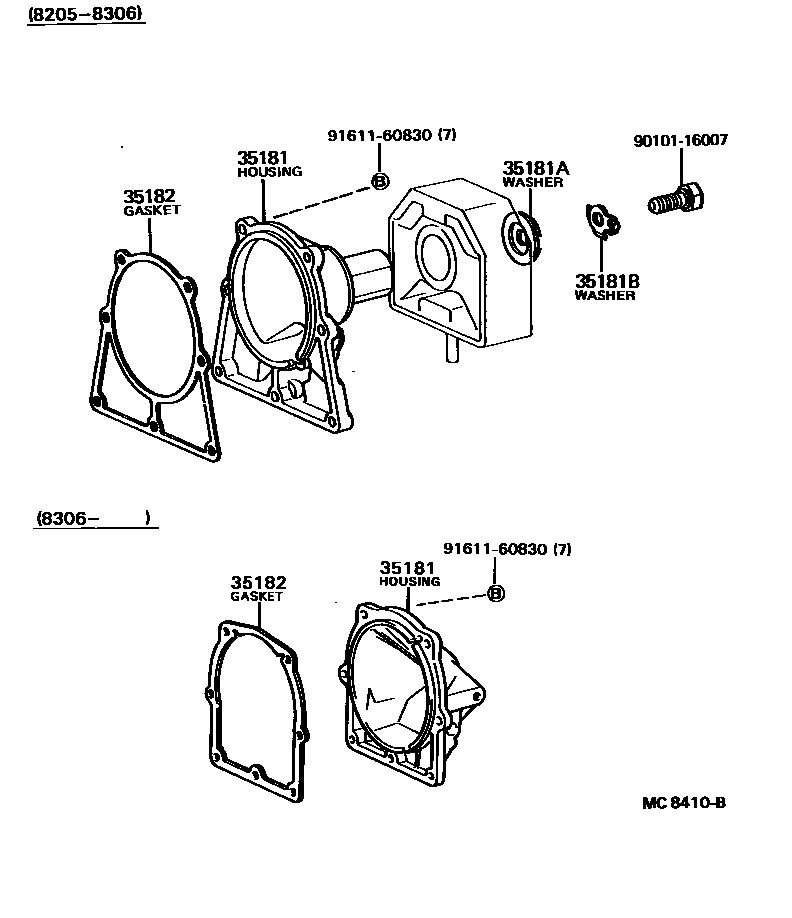

EXTENSION HOUSING (ATM)

35181HOUSING, EXTENSION (ATM)

main35181-16010iAL20,21..3FC198205-198306

main35181-16011iAL20,21..3FC198306-198408

35181AWASHER, PLATE (FOR REAR MOUNT STOPPER)

main90214-17001iAL20,21..3FC198205-198306

35181BWASHER, LOCK (FOR REAR MOUNT STOPPER)

main90215-16001iAL20,21..3FC198205-198306

35182GASKET, EXTENSION HOUSING (ATM)

main35182-16010iAL20,21..3FC198205-198306

sub35182-16030

main35182-16011iAL20,21..3FC198306-198408

sub35182-16012

9010116007

main90101-16007

9161160830

main91611-60830

6 parts on this diagram · 1 diagram in section
