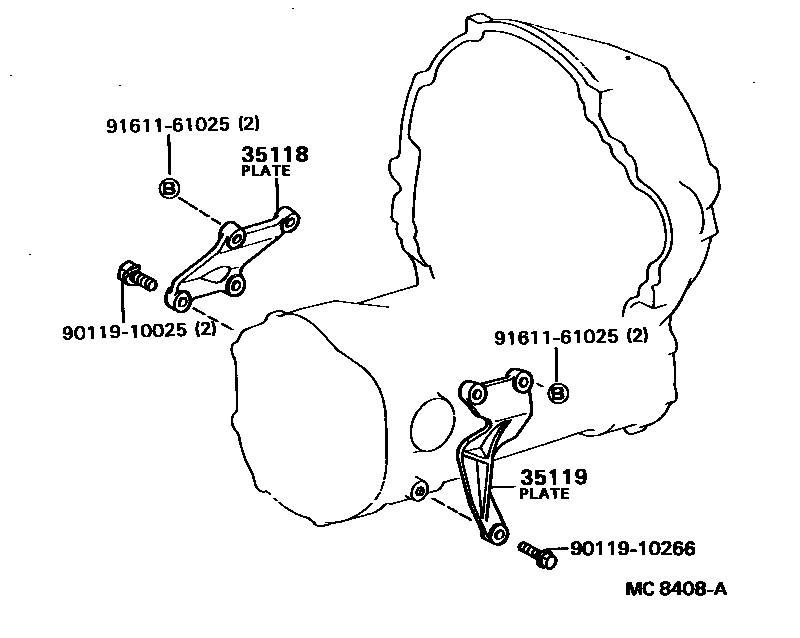

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

35118PLATE, STIFENER, RH (ATM)

main33118-16010iAL20,21..3FC¥1,320198205-198408

35119PLATE, STIFENER, LH (ATM)

main33119-16030iAL20,21..3FC¥1,440198205-198408

9011910025

main90119-10025¥140

9011910266

main90119-10266¥130

9161161025

main91611-61025¥240

5 parts on this diagram · 2 diagrams in section
