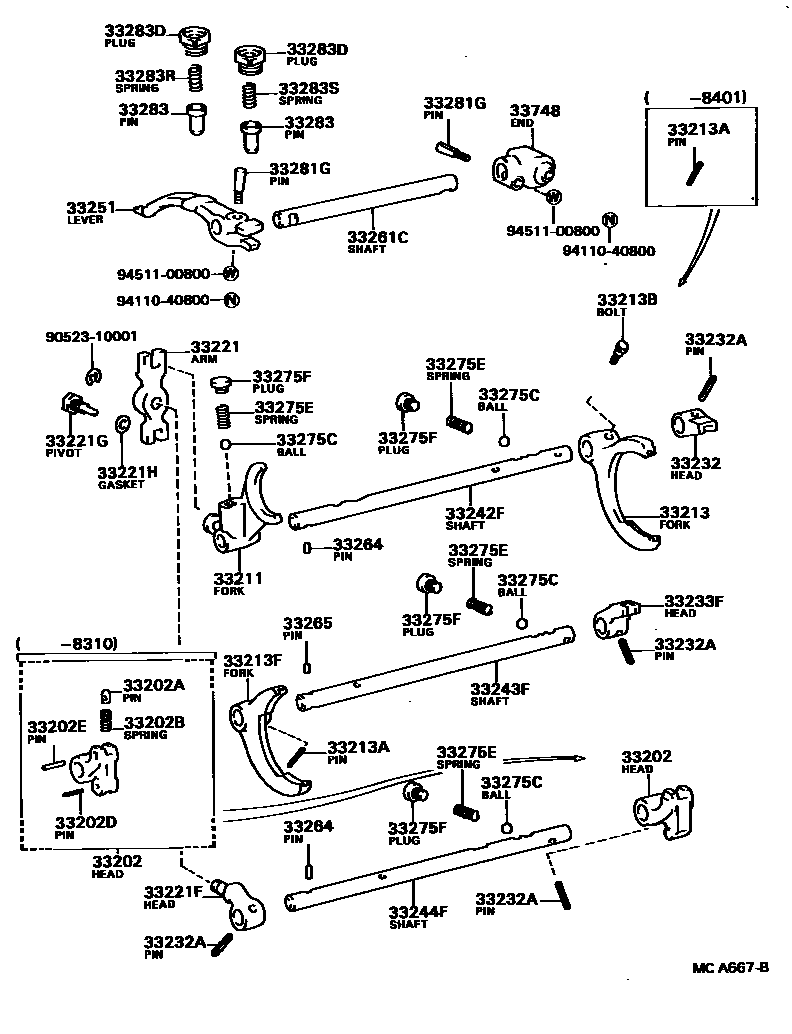

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33202HEAD SUB-ASSY, REVERSE SHIFT
33202APIN, REVERSE RESTRICT, NO.2
33202BSPRING, COMPRESSION, NO.1(FOR REVERSE RESTRICT PIN)
33202DPIN, SLOTTED SPRING(FOR REVERSE RESTRICT)
33202EPIN, STRAIGHT(FOR REVERSE RESTRICT)
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33221FHEAD, REVERSE SHIFT ARM
33221GPIVOT, REVERSE SHIFT ARM
33221HGASKET(FOR PIVOT REVERSE SHIFT ARM)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33233FHEAD, 3RD & 4TH SHIFT
33242SHAFT, GEAR SHIFT FORK, NO.1
33244FSHAFT,5TH & REVERSE SHIFT
33251LEVER, SHIFT & SELECT
33261CSHAFT, SHIFT & SELECT LEVER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33265PIN, SHIFT INTERLOCK, NO.2
L=9.9,OD=5
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=14.64
L=21.2
33275FPLUG (FOR SHIFT DETENT BALL)
33281GPIN, LEVER LOCK
33283PIN, REVERSE RESTRICT, NO.1
TRANSFER ADAPTER SIDE
T/M CASE SIDE
SHIFT HEAD NO.4
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283RSPRING, COMPRESSION (FOR REVERSE RESTRICT PIN RH)
33283SSPRING, COMPRESSION (FOR REVERSE RESTRICT PIN LH)
33748END, GEAR SHIFTING ROD
9052310001
main90523-10001
9411040800
main94110-40800
9451100800
main94511-00800
38 parts on this diagram · 4 diagrams in section
