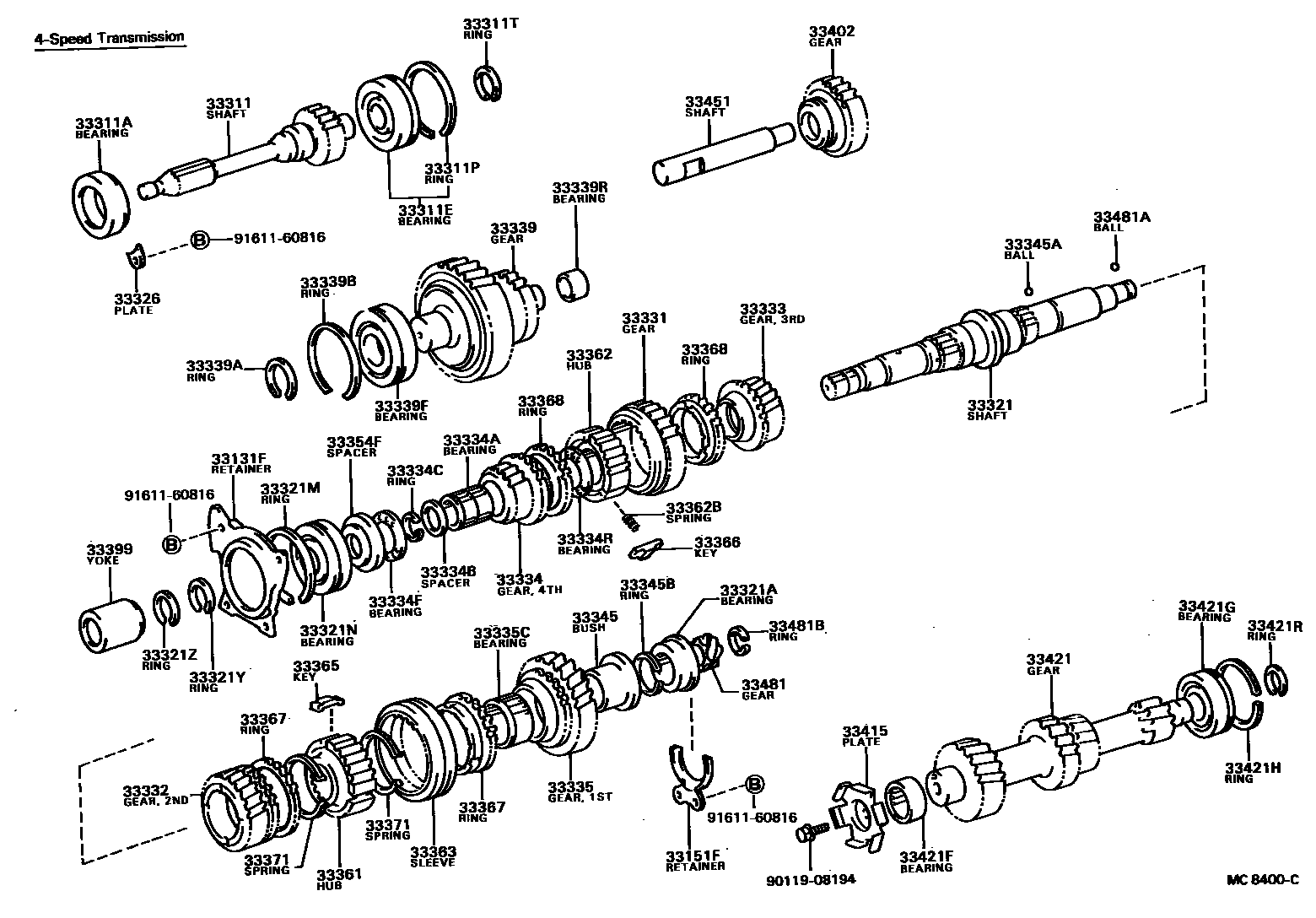

TRANSMISSION GEAR (MTM)
33131FRETAINER, OUTPUT SHAFT BEARING, FRONT
33151FRETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33311SHAFT, INPUT
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
sub90363-25025
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33311TRING, SHAFT SNAP (FOR INPUT SHAFT)
T=2.10-2.15,T=2.10-2.15
T=2.25-2.30,T=2.25-2.30
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321MRING, SHAFT SNAP (FOR BEARING)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321YRING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT BEARING)
T=2.45-2.5,T=2.45-2.50
T=2.50-2.55,T=2.50-2.55
T=2.10-2.15,T=2.10-2.15
T=2.20-2.25,T=2.20-2.25
T=2.15-2.20,T=2.15-2.20
T=2.25-2.30,T=2.25-2.30
T=2.30-2.35,T=2.30-2.35
T=2.35-2.40,T=2.35-2.40
T=2.40-2.45,T=2.40-2.45
33321ZRING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT)
T=2.45-2.5,T=2.45-2.50
T=2.50-2.55
T=2.50-2.55,T=2.50-2.55
T=2.55-2.60,T=2.55-2.60
T=2.10-2.15,T=2.10-2.15
T=2.20-2.25,T=2.20-2.25
T=2.15-2.20,T=2.15-2.20
T=2.25-2.30,T=2.25-2.30
T=2.30-2.35,T=2.30-2.35
T=2.35-2.40,T=2.35-2.40
T=2.40-2.45,T=2.40-2.45
33326PLATE, BEARING LOCK
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33334CRING, SHAFT SNAP (FOR 4TH GEAR THRUST FRONT NEEDLE BEARING)
33334FBEARING, THRUST NEEDLE ROLLER (FOR 4TH GEAR FRONT)
33334RBEARING, THRUST NEEDLE ROLLER (FOR 4TH GEAR REAR)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33339ARING, SHAFT SNAP (FOR IDLER GEAR)
T=2.40-2.45,T=2.40-2.45
T=2.45-2.50,T=2.45-2.50
33339BRING, SHAFT SNAP (FOR IDLER GEAR FRONT BEARING)
33339RBEARING, NEEDLE ROLLER (FOR IDLER GEAR REAR)
33345BUSH, 1ST GEAR
33345ABALL (FOR 1ST GEAR BUSH)
33345BRING, SHAFT SNAP (FOR 1ST GEAR BUSH)
T=2.15-2.20,T=2.15-2.20
T=2.20-2.25,T=2.20-2.25
T=2.25-2.30,T=2.25-2.30
T=2.30-2.35,T=2.30-2.35
T=2.35-2.40,T=2.35-2.40
T=2.40-2.45,T=2.40-2.45
T=2.45-2.50,T=2.45-2.50
T=2.50-2.55,T=2.50-2.55
T=2.55-2.60,T=2.55-2.60
33354FSPACER (FOR 4TH GEAR FRONT THRUST BEARING)
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33399YOKE, TRANSMISSION SLEEVE (MTM)
33402GEAR SUB-ASSY, REVERSE IDLER
33415PLATE, COUNTER GEAR
33421GEAR, COUNTER
33421FBEARING, NEEDLE ROLLER(FOR COUNTER GEAR FRONT)
33421GBEARING, RADIAL BALL(FOR COUNTER GEAR REAR)
33421HRING, SHAFT SNAP(FOR COUNTER GEAR REAR BEARING)
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
T=1.80-1.85,T=1.80-1.85
T=1.925-1.975,T=1.925-1.975
T=1.975-2.025,T=1.975-2.025
T=2.025-2.075,T=2.025-2.075
T=2.075-2.125,T=2.075-2.125
T=2.125-2.175,T=2.125-2.175
T=2.175-2.225,T=2.175-2.225
33451SHAFT, REVERSE IDLER GEAR
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.60-1.65
9011908194
main90119-08194
9161160816
main91611-60816
57 parts on this diagram · 3 diagrams in section
