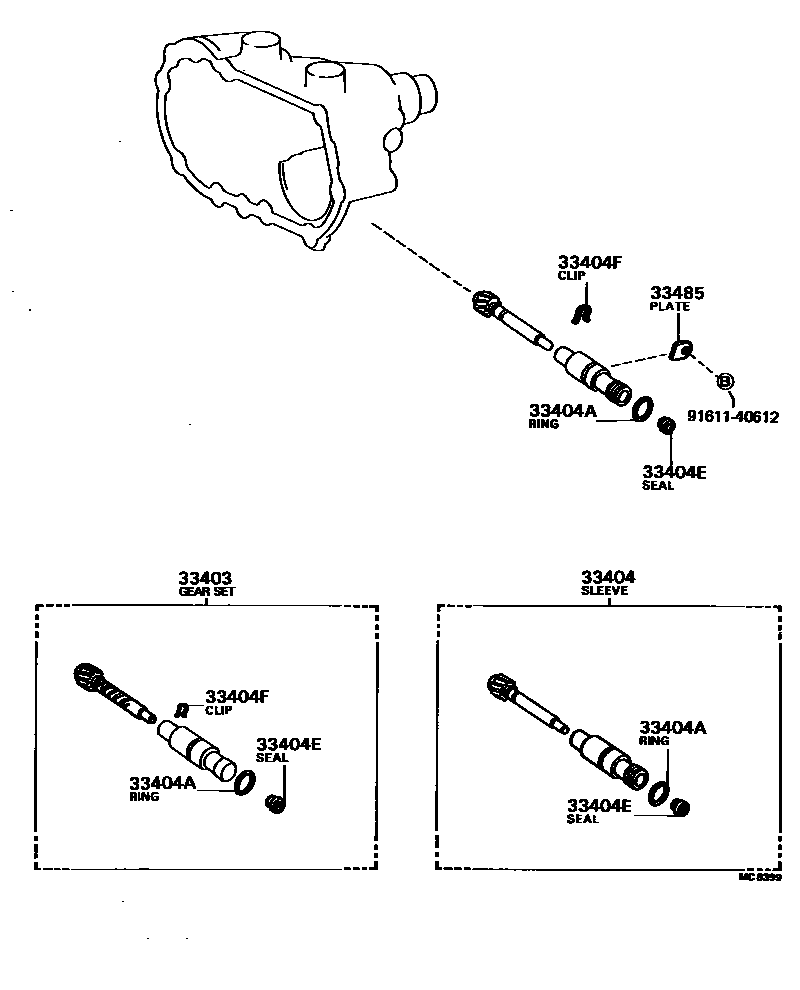

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19105iAL2#..MTM..EUR198205-198308

N=19,MARK 19:6,N=19

main33403-19115iAL20,21..MTM198205-198408

N=20

main33403-19335iAL25198408-198801

N=22,MARK 22:6,N=22

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-16010iAL2#..MTM198205-198801

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96710-02018iAL2#..MTM..(EUR,GEN)198205-198210

sub96711-19018

main96711-24018iAL2#..MTM198210-198801

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAL2#..MTM198205-198801

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAL2#..MTM198205-198801

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iAL2#..MTM198205-198801

9161140612

main91611-40612

7 parts on this diagram · 1 diagram in section
