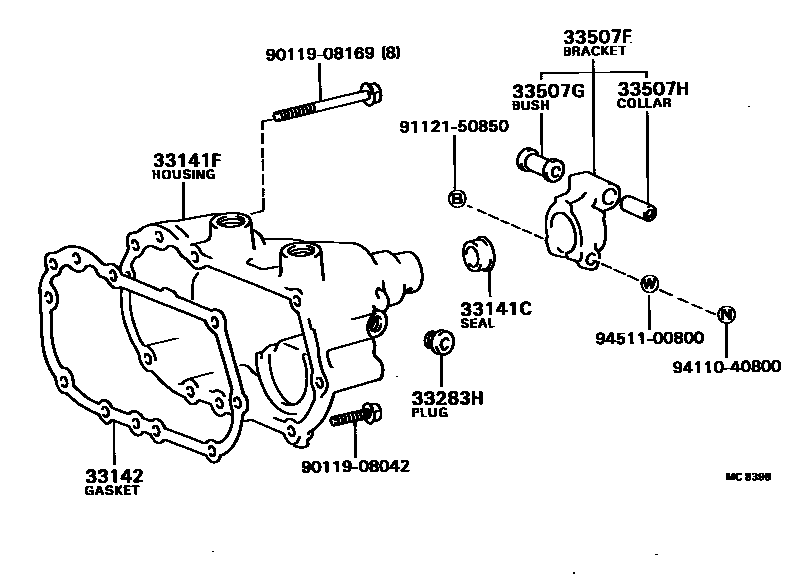

EXTENSION HOUSING (MTM)

0001 1 0002 1

33141CSEAL, OIL(FOR EXTENSION HOUSING REAR)

main90311-14001iAL20,21..MTM198205-198408

main90311-32010iAL25198208-198801

33141FHOUSING, EXTENSION(MTM)

main33103-16010iAL25198208-198801

main33141-16020iAL20,21..MTM198205-198408

33142GASKET, EXTENSION HOUSING(MTM)

main33142-16010iAL20,21..MTM198205-198408

main33142-16020iAL25198208-198801

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065iAL20,21..MTM198205-198408

33507FBRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-16010iAL20,21..MTM198205-198408

33507GBUSH (FOR CONTROL LEVER HOUSING SUPPORT BRACKET)

main90385-10008iAL20,21..MTM198205-198408

33507HCOLLAR (FOR CONTROL LEVER HOUSING SUPPORT BRACKET)

main90387-08012iAL20,21..MTM198205-198408

9011908042

main90119-08042

9011908169

main90119-08169

9112150850

main91121-50850

9411040800

main94110-40800

9451100800

main94511-00800

12 parts on this diagram · 2 diagrams in section
