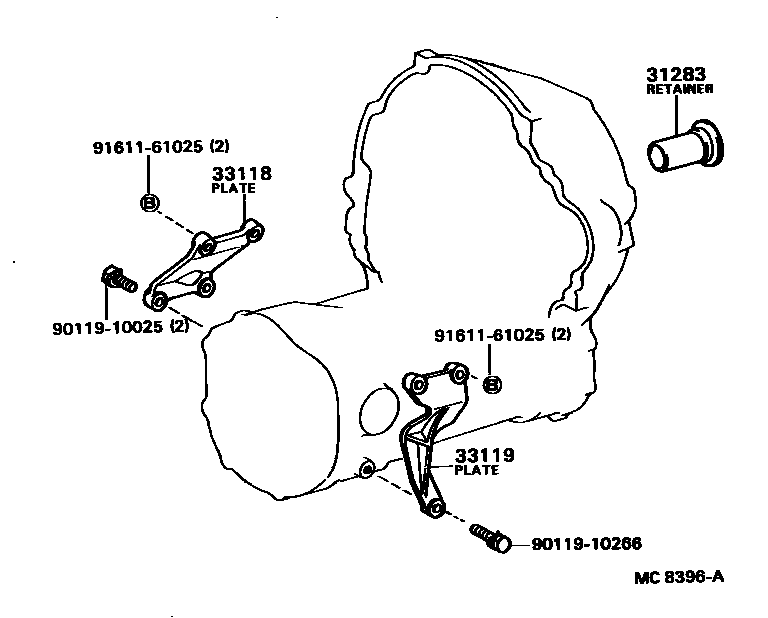

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31283RETAINER, CLUTCH RELEASE BEARING HUB

main31283-16010iAL2#..MTM198205-198801

33118PLATE, STIFFENER, RH(MTM)

main33118-16010iAL2#..MTM198205-198801

33119PLATE, STIFFENER, LH(MTM)

main33119-16030iAL2#..MTM198205-198801

9011910025

main90119-10025

9011910266

main90119-10266

9161161025

main91611-61025

6 parts on this diagram · 2 diagrams in section
