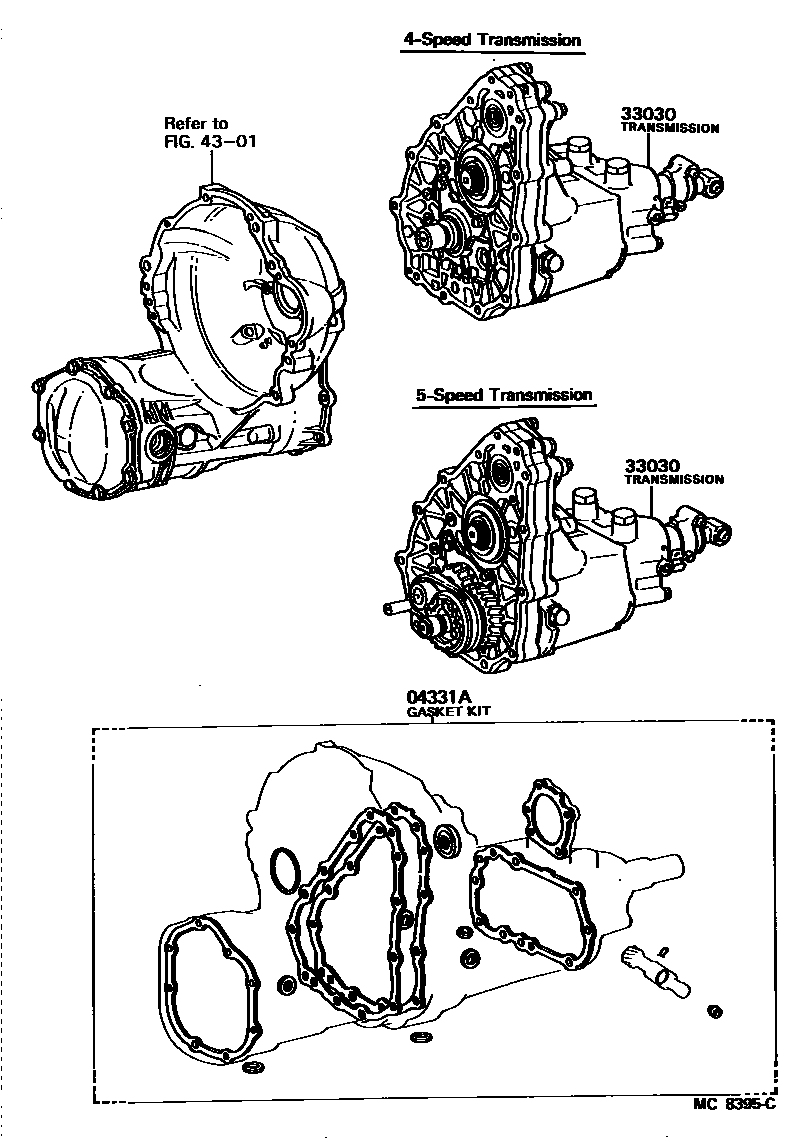

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-16010iAL20,21..MTM198205-198408

main04331-16020iAL25198208-198801

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-16908iAL20..4F198205-198408

main33030-16909iAL21..3DS..DLX198209-198408

SWEDEN SPEC

sub33030-16912

main33030-16909iAL20..5F198205-198408

sub33030-16912

main33030-16911iAL25198208-198408

main33030-16912iAL21198209-198408

main33030-16917iAL25198408-198801

4301

3 parts on this diagram · 2 diagrams in section
