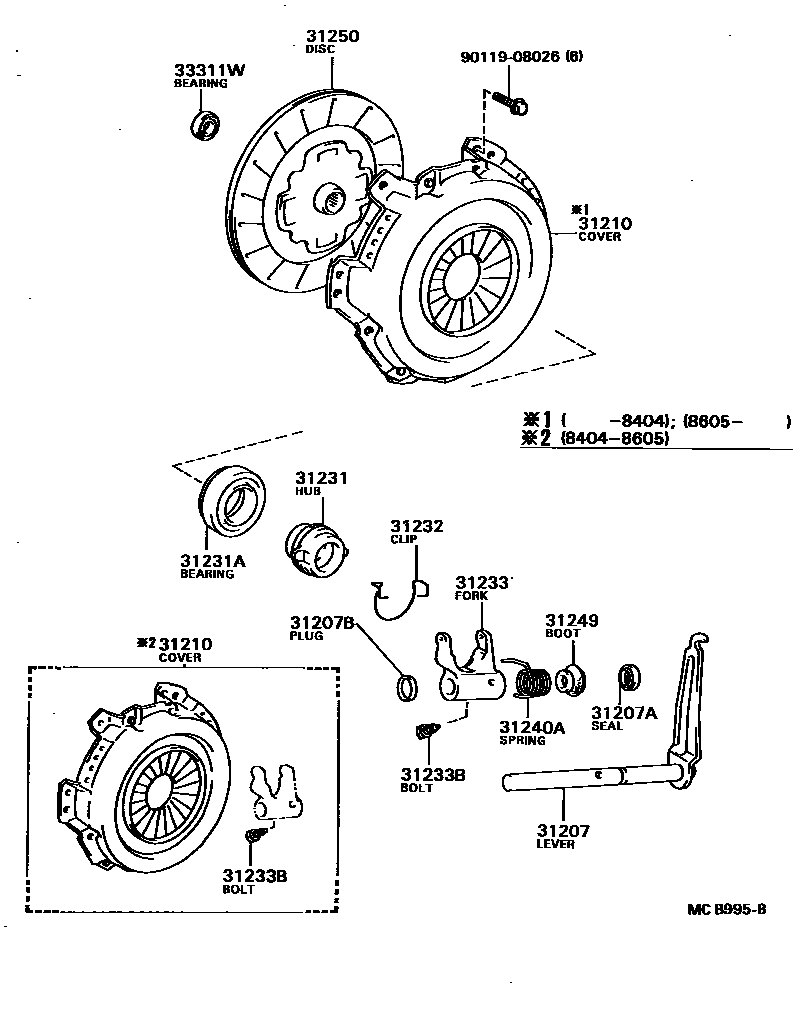

CLUTCH & RELEASE FORK

31207LEVER SUB-ASSY, CLUTCH RELEASE FORK

main31207-16030iAL20,25..RHD..MTM198205-198801

main31207-16040iAL2#..LHD..MTM198205-198801

31207ASEAL, OIL(FOR CLUTCH RELEASE FORK LEVER)

main90313-18001iAL2#..MTM198205-198801

31207BPLUG(FOR CLUTCH RELEASE FORK LEVER)

main96411-12500iAL2#..MTM198205-198612

sub96411-42500

main96411-42500iAL25198612-198801

31210COVER ASSY, CLUTCH

main31210-16030iAL2#..MTM..(EUR,GEN)198205-198302

sub31210-16031

main31210-16040iAL2#..MTM198302-198404

sub31210-19015

main31210-16110iAL25..ARL,GEN198602-198801

sub31210-16111

main31210-19015iAL2#..MTM198404-198605

sub31210-19016

31231HUB, CLUTCH RELEASE BEARING

main31231-16030iAL2#..MTM198205-198801

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iAL2#..MTM198205-198801

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-16020iAL2#..MTM198205-198801

31233FORK, CLUTCH RELEASE

main31233-16011iAL2#..MTM198205-198801

31233BBOLT(FOR RELEASE FORK & RELEASE LEVER SETTING)

main90109-10026iAL2#..MTM198205-198404

sub90109-10079

main90109-10079iAL2#..MTM198404-198801

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90508-32004iAL2#..MTM198205-198801

31249BOOT, CLUTCH RELEASE FORK SHAFT

main31249-16010iAL2#..MTM198205-198801

31250DISC ASSY, CLUTCH

main31250-16020iAL2#..MTM..(EUR,GEN)198205-198304

sub31250-16030

main31250-16030iAL2#..MTM198304-198408

sub31250-16031

main31250-16040iAL25198408-198801

sub31250-12173

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iAL2#..MTM198205-198801

9011908026

main90119-08026

14 parts on this diagram · 1 diagram in section
