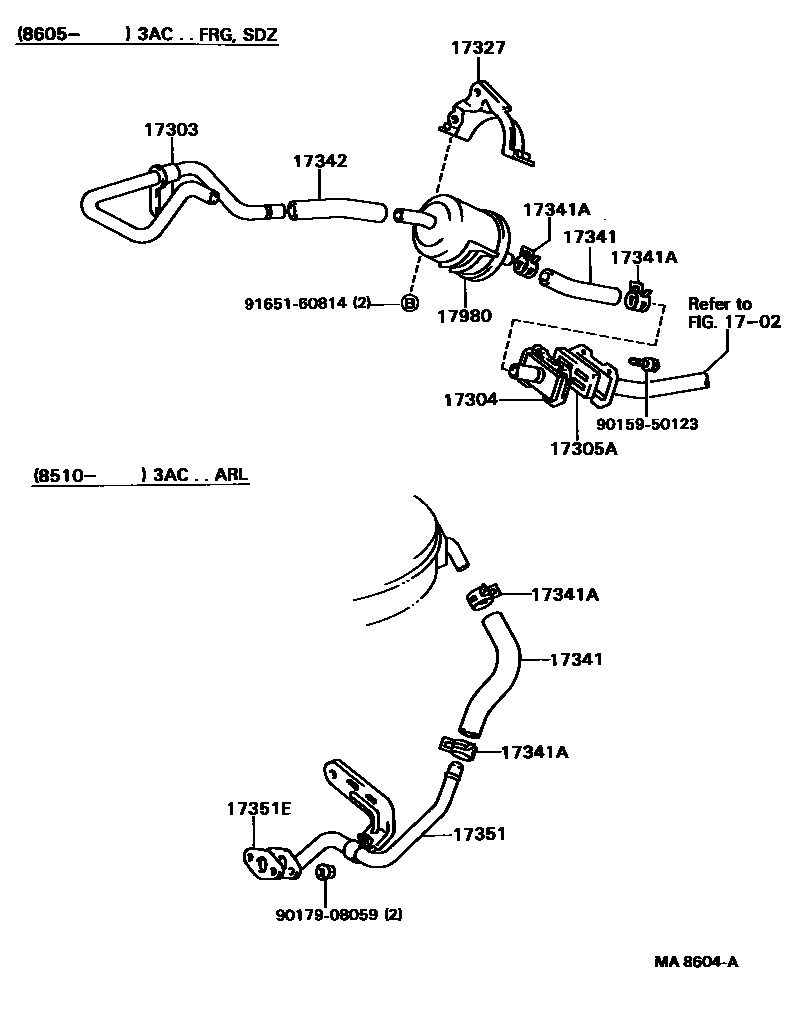

MANIFOLD AIR INJECTION SYSTEM
1702
17303PIPE SUB-ASSY, AIR
17304TUBE SUB-ASSY, AIR, RH
17305AVALVE SUB-ASSY, REED
17327BRACKET, REED VALVE
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
sub90467-28007
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17351MANIFOLD, AIR INJECTION
17351EGASKET(FOR AIR INJECTION MANIFOLD)
sub89466-20020
17980FILTER ASSY, AIR SUCTION
9015950123
main90159-50123
9017908059
main90179-08059
9165160814
main91651-60814
14 parts on this diagram · 1 diagram in section
