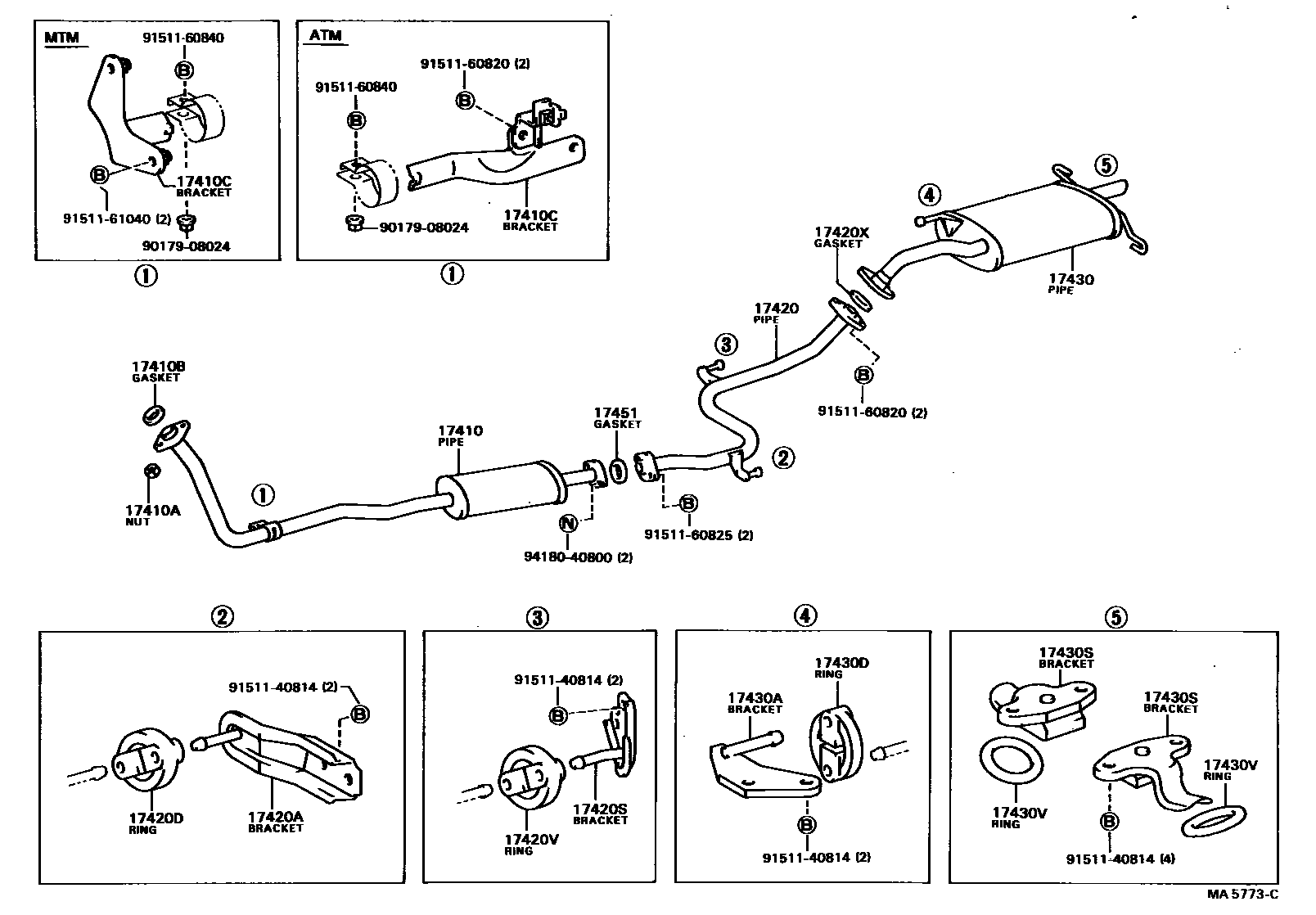

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-15090i2A,3AC..AL20,21198205-198408

main17410-15120i3AC..AL25..SDZ198605-198801

SWEDEN SPEC

main17410-15120i3A#..AL25198208-198605

main17410-15130i3AC..AL25198511-198801

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010i2A,3A#..AL2#198205-198404

main90179-10070i2A,3A#..AL2#198404-198801

17410BGASKET, EXHAUST PIPE

main90917-06004i2A,3A#..AL2#198205-198801

sub90917-06039

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17570-15030i2A,3AC..AL20,21..3FC198205-198408

main17571-15070i2A,3A#..AL2#..MTM198205-198801

17420PIPE ASSY, EXHAUST, CENTER

main17420-15040i2A,3AC..AL20,21198205-198408

17420ABRACKET, EXHAUST PIPE CENTER, FRONT

main17506-15020i2A,3AC..AL20,21198205-198408

17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT

main17565-15020i2A,3AC..AL20,21198205-198408

sub17565-11160

17420SBRACKET, EXHAUST PIPE CENTER, REAR

main17507-15020i2A,3AC..AL20,21198205-198408

17420VBOLT OR RING, EXHAUST PIPE CENTER, REAR

main17565-15020i2A,3AC..AL20,21198205-198408

sub17565-11160

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06026i2A,3AC..AL20,21198205-198408

sub90917-06060

17430PIPE ASSY, EXHAUST, TAIL

main17430-15120i2A,3AC..AL20,21198205-198408

sub17430-15130

main17430-15170i3A#..AL25198208-198408

sub17430-15171

main17430-15171i3A..AL25198605-198801

SWEDEN SPEC

main17430-15171i3A#..AL25198408-198605

main17430-15181i3AC..AL25..ARL198511-198801

main17430-15191i3AC..AL25..EUR198605-198801

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17506-13020i3A#..AL25198208-198801

main17508-15010i2A,3AC..AL20,21198205-198408

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17565-15020i2A,3AC..AL20,21198205-198408

sub17565-11160

main90301-36001i3A#..AL25198208-198801

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-13010i3A#..AL25198208-198801

main17509-63010i2A,3AC..AL20,21198205-198408

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-34207i2A,3AC..AL20,21198205-198408

main90301-36001i3A#..AL25198208-198801

17451GASKET, EXHAUST PIPE

main90917-06012i3AC..AL25198511-198801

RR

sub90917-06045

main90917-06020i3AC..AL25..ARL198511-198801

FR

sub90917-06044

main90917-06026i3A#..AL25..EUR,GEN198205-198605

sub90917-06060

main90917-06026i3A..AL25198605-198801

SWEDEN SPEC

sub90917-06060

9017908024

main90179-08024

9151140814

main91511-40814

9151160820

main91511-60820

9151160825

main91511-60825

9151160840

main91511-60840

9151161040

main91511-61040

9418040800

main94180-40800

23 parts on this diagram · 2 diagrams in section
