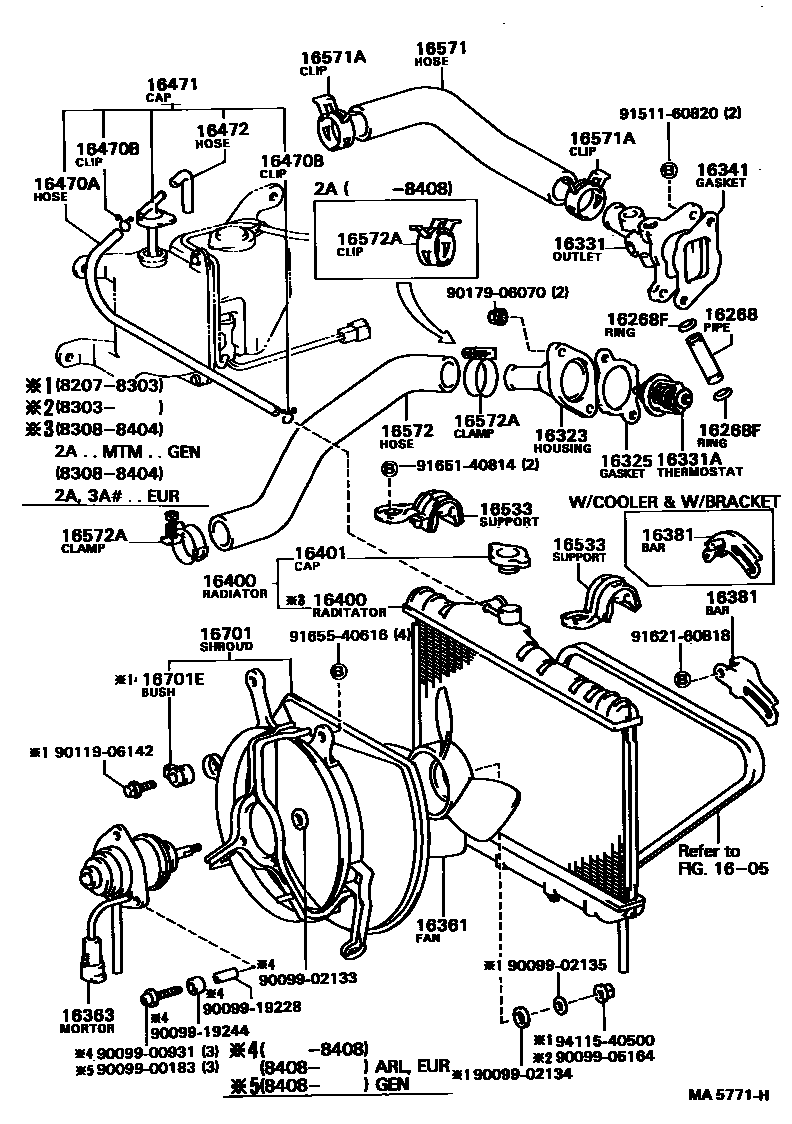

RADIATOR & WATER OUTLET

0001 1 0002 1

1605

16268PIPE, WATER BY-PASS, NO.1

main16268-15010i2A,3A#..AL2#¥1,040198205-198503

sub16268-15011¥1,060

main16268-15011i3A#..AL25¥1,060198503-198801

16268FRING, O(FOR WATER BY-PASS PIPE)

main96711-24013i2A,3A#..AL2#¥160198205-198801

16323HOUSING, WATER INLET

main16323-15020i2A,3A#..AL2#¥2,840198205-198801

16325GASKET, WATER INLET HOUSING, NO.1

main16325-70021i2A,3A#..AL2#¥500198205-198801

16331OUTLET, WATER

main16331-15040i3AC..AL25..EUR¥3,040198605-198801

main16331-15050i2A,3A#..AL2#¥4,280198205-198605

main16331-15050i3A..AL25;3AC..AL25..ARL¥4,280198605-198801

SWEDEN SPEC

16331ATHERMOSTAT

main90916-03046i2A,3A#..AL2#¥1,740198205-198801

*WAX 82-95,*WAX 82-95

16341GASKET, WATER OUTLET

main16341-15011i2A,3A#..AL2#¥340198205-198801

sub16341-15012¥320

16361FAN

main16361-15030i2A,3A#..AL2#..EUR,GEN¥3,640198205-198303

sub16361-15031¥3,650

main16361-15031i2A,3A#..AL2#¥3,650198303-198801

main16361-15060i3A..AL25..GEN¥3,650198408-198801

16363MOTOR, COOLING FAN

main16363-15070i2A,3A#..AL2#¥22,100198205-198801

main16363-15100i3A..AL25..GEN¥23,900198408-198801

16381BAR, FAN BELT ADJUSTING

main16381-15030i2A,3A#..AL2#¥1,350198205-198801

main88437-16030i3A..AL25..RHD..GEN198205-198801

W/COOLER

main88437-16030i3A..AL25..LHD198408-198801

W/COOLER & W/BRACKET

main88437-16040i3A#..AL25..RHD..(ARL,GEN)198205-198801

W/COOLER

16400RADIATOR ASSY

main16400-15120i3A#..AL25¥30,300198208-198801

sub16400-15130¥30,300

main16400-15130i2A..AL20..3FC..GEN¥30,300198205-198408

main16400-15140i3A#..AL25..EUR¥30,300198205-198801

sub16400-15120¥30,300

main16400-15150i2A,3AC..AL20,21..3FC..EUR¥30,300198205-198408

sub16400-15130¥30,300

main16410-15140i2A,3AC..AL20,21..MTM..EUR¥30,300198308-198404

sub16400-15140¥30,300

main16410-15150i2A,3AC..AL20,21..3FC..EUR198308-198404

sub16400-15150¥30,300

16401CAP SUB-ASSY, RADIATOR

main16401-63010i2A,3A#..AL2#¥1,170198205-198801

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33091i3A#..AL25..EUR198408-198801

W/RR WIPER

sub90099-33370

main90099-33392i2A,3A#..AL2#..EUR198208-198408

W/RR WIPER

sub90099-33370

main90445-12043i2A,3A#..AL20,25..ARL,GEN¥480198205-198801

L=600(*H,L=360)

sub90445-12078¥580

main90445-12905i2A..AL20..GEN¥540198205-198208

L=600(*H,L=450)

sub90445-12078¥580

main90445-12905i2A..AL20..EUG¥540198205-198208

L=600(*H,L=450),W/RR WIPER

sub90445-12078¥580

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2A,3A#..AL2#¥100198205-198801

16471CAP SUB-ASSY, RESERVE TANK

main16405-15010i2A,3A#..AL20,25..ARL,GEN¥1,680198205-198801

main16405-15020i2A,3A#..AL2#..EUR¥1,780198205-198801

W/RR WIPER

16472HOSE, BREATHER

main85338-16010i2A..AL20198205-198208

sub85338-12010

main85338-16020i2A,3A#..AL2#198208-198801

sub85338-12010

16533SUPPORT, RADIATOR, UPPER

main16505-15010i2A,3A#..AL2#¥1,190198205-198502

RH

sub16505-15040¥1,180

main16505-15040i3A#..AL25¥1,180198502-198801

RH

main16506-15010i2A,3A#..AL2#¥1,190198205-198502

LH

sub16506-15030¥1,180

main16506-15030i3A#..AL25¥1,180198502-198801

LH

16571HOSE, RADIATOR, INLET

main16571-15081i2A,3A#..AL2#¥1,820198205-198408

main16571-15082i3A#..AL25¥1,960198408-198801

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34001i2A,3A#..AL2#¥330198205-198708

sub90467-33003¥350

main90467-34003i3A#..AL25¥400198708-198801

sub90467-34004¥390

16572HOSE, RADIATOR, OUTLET

main16572-15112i3AC..AL25..ARL¥2,620198308-198801

W/PS

main16572-15120i2A,3A#..AL2#¥2,150198205-198801

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34001i2A..AL20¥330198205-198408

WATER INLET SIDE

sub90467-33003¥350

main90467-34003i3A#..AL25¥400198708-198801

sub90467-34004¥390

main96111-10400i3A#..AL21,25¥140198208-198708

main96111-10400i2A..AL20¥140198205-198408

RADIATOR SIDE

16701SHROUD SUB-ASSY, FAN

main16711-15080i2A,3A#..AL2#..EUR,GEN¥8,200198205-198303

sub16711-15081¥8,100

main16711-15081i2A,3A#..AL2#¥8,100198303-198801

main16711-15170i3A..AL25..GEN¥8,600198408-198711

sub16711-15171¥8,400

main16711-15171i3A..AL25..GEN¥8,400198711-198801

16701EBUSH(FOR FAN SHROUD)

main90385-12001i2A,3A#..AL2#..EUR,GEN¥390198207-198303

9009900183

main90099-00183

9009900931

main90099-00931

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9009905164

main90099-05164¥0

9009919228

main90099-19228

9009919244

main90099-19244

9011906142

main90119-06142¥120

9017906070

main90179-06070¥180

9151160820

main91511-60820¥130

9162160818

main91621-60818¥130

9165140814

main91651-40814¥180

9165540616

main91655-40616¥120

9411540500

main94115-40500¥110

39 parts on this diagram · 2 diagrams in section
