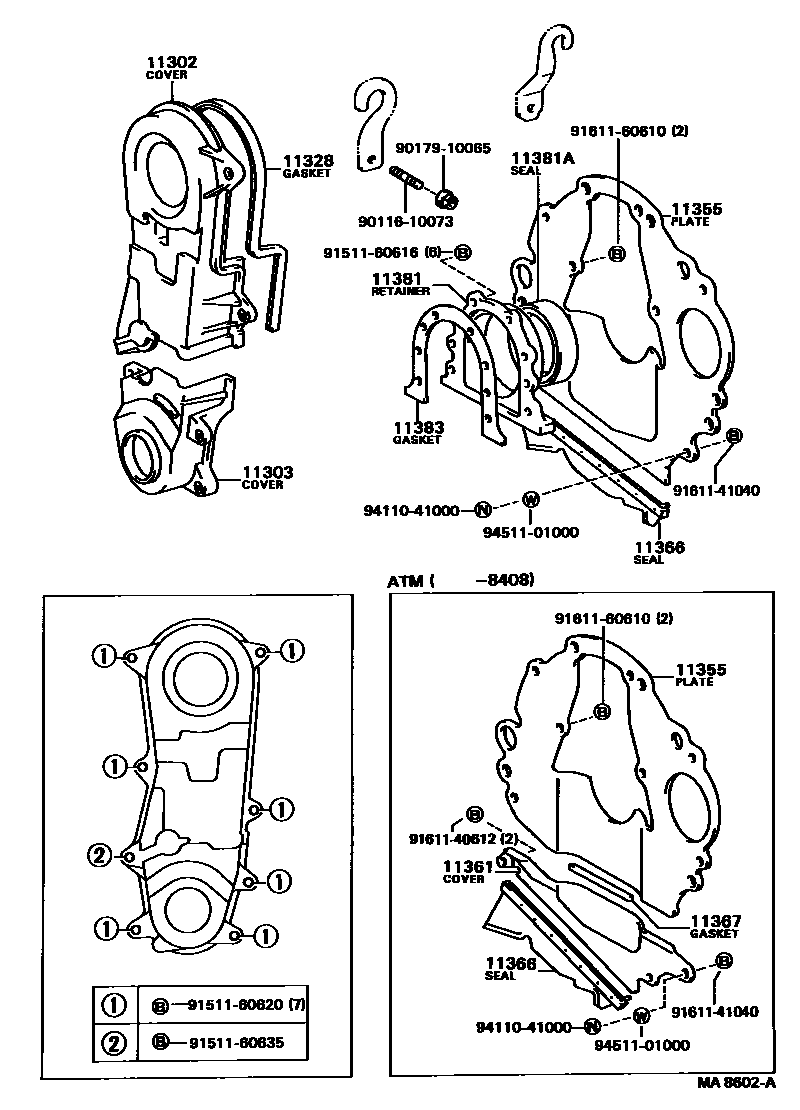

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15020i2A,3A#..AL2#198205-198801

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15020i2A,3A#..AL2#198205-198801

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-15020i2A,3A#..AL2#198205-198801

11355PLATE, REAR END

main11355-15010i2A,3A#..AL2#..MTM198205-198801

main11355-15040i2A,3AC..AL20,21..3FC198205-198408

11361COVER, FLYWHEEL HOUSING UNDER

main11361-15010i2A,3AC..AL20,21..3FC198205-198408

11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST

main11366-15010i2A,3A#..AL2#..MTM198205-198801

main11366-15020i2A,3AC..AL20,21..3FC198205-198408

11367GASKET, FLYWHEEL HOUSING UNDER

main11367-15010i2A,3AC..AL20,21..3FC198205-198408

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i2A,3A#..AL2#198205-198801

11381ASEAL, ENGINE REAR OIL

main90311-70004i2A,3A#..AL2#198205-198801

sub90311-70007

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-15010i2A,3A#..AL2#198205-198801

sub11383-15011

9011610073

main90116-10073

9017910065

main90179-10065

9151160616

main91511-60616

9151160620

main91511-60620

9151160635

main91511-60635

9161140612

main91611-40612

9161141040

main91611-41040

9161160610

main91611-60610

9411041000

main94110-41000

9451101000

main94511-01000

20 parts on this diagram · 1 diagram in section
