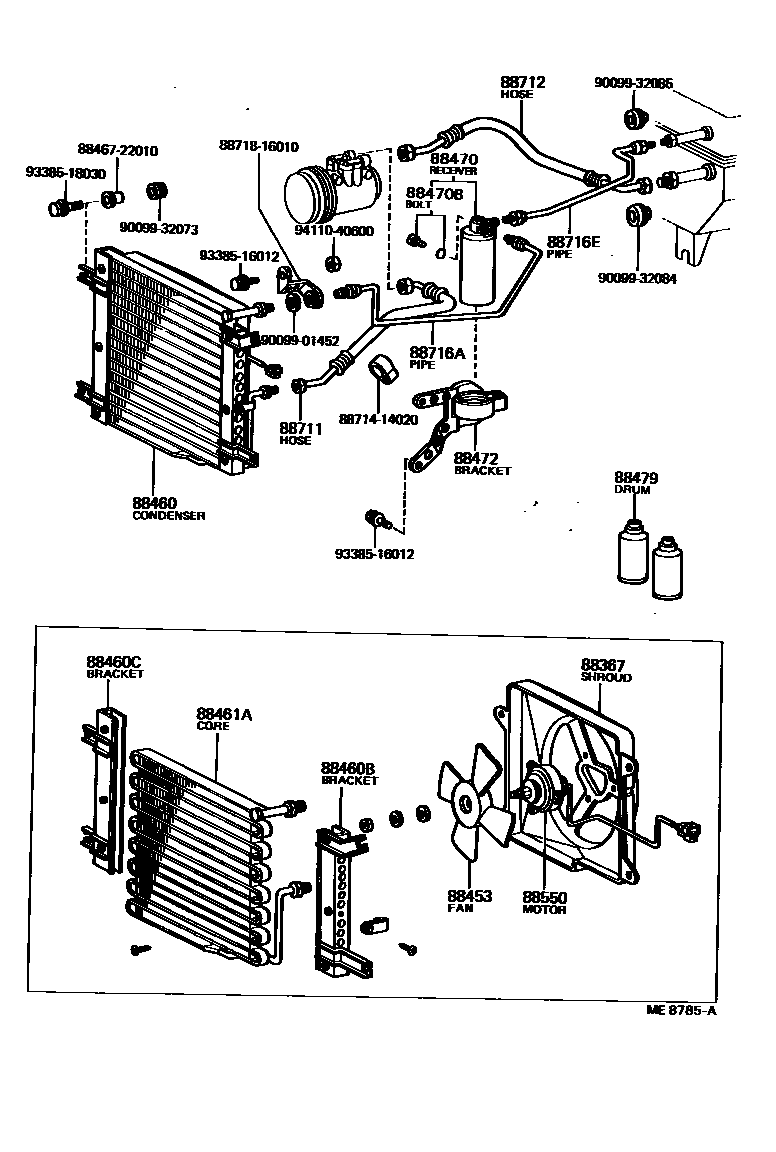

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

88367SHROUD, COOLER BLOWER FAN

main88454-16010iAL11..RHD197901-198008

main88454-16020iAL11..LHD..GEN197901-198008

main88454-16030iAL11..GEN198008-198204

88453FAN, COOLING (FOR CONDENSER)

main16361-28010iAL11..GEN198008-198204

main88453-16010iAL11..GEN197901-198008

sub11690-17702¥3,130

88460CONDENSER ASSY, COOLER

main88460-16010iAL11..RHD197901-198008

sub88460-16020

main88460-16020iAL11..LHD..GEN197901-198008

main88460-16021iAL11..GEN198008-198204

88460BBRACKET, COOLER CONDENSER, NO.1

main88463-16010iAL11..RHD197901-198008

main88463-16030iAL11..LHD..GEN197901-198008

main88463-16031iAL11..GEN198008-198204

88460CBRACKET, COOLER CONDENSER, NO.2

main88463-16020iAL11..RHD197901-198008

main88463-16040iAL11..LHD..GEN197901-198008

main88463-16041iAL11..GEN198008-198204

88461ACORE, COOLER CONDENSER

main88461-16010iAL11..RHD197901-198008

main88461-16020iAL11..LHD..GEN197901-198008

main88461-16031iAL11..GEN198008-198204

88470RECEIVER & DRYER ASSY, COOLER

main88471-16010iAL11..GEN¥7,100197901-198204

main88471-16020iAL11..RHD¥7,100198008-198204

sub88471-16010¥7,100

88470BBOLT, FUSE

main90099-04579iAL11197901-198204

sub88475-12020

88472BRACKET, RECEIVER TANK, NO.1

main88472-16010iAL11..RHD197901-198008

main88472-16011iAL11..RHD198008-198204

main88472-16020iAL11..LHD..GEN197901-198008

main88472-16021iAL11..LHD..GEN198008-198204

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iAL11..GEN197901-198204

400G

sub90986-02004

sub90986-02005

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-16020iAL11..GEN197901-198204

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-16010iAL11..GEN197901-198204

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-16010iAL11..RHD197901-198204

main88712-16020iAL11..LHD..GEN197901-198003

sub88712-16021

main88712-16021iAL11..LHD..GEN198003-198204

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-16010iAL11..RHD197901-198008

main88716-16060iAL11..LHD..GEN197901-198008

main88716-16101iAL11..LHD..GEN198008-198204

main88716-16120iAL11..RHD198008-198204

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-16020iAL11..RHD197901-198008

main88716-16021iAL11..RHD198008-198204

main88716-16050iAL11..LHD..GEN197901-198008

main88716-16110iAL11..LHD..GEN¥3,950198008-198204

8846722010CUSHION, COOLER CONDENSER, NO.1

main88467-22010

8871414020HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-14020

8871816010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16010

9009901452

main90099-01452

9009932073

main90099-32073

9009932084

main90099-32084

9009932085

main90099-32085

9338516012

main93385-16012¥70

9338518030

main93385-18030

9411040600

main94110-40600¥80

25 parts on this diagram · 4 diagrams in section
