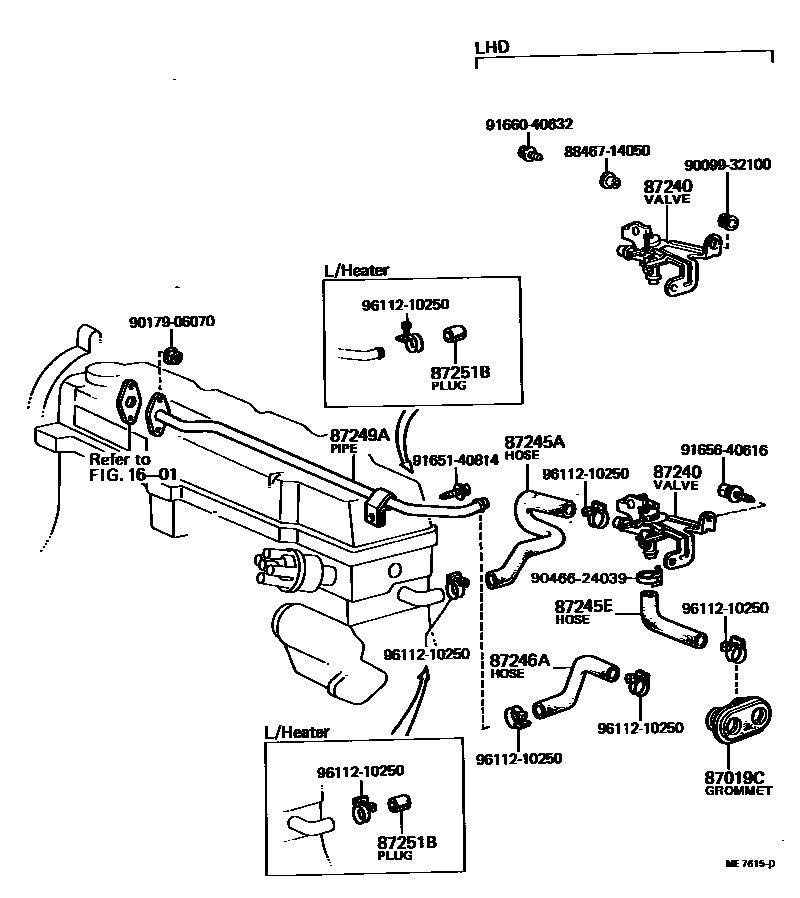

HEATING & AIR CONDITIONING - WATER PIPING

1601

87019CGROMMET, HEATER HOSE

main90480-01015iAL11..LHD197901-198204

main90480-01081iAL11..RHD197901-198204

87240VALVE ASSY, HEATER WATER

main87240-16010iAL11..RHD197901-198204

main87240-16020iAL11..LHD197901-198204

87245AHOSE, HEATER WATER, INLET A

main87245-16030iAL11..RHD197901-198204

main87245-16040iAL11..LHD197901-198204

87245EHOSE, HEATER WATER, INLET E

main87245-16020iAL11..RHD197901-198204

main87245-16050iAL11..LHD197901-198204

87246AHOSE, HEATER WATER, OUTLET A

main87245-16010iAL11..RHD197901-197908

main87245-16011iAL11..RHD197908-198204

main87245-16060iAL11..LHD197901-197908

sub87245-16061

main87245-16061iAL11..LHD197908-198204

87249APIPE, HEATER WATER OUTLET, A

main87208-16010iAL11197901-197908

main87208-16011iAL11197908-198204

87251BPLUG, HEATER WATER

main90339-16007iAL11197901-198204

W/BOOST VENTILATOR

sub90339-16001

8846714050CUSHION, COOLER CONDENSER, NO.1

main88467-14050

9009932100

main90099-32100

9017906070

main90179-06070

9046624039

main90466-24039

9165140814

main91651-40814

9165640616

main91656-40616

9166040632

main91660-40632

9611210250

main96112-10250

16 parts on this diagram · 1 diagram in section
