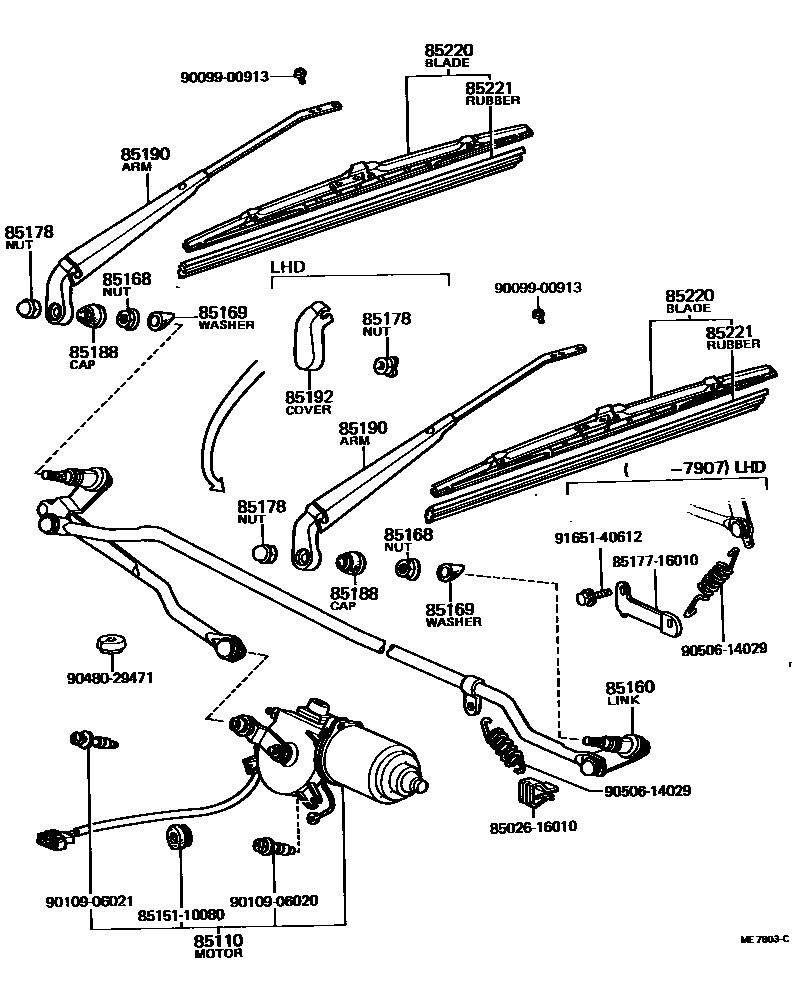

WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
RH
LH
LH
RH
85168NUT, WINDSHIELD WIPER LINK PIVOT
sub85186-12171
85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85188CAP, WINDSHIELD WIPER PIVOT, NO.1
85192COVER, WINDSHIELD WIPER ARM
8502616010
main85026-16010
8515110080BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER
main85151-10080
8517716010SHAFT, WINDSHIELD WIPER LINK
main85177-16010
9009900913
main90099-00913
9010906020
main90109-06020
9010906021
main90109-06021
9048029471
main90480-29471
9050614029
main90506-14029
9165140612
main91651-40612
19 parts on this diagram · 2 diagrams in section
