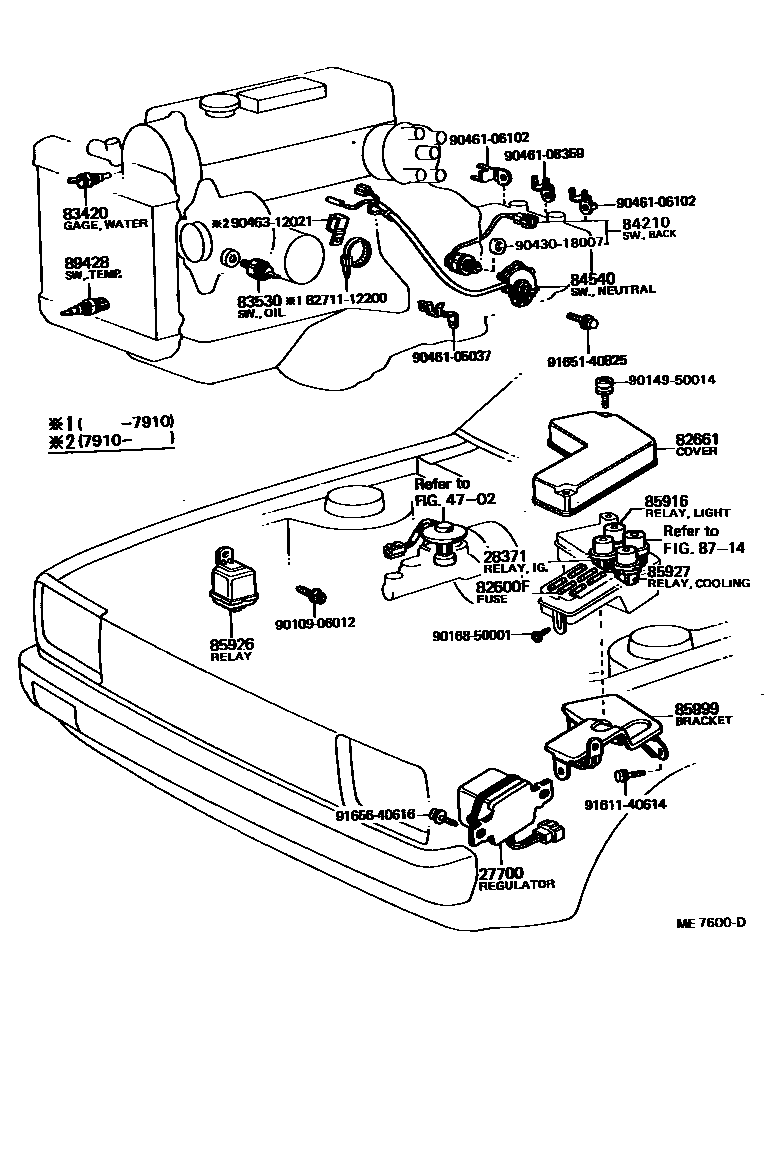

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

27700REGULATOR ASSY, GENERATOR

main27700-15010i2A..AL11197901-198008

sub27700-15011

main27700-15011i2A..AL11198008-198204

sub27700-15040

28371RELAY, IGNITION, NO.1

main90987-02001i2A..AL11197901-198007

sub90999-99089

main90987-02004i2A..AL11198007-198204

4702

82600FFUSE, FUSE BLOCK

main90982-07010iAL11..LHD198008-198204

7.5A

main99118-62005iAL11197901-198204

5A

main99118-62910iAL11197901-198204

10A

main99118-62915iAL11197901-198204

15A,15A

main99118-62920iAL11197901-198204

20A,20A

82661COVER, RELAY BLOCK, NO.1

main82661-16010iAL11..GEN197901-198204

main82661-16020iAL11..EUR197901-198204

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iAL11197901-198204

sub83420-20020

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iAL11197901-198204

DENSO

sub83530-14030

main83530-36011iAL11197901-198204

YAZAKI

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-16010iAL11..MTM197901-198204

84540SWITCH ASSY, NEUTRAL START

main84540-16010iAL11..3FC197908-198008

sub84540-16011

main84540-16011iAL11..3FC198008-198204

85916RELAY, LIGHT CONTROL

main90987-01001iAL11..GEN197901-198007

sub90999-99088

main90987-01003iAL11..GEN198007-198204

85926RELAY, HEADLAMP DIMMER

main85926-14010iAL11..EUR197901-198204

85927RELAY, COOLING FAN

main90987-03001iAL11197901-198204

85999BRACKET, COMBINATION RELAY

main85999-16010iAL11197901-198204

8714

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-15010iAL11197901-198008

main89428-15011iAL11198008-198204

sub89428-32010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9010906012

main90109-06012

9014950014

main90149-50014

9016850001

main90168-50001

9043018007

main90430-18007

9046105037

main90461-05037

9046106102

main90461-06102

9046108359

main90461-08359

9046312021

main90463-12021

9161140614

main91611-40614

9165140825

main91651-40825

9165640616

main91656-40616

27 parts on this diagram · 4 diagrams in section
