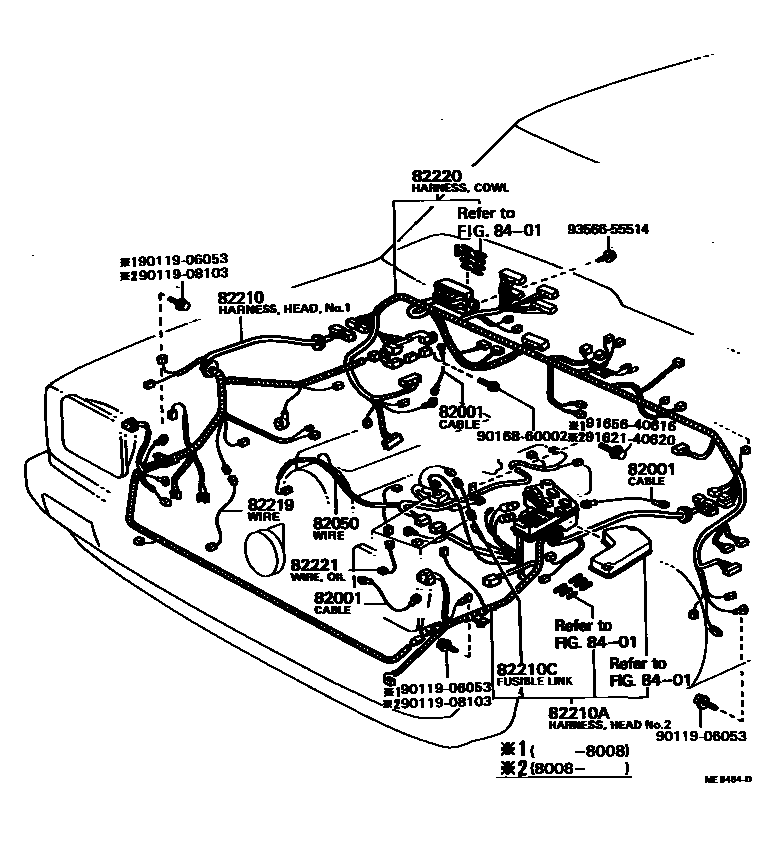

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1

82001CABLE, BOND, NO.1

main90980-07119iAL11197901-198204

L=320

main90980-07156iAL11197908-198008

L=280

main90980-07162iAL11197912-198003

L=300

sub82046-95J00

main90980-07173iAL11197908-198204

L=270

main90980-07178iAL11197912-198204

L=120

82050WIRE ASSY, ENGINE

main82050-16030iAL11..MTM197901-198008

main82050-16050iAL11..3FC197908-198008

main82050-16110iAL11..MTM198008-198204

main82050-16120iAL11..3FC198008-198204

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-16050iAL11..RHD197901-197908

main82210-16060iAL11..LHD..GEN197901-197908

main82210-16070iAL11..EUR197901-197908

main82210-16200iAL11..RHD197908-198008

main82210-16210iAL11..LHD..GEN197908-198008

main82210-16220iAL11..EUR197908-198008

main82230-16030iAL11..RHD198008-198204

main82230-16040iAL11..LHD..GEN198008-198204

main82230-16050iAL11..EUR198008-198204

82210AHARNESS ASSY, WIRING COWL TO HEADLAMP, NO.2

main82210-16080iAL11..RHD197901-198008

W/RELAY BLOCK

main82210-16090iAL11..LHD..GEN197901-198008

W/RELAY BLOCK

main82210-16100iAL11..EUR197901-198008

W/RELAY BLOCK

main82210-16250iAL11..RHD198008-198204

W/RELAY BLOCK

main82210-16260iAL11..LHD..GEN198008-198204

W/RELAY BLOCK

main82210-16270iAL11..EUR198008-198204

W/RELAY BLOCK

82210CFUSIBLE LINK

main90982-08077iAL11197901-198008

L=110

main90982-08120iAL11198008-198204

L=110

82219WIRE, THERMO SENSOR

main82219-16010iAL11197901-197908

82220HARNESS ASSY, WIRING COWL

main82220-16060iAL11..RHD197901-198008

main82220-16070iAL11..LHD..GEN197901-198008

main82220-16080iAL11..EUR197901-198008

main82220-16170iAL11..RHD198008-198204

main82220-16180iAL11..LHD..GEN198008-198204

main82220-16190iAL11..EUR198008-198204

82221WIRE, OIL PRESSURE SWITCH

main82221-16010iAL11197901-198204

8401

9011906053

main90119-06053

9011908103

main90119-08103

9016860002

main90168-60002

9162140620

main91621-40620

9165640616

main91656-40616

9356655514

main93566-55514

15 parts on this diagram · 4 diagrams in section
