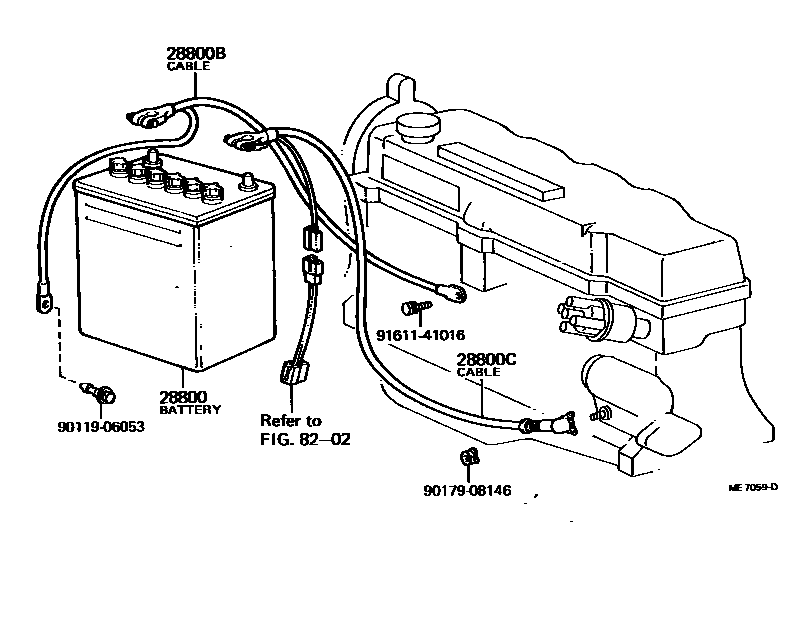

BATTERY & BATTERY CABLE

28800BATTERY

main28800-14010i2A..AL11..EUR198008-198204

55D23R,55D 23R

sub28800-15020

main28800-24030i2A..AL11..GEN197901-198204

34B19R,NS40ZA

sub28800-24040

main28800-33071i2A..AL11197901-198204

32C24R,N40

sub28800-33101

main28800-33111i2A..AL11..EUR197901-198008

55D26R,N50Z

sub28800-33120

28800BCABLE, BATTERY TO GROUND

main90982-02177i2A..AL11..GEN197901-198008

L=750

main90982-02182i2A..AL11197901-198008

L=660

main90982-02213i2A..AL11..GEN198008-198204

L=750

main90982-02214i2A..AL11198008-198204

L=660

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main90982-01257i2A..AL11..GEN197901-198008

L=470

main90982-01268i2A..AL11198008-198204

L=470

main90982-01288i2A..AL11197901-198008

L=550

main90982-01333i2A..AL11..GEN198008-198204

L=470

main90982-01381i2A..AL11..EUR198008-198204

L=550

8202

9011906053

main90119-06053

9017908146

main90179-08146

9161141016

main91611-41016

7 parts on this diagram · 1 diagram in section
