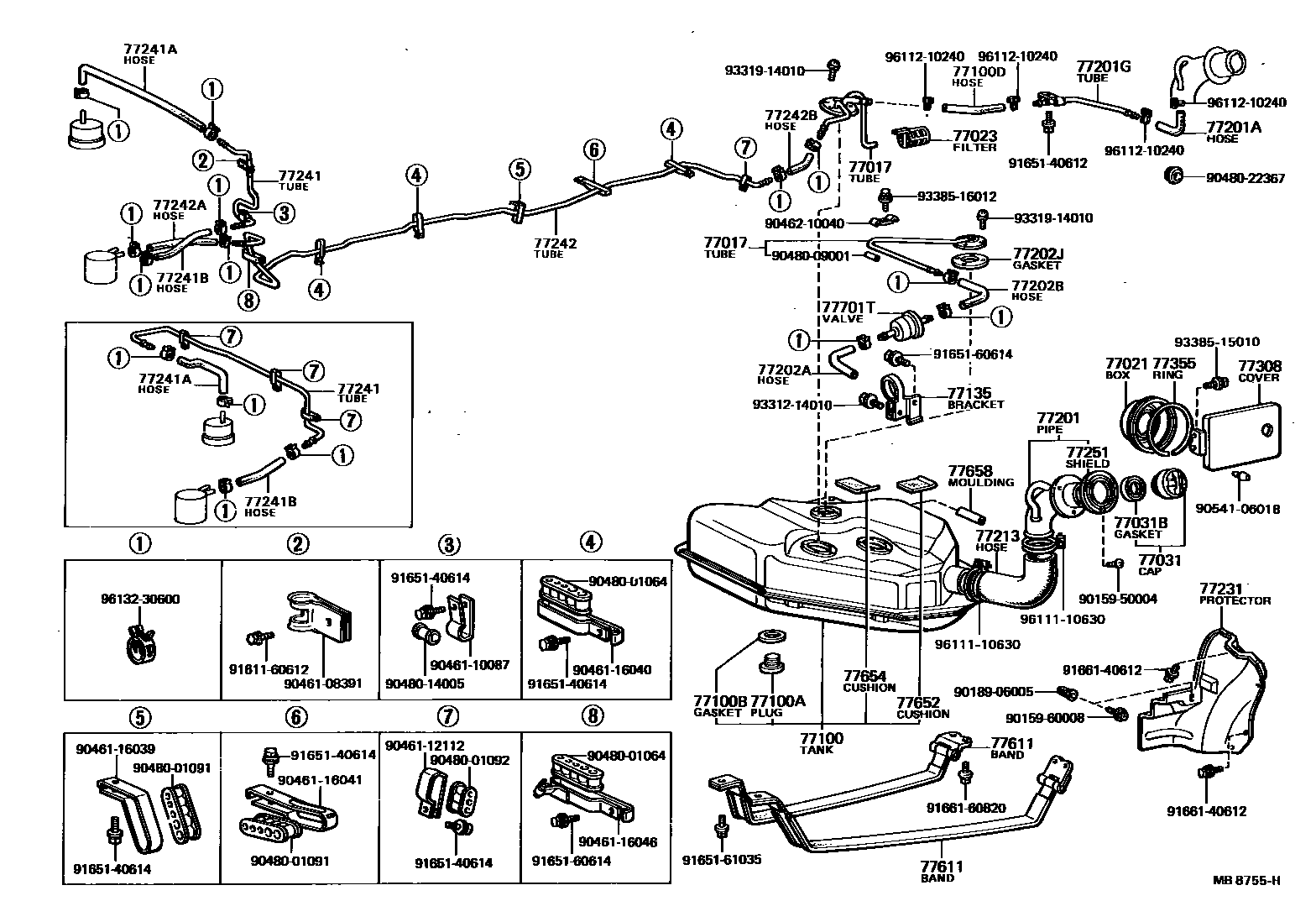

FUEL TANK & TUBE
77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
MAIN OR SUCTION TUBE
MAIN OR SUCTION TUBE
EMISSION TUBE
77021BOX ASSY, FUEL TANK INLET
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77031BGASKET (FOR FUEL TANK CAP)
77100TANK ASSY, FUEL
sub77001-19225
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
L=200
77135BRACKET, CHECK VALVE
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77201GTUBE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77202BHOSE, FUEL, NO.2 (FOR BREATHER TUBE)
77202JGASKET (FOR BREATHER TUBE)
77231PROTECTOR, INLET TUBE
77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
L=600(*H,L=440)
77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
*H,L=170
77242TUBE, FUEL MAIN, NO.2
sub77251-16020
77242AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
77242BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
77251SHIELD, FUEL TANK, INLET, NO.1
77308COVER SUB-ASSY, FUEL INLET BOX
77652CUSHION, FUEL TANK, NO.1
77654CUSHION, FUEL TANK, NO.2
120X135
77658MOULDING, FUEL TANK EDGE
77701TVALVE, CHECK (FOR MAIN FUEL TANK)
9015950004
main90159-50004
9015960008
main90159-60008
9018906005
main90189-06005
9046108391
main90461-08391
9046110087
main90461-10087
9046112112
main90461-12112
9046116039
main90461-16039
9046116040
main90461-16040
9046116041
main90461-16041
9046116046
main90461-16046
9046210040
main90462-10040
9048001064
main90480-01064
9048001091
main90480-01091
9048001092
main90480-01092
9048009001
main90480-09001
9048014005
main90480-14005
9048022367
main90480-22367
9054106018
main90541-06018
9161160612
main91611-60612
9165140612
main91651-40612
9165140614
main91651-40614
9165160614
main91651-60614
9165161035
main91651-61035
9166140612
main91661-40612
9166160820
main91661-60820
9331214010
main93312-14010
9331914010
main93319-14010
9338515010
main93385-15010
9338516012
main93385-16012
9611110630
main96111-10630
9611210240
main96112-10240
9613230600
main96132-30600
64 parts on this diagram · 1 diagram in section
