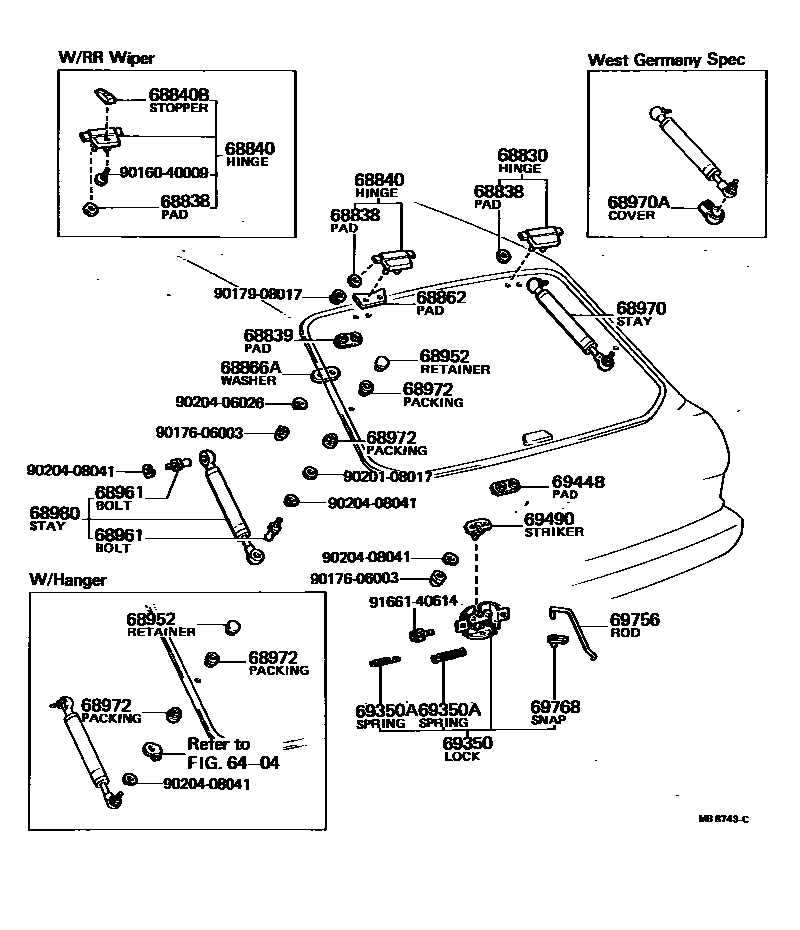

BACK DOOR LOCK & HANDLE
6404
68830HINGE ASSY, BACK DOOR, RH
BLACK PAINTED TYPE
68838PAD, BACK DOOR HINGE, NO.1
68839PAD, BACK DOOR HINGE, NO.2
68840HINGE ASSY, BACK DOOR, LH
W/RR WIPER,BLACK PAINTED
W/RR WIPER
W/RR WIPER
BLACK PAINTED
68840BSTOPPER SUB-ASSY, WIPER BLADE
W/RR WIPER
W/RR WIPER
68862PAD, BACK DOOR HINGE
RH
RH
LH
LH
68866AWASHER, BACK DOOR HINGE
68952RETAINER, BACK DOOR STAY
68961BOLT, BACK DOOR STAY
sub68961-12010
68970STAY ASSY, BACK DOOR, RH
KAYABA
TOKIKO
WEST GERMANY SPEC
68970ACOVER, BACK DOOR STAY
WEST GERMANY SPEC
68972PACKING, BACK DOOR STAY
OUTER
INNER
68980STAY ASSY, BACK DOOR
KAYABA
TOKIKO
WEST GERMANY SPEC
69350LOCK ASSY, BACK DOOR
69350ASPRING(FOR BACK DOOR LOCK)
L=33.5
L=25.6
69448PAD, BACK DOOR LOCK STRIKER
69490STRIKER ASSY, BACK DOOR LOCK
69756ROD, BACK DOOR LOCKING CONTROL PUSH
69768SNAP, BACK DOOR LOCK CONTROL LINK
9016040009
main90160-40009
9017606003
main90176-06003
9017606903
main90176-06903
9017908017
main90179-08017
9020108017
main90201-08017
9020406026
main90204-06026
9020408041
main90204-08041
9166140614
main91661-40614
28 parts on this diagram · 1 diagram in section
