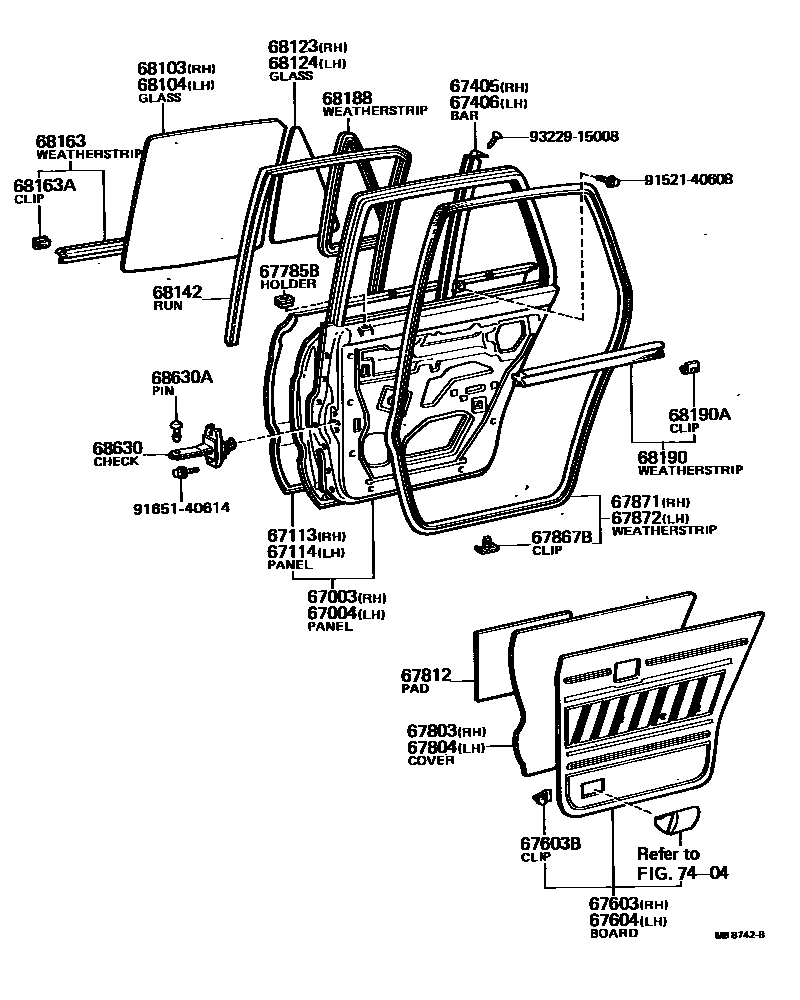

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
sub67113-16020
67114PANEL, REAR DOOR, OUTER LH
sub67114-16020
67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
67603BCLIP(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
sub67841-16040
67812PAD, REAR DOOR SILENCER
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5
*TEM,T=3.5
68123GLASS, REAR DOOR WINDOW, RH
*TT,T=3.5
68124GLASS, REAR DOOR WINDOW, LH
*TT,T=3.5
*TEM,T=3.5
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
RH
LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
RH
LH
68190ACLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
68630CHECK ASSY, REAR DOOR
68630APIN(FOR REAR DOOR CHECK)
7404
9152140608
9165140614
9322915008
32 parts on this diagram · 1 diagram in section
