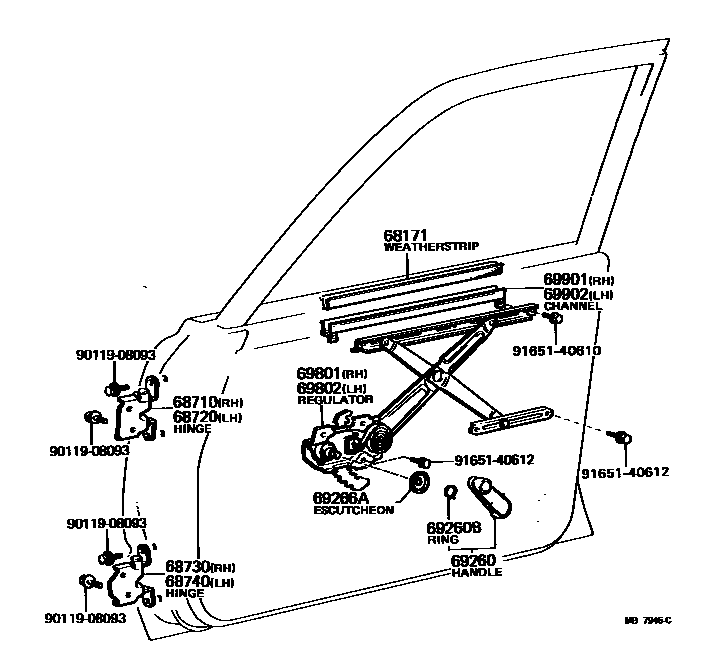

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68173-22010iAL11197901-198204

sub69971-95110

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14020iAL11197901-198204

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14020iAL11197901-198204

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14020iAL11197901-198204

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14020iAL11197901-198204

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-01iAL11197901-198204

BLACK,BLACK,TRIM2#

sub69260-10040

sub69260-16010

main69260-10040-04iAL11197901-198204

BLUE,BLUE,TRIM8#

sub69260-10040

sub69260-16010

main69260-10040-05iAL11197901-198008

BEIGE,BEIGE,TRIM4#

sub69260-10040

sub69260-16010

main69260-10040-36iAL11198008-198204

LIGHT BROWN,BROWN,TRIM4#

sub69260-10040

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAL11198008-198204

sub90520-01274

main90520-01274iAL11197901-198008

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69285-22010iAL11197902-198204

main69285-22010-01iAL11197901-197902

BLACK,BLACK,TRIM2#

sub69285-22010

main69285-22010-04iAL11197901-197902

BLUE,BLUE,TRIM8#

sub69285-22010

main69285-22010-05iAL11197901-197902

BEIGE,BEIGE,TRIM4#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-16010iAL11197901-198204

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-16010iAL11197901-198204

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12080iAL11197901-198204

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-12080iAL11197901-198204

9011908093

main90119-08093

9165140610

main91651-40610

9165140612

main91651-40612

15 parts on this diagram · 1 diagram in section
