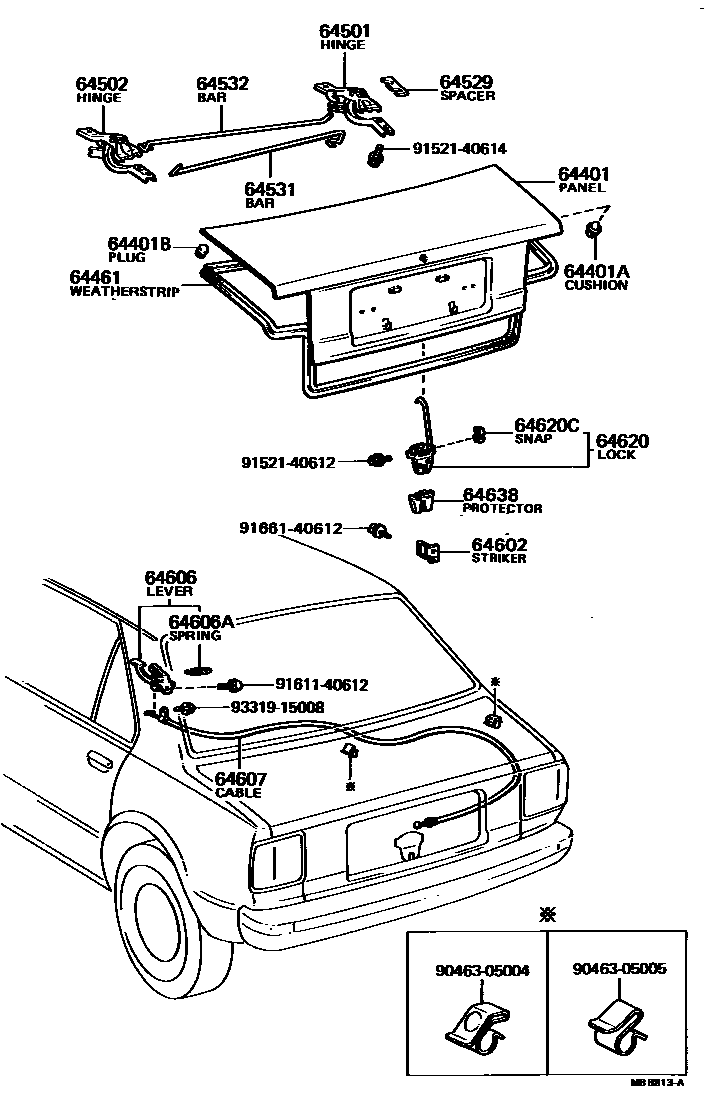

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-16030iAL11..2DS,4DS197901-198204

sub64401-16011

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09007iAL11..2DS,4DS197901-198204

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90950-01058iAL11..2DS,4DS197901-198204

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-16030iAL11..2DS,4DS197901-198204

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-16010iAL11..2DS,4DS197901-198204

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-16010iAL11..2DS,4DS197901-198204

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-22010iAL11..2DS,4DS197901-198204

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-16010iAL11..2DS,4DS197901-198204

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-16010iAL11..2DS,4DS197901-198204

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-16010iAL11..2DS,4DS197901-198204

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-16010iAL11..(2DS,4DS)..RHD..DLX197901-198204

main64606-16020iAL11..(2DS,4DS)..LHD..DLX197901-198204

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iAL11..(2DS,4DS)..DLX197901-198204

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-16020iAL11..(2DS,4DS)..RHD..DLX197901-198204

main64607-16050iAL11..(2DS,4DS)..LHD..DLX197901-198204

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-16010iAL11..2DS,4DS197901-198204

64620CSNAP, LUGGAGE COMPARTMENT DOOR LOCK

main69759-12030iAL11..2DS,4DS197901-198204

64638PROTECTOR, LUGGAGE COMPARTMENT DOOR LINK

main64631-16010iAL11..(2DS,4DS)..LHD198008-198204

9046305004

main90463-05004

9046305005

main90463-05005

9152140612

main91521-40612

9152140614

main91521-40614

9161140612

main91611-40612

9166140612

main91661-40612

9331915008

main93319-15008

23 parts on this diagram · 1 diagram in section
