FLOOR MAT

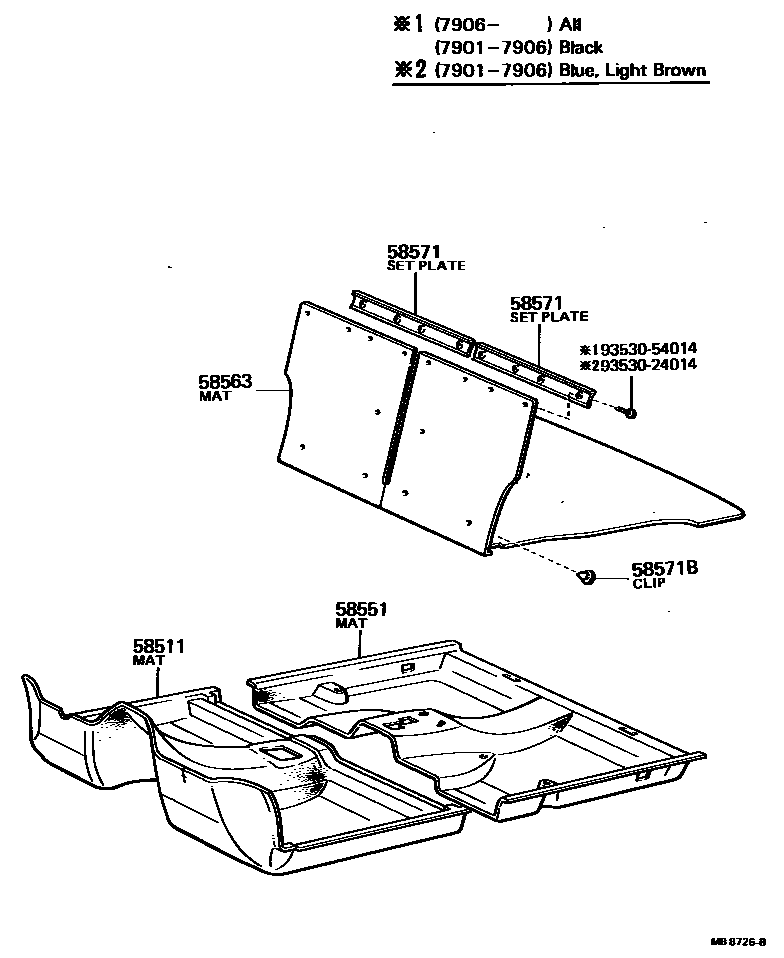

Parts diagram
58511MAT, FLOOR, FRONT
main58510-16050-01i197901-198008
BLACK,BLACK,TRIM2#
main58510-16050-04i197901-198008
BLUE,BLUE,TRIM8#
main58510-16050-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main58510-16090-01i197901-198110
BLACK,BLACK,TRIM2#
main58510-16090-04i197901-198110
BLUE,BLUE,TRIM8#
main58510-16090-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main58510-16090-16i198008-198110
LIGHT BROWN,BROWN,TRIM4#
main58510-16091-01i198110-198204
BLACK,BLACK,TRIM2#
main58510-16091-04i198110-198204
BLUE,BLUE,TRIM8#
main58510-16091-06i198110-198204
LIGHT BROWN,BROWN,TRIM4#
main58510-16100-01i197901-198108
W/HEATER RR DUCT,BLACK,BLACK,TRIM2#
main58510-16100-04i197901-198108
W/HEATER RR DUCT,BLUE,BLUE,TRIM8#
main58510-16100-06i197901-198008
W/HEATER RR DUCT,LIGHT BROWN,BROWN,TRIM4#
main58510-16100-16i198008-198108
W/HEATER RR DUCT,LIGHT BROWN,BROWN,TRIM4#
58551MAT, FLOOR, REAR
main58540-16060-01i197901-198008
W/SEAT BELT,BLACK,BLACK,TRIM2#
main58540-16060-04i197901-198008
W/SEAT BELT,BLUE,BLUE,TRIM8#
main58540-16060-06i197901-198008
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main58540-16070-01i197901-198204
BLACK,BLACK,TRIM2#
main58540-16070-04i197901-198204
BLUE,BLUE,TRIM8#
main58540-16070-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main58540-16070-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
main58540-16080-01i197901-198008
BLACK,BLACK,TRIM2#
main58540-16080-04i198008-198204
W/SEAT BELT,BLUE,BLUE,TRIM8#
main58540-16080-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main58540-16080-16i198008-198204
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main58540-16090-01i197901-198008
BLACK,BLACK,TRIM2#
main58540-16090-04i197901-198008
BLUE,BLUE,TRIM8#
main58540-16090-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main58540-16100-01i197901-198204
W/O SEAT BELT,BLACK,BLACK,TRIM2#
main58540-16100-04i197901-198204
W/O SEAT BELT,BLUE,BLUE,TRIM8#
main58540-16100-06i197901-198008
W/O SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main58540-16100-16i198008-198204
W/O SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main58540-16110-01i197901-198008
W/SEAT BELT,BLACK,BLACK,TRIM2#
main58540-16110-04i197901-198008
W/SEAT BELT,BLUE,BLUE,TRIM8#
main58540-16110-06i197901-198008
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
58563MAT, REAR FLOOR
main58581-16010-01i197901-197909
BLACK,BLACK,TRIM2#
main58581-16010-04i197901-197909
BLUE,BLUE,TRIM8#
main58581-16010-06i197901-197909
LIGHT BROWN,BROWN,TRIM4#
main58581-16011-01i197909-198204
BLACK,BLACK,TRIM2#
main58581-16011-04i197909-198204
BLUE,BLUE,TRIM8#
main58581-16011-06i197909-198008
LIGHT BROWN,BROWN,TRIM4#
main58581-16011-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
58571SET PLATE, REAR FLOOR MAT, FRONT
main58583-16010-01×2i197901-198204
BLACK,BLACK,TRIM2#
main58583-16010-04×2i197901-198204
BLUE,BLUE,TRIM8#
main58583-16010-06×2i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main58583-16010-16×2i198008-198204
LIGHT BROWN,BROWN,TRIM4#
58571BCLIP, REAR FLOOR MAT SET
main90467-09004-01×11i197901-198204
BLACK,BLACK,TRIM2#
main90467-09004-04×11i197901-198204
BLUE,BLUE,TRIM8#
main90467-09004-06×11i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main90467-09004-16×11i198008-198204
LIGHT BROWN,BROWN,TRIM4#
9353024014
main93530-24014
9353054014
main93530-54014

7 parts on this diagram · 1 diagram in section
