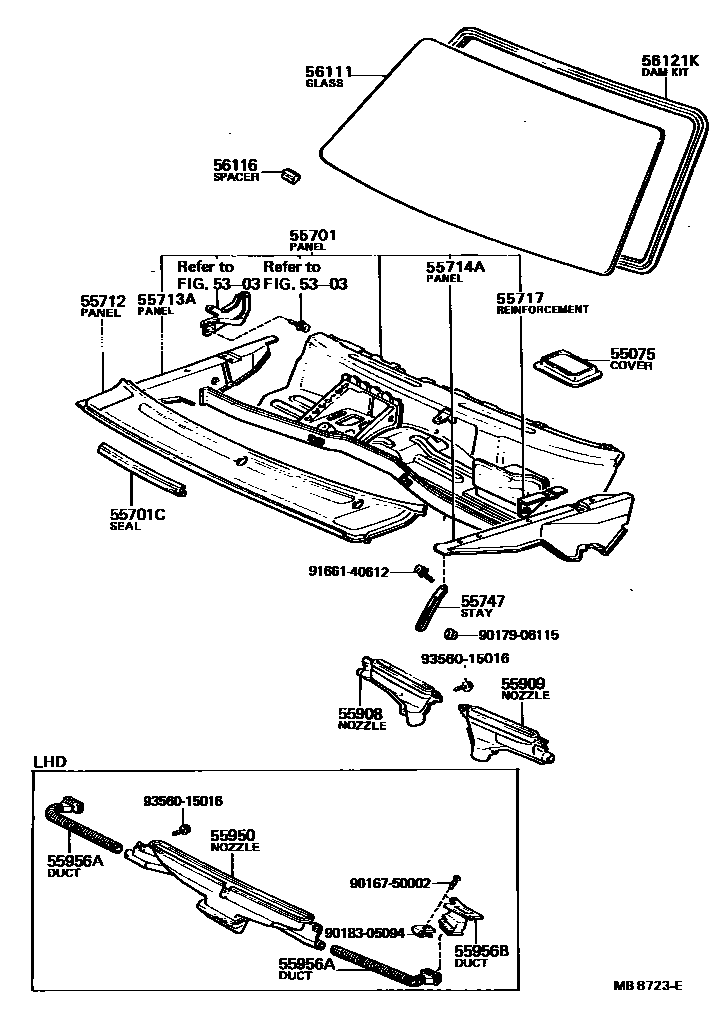

COWL PANEL & WINDSHIELD GLASS
5303
55075COVER SUB-ASSY, HEATER AIR DUCT HOLE
55701PANEL SUB-ASSY, COWL
55712PANEL, COWL TOP OUTSIDE, FRONT
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55717REINFORCEMENT, COWL TOP OUTSIDE
RH
LH
55747STAY, COWL TOP, INNER
55950NOZZLE ASSY, DEFROSTER
55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1
RH
LH
55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2
56111GLASS, WINDSHIELD
*TL,T=5.3
56116SPACER, WINDSHIELD GLASS
56121KDAM KIT, WINDSHIELD GLASS
sub04562-30040
9016750002
main90167-50002
9017906115
main90179-06115
9018305094
main90183-05094
9166140612
main91661-40612
9356015016
main93560-15016
22 parts on this diagram · 2 diagrams in section
