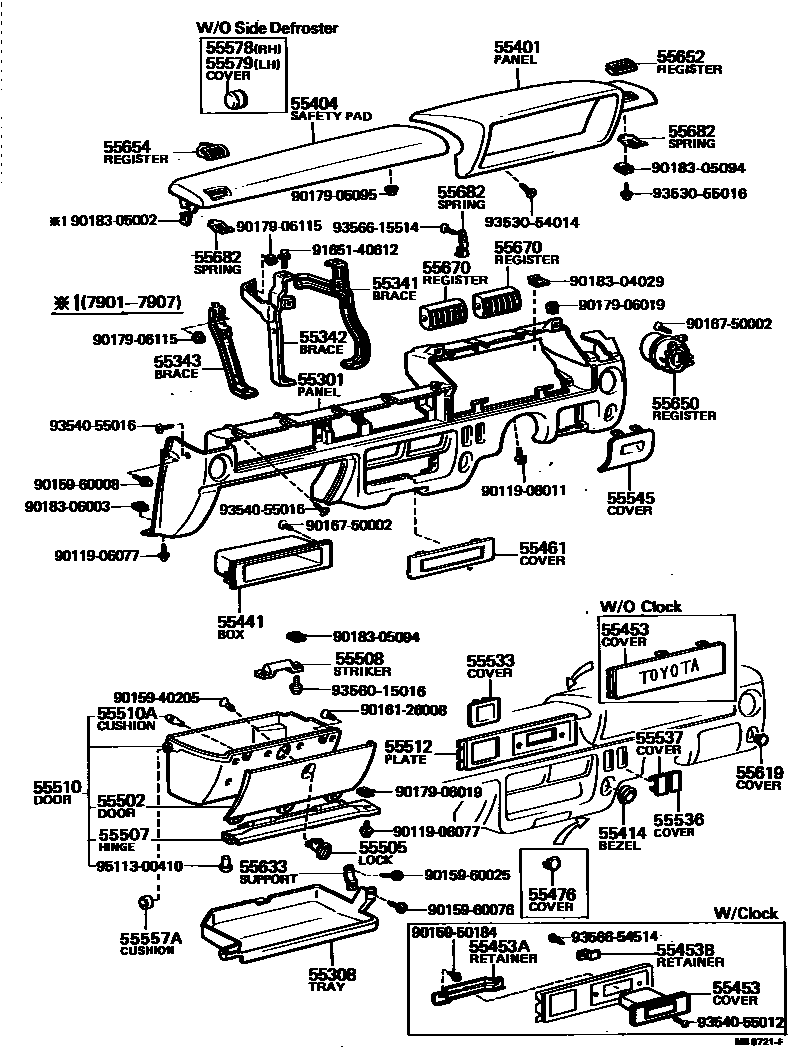

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
LIGHT BROWN,BROWN,TRIM4#
55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55341BRACE, INSTRUMENT PANEL, NO.1
55342BRACE, INSTRUMENT PANEL, NO.2
55343BRACE, INSTRUMENT PANEL, NO.3
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
55414BEZEL, CIGAR LIGHTER HOLE
55441BOX, INSTRUMENT PANEL
55453COVER, RADIO TUNER OPENING
W/CLOCK
55453ARETAINER, RADIO TUNER OPENING, NO.1
55453BRETAINER, RADIO TUNER OPENING, NO.2
55461COVER, HEATER CONTROL HOLE
55476COVER, CIGARETTE LIGHTER HOLE
55502DOOR SUB-ASSY, GLOVE COMPARTMENT, OUTER
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
55508STRIKER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK
55510DOOR ASSY, GLOVE COMPARTMENT
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55512PLATE, RADIO TUNER FINISH
W/RADIO
55533COVER, AUTO CLOCK HOLE
55536COVER, REAR WINDOW WIPER SWITCH HOLE
55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE
55545COVER, FUSE BOX OPENING
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
55578COVER, SIDE DEFROSTER OPENING, RH
55579COVER, SIDE DEFROSTER OPENING, LH
55619COVER, SWITCH HOLE
WEST GERMANY SPEC,LIGHT BROWN,BROWN,TRIM4#
55633SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
WEST GERMANY SPEC
55652REGISTER, INSTRUMENT PANEL, NO.2
55654REGISTER, INSTRUMENT PANEL, NO.4
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT
NO.2 & NO.4 REGISTER
CTR
9011906077
9011908011
main90119-08011
9015940205
9015950184
9015960008
9015960025
9015960076
9016126008
9016750002
9017905095
9017906019
9017906115
9018304029
9018305002
9018305094
9018306003
9165140612
9353054014
9353055016
9354055012
9354055016
9356015016
9356615514
9356654514
9511300410
main95113-00410
60 parts on this diagram · 2 diagrams in section
