FLOOR SIDE MEMBER
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
W/*ELR,GALVANIZED IRON
GALVANIZED IRON
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
W/*ELR,GALVANIZED IRON
GALVANIZED IRON
9011910105
main90119-10105
9011912011
main90119-12011
9095001060
main90950-01060
9095001088
main90950-01088
9095001232
main90950-01232
9095001244
main90950-01244
9095001247
main90950-01247
9095001258
main90950-01258
9095001327
main90950-01327
9095006007
main90950-06007
9165140816
main91651-40816

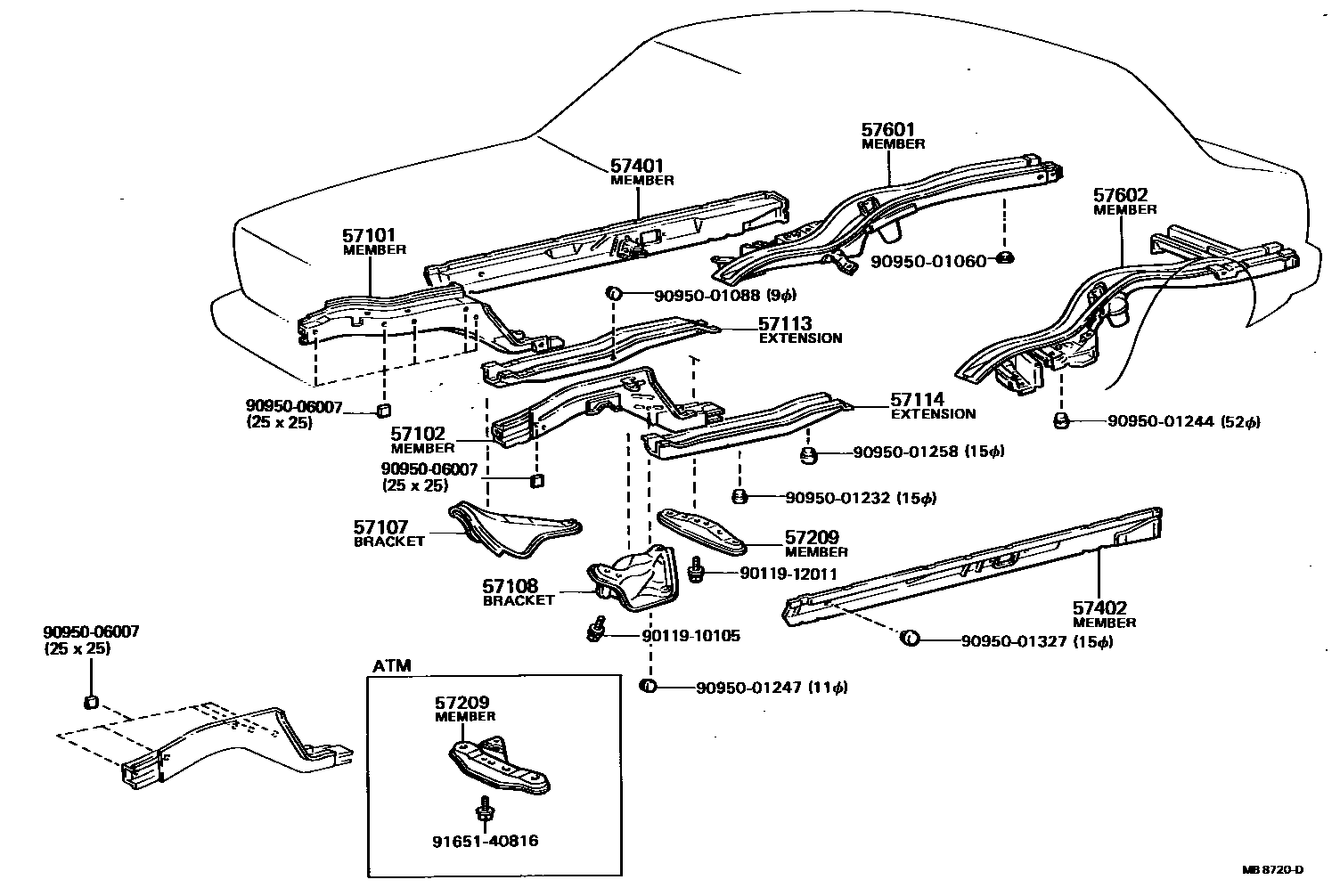

22 parts on this diagram · 1 diagram in section
